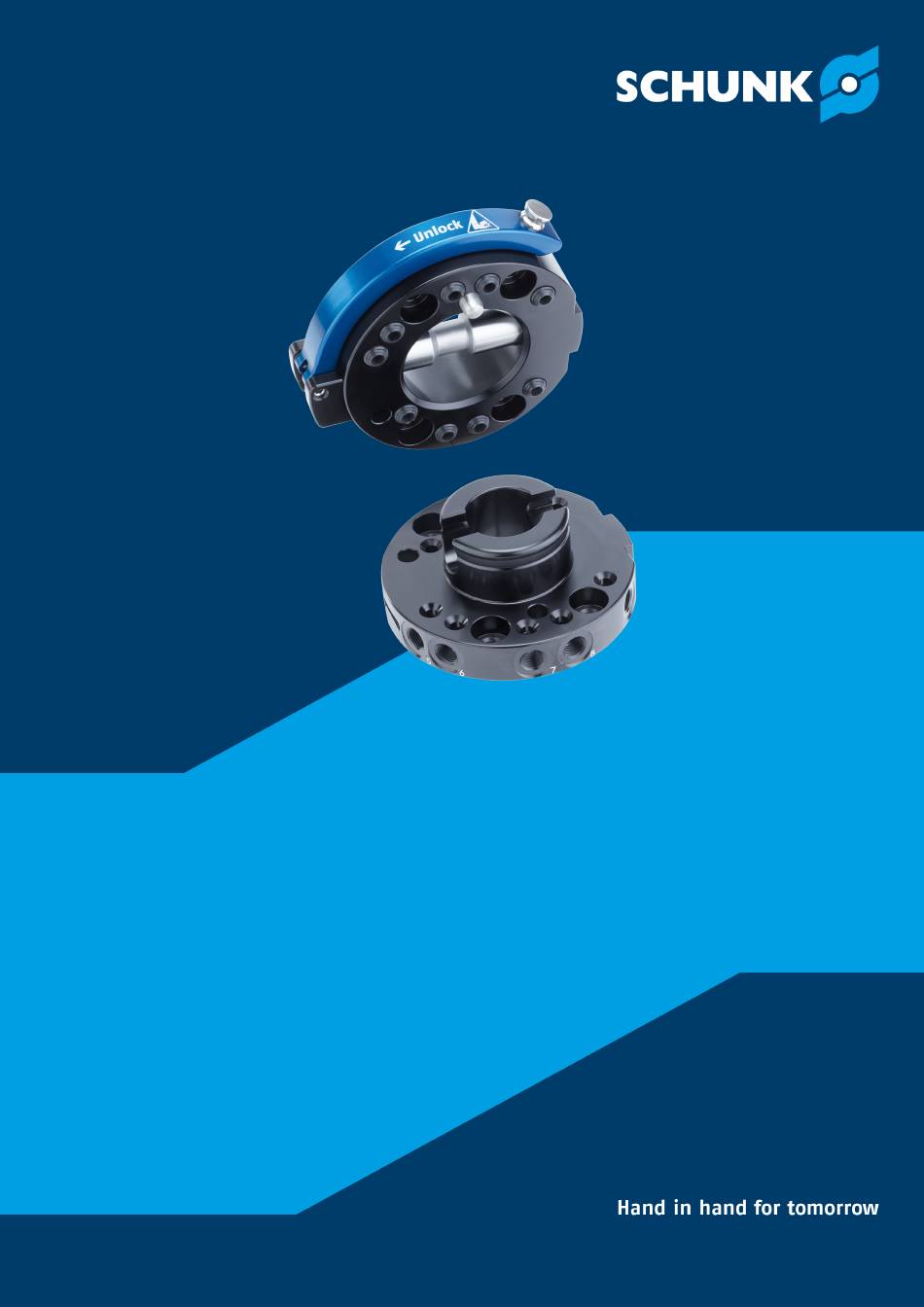

- Page 1 Assembly and Operating Manual SHS Manual changing system Translation of the original manual...
- Page 2 Imprint Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Technical changes: We reserve the right to make alterations for the purpose of technical improvement. Document number: 1002529 Version: 06.00 | 31/03/2023 | en...
-
Page 3: Table Of Contents
5.2 Mounting option for electrical option moduls..........17 5.3 Mounting the sensor................17 5.3.1 Overview of sensors ..............18 5.3.2 Mounting inductive proximity switch IN 5 / IN 40 ......18 6 Operation ................... 21 06.00 | SHS | Assembly and Operating Manual | en | 1002529... - Page 4 Table of contents 7 Maintenance ..................23 7.1 Notes....................23 7.2 Maintenance intervals................23 7.3 Lubricants/Lubrication points..............23 7.4 Spare and wearing parts............... 23 06.00 | SHS | Assembly and Operating Manual | en | 1002529...
-
Page 5: General
Dangers for persons! Non-observance can lead to irreversible injury and even death. CAUTION Dangers for persons! Non-observance can cause minor injuries. NOTICE Material damage! Information about avoiding material damage. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 6: Applicable Documents
Accessory kit – Locking screws for radial air feed-throughs – O-rings for axial feed-through – Sensor bracket (SHS 100, SHS 125) – Clamping bracket (SHS 100, SHS 125) 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 7: Basic Safety Notes
Improper connection between SHK and SHA Outdoor use Use in potentially explosive atmospheres Any utilization that exceeds or differs from the appropriate use is regarded as misuse. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 8: Constructional Changes
Due to their technical training, knowledge and experience, trained electricians are able to work on electrical systems, recognize and avoid possible dangers and know the relevant standards and regulations. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 9: Personal Protective Equipment
Do not expose the product to any corrosive media. This does not apply to products that are designed for special environ- ments. Eliminate any malfunction immediately. Observe the care and maintenance instructions. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 10: Transport
2.12 Fundamental dangers General Observe safety distances. Never deactivate safety devices. Before commissioning the product, take appropriate protective measures to secure the danger zone. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 11: Protection During Handling And Assembly
Falling and violently ejected components can cause serious injuries and even death. Take appropriate protective measures to secure the danger zone. Never step into the danger zone during operation. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 12: Notes On Particular Risks
Danger of crushing due to falling objects! When transporting, assembling, disassembling and servicing, the product may fall down if the position changes unintentionally and result in serious injury. Wear suitable protective equipment. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... - Page 13 The contact of grease / oil with skin or eyes can lead to inflammation and allergic reactions. Avoid skin contact with lubricants Wear safety goggles and protective gloves. Wash hands thoroughly after contact with grease. 06.00 | SHS | Assembly and Operating Manual | en | 1002529...
-
Page 14: Technical Data
Distance from the center of gravity [mm] Max. acceleration [m/s Loading capacity [kg] (At the above values) More technical data is included in the catalog data sheet. Whichever is the latest version. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 15: Design And Description
The lock bolt, which is operated using the hand lever, connects the SHK and SHA quickly, form-fitting and free from clearance. An integrated pneumatic feed-through safely supplies the tool with compressed air. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 16: Assembly
Ø63 mm, countersink M6 (4x), DIN 74 shape K Ø80 mm, countersink M8 (4x), DIN 74 shape K Ø100 mm, countersink M8 (4x), DIN 74 shape K Ø125 mm, countersink M10 (6x), DIN 74 shape K 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 17: Mounting Option For Electrical Option Moduls
Information on handling sensors is available at schunk.com or from SCHUNK contact persons. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... -
Page 18: Overview Of Sensors
5.3.2 Mounting inductive proximity switch IN 5 / IN 40 IN5-S-... Mounting inductive proximity switch IN 5 to SHS 040 and SHS 050 IN5-S-... Mounting inductive proximity switch IN 5 to SHS 063 and SHS 080 06.00 | SHS | Assembly and Operating Manual | en | 1002529... - Page 19 Mounting inductive proximity switch IN 5 Insert the clamping bracket (1) into the groove. Slide the sensor (2) up to the stop in the groove. Tighten the set-screw (3). ð Max. tightening torque: 0.2 Nm 06.00 | SHS | Assembly and Operating Manual | en | 1002529...
- Page 20 Slide the sensor (4) into the sensor bracket (5) up to the stop. Slide the sensor bracket (5) up to the stop in the groove. Fasten the sensor bracket (5) using the set-screw (6). 06.00 | SHS | Assembly and Operating Manual | en | 1002529...
-
Page 21: Operation
Pull the suspended bolt on the hand lever. Turn the hand lever 180° until it stops (unlock). ð SHK and SHA can be pulled apart in the axial direction. 06.00 | SHS | Assembly and Operating Manual | en | 1002529... - Page 22 ð Locking is effective. NOTE The amount of force required to lock the unit may be higher for the first few locking cycles until the seals are seated. 06.00 | SHS | Assembly and Operating Manual | en | 1002529...
- Page 23 7.4 Spare and wearing parts The following figure is an example image. It serves for illustration and assignment of the spare parts. Variations are possible depending on size and variant. 06.00 | SHS | Assembly and Operating Manual | en | 1002529...
- Page 24 Sensor bracket bracket Ident number – – – – 1360869 1360873 Description – – – – Clamping Clamping bracket bracket Ident number – – – – 1414406 1414406 06.00 | SHS | Assembly and Operating Manual | en | 1002529...
- Page 25 06.00 | SHS | Assembly and Operating Manual | | 1002529...
- Page 26 06.00 | SHS | Assembly and Operating Manual | | 1002529...
- Page 27 06.00 | SHS | Assembly and Operating Manual | | 1002529...
- Page 28 SCHUNK GmbH & Co. KG Clamping and gripping technology Bahnhofstr. 106 - 134 D-74348 Lauffen/Neckar Tel. +49-7133-103-0 Fax +49-7133-103-2399 info@de.schunk.com schunk.com Folgen Sie uns I Follow us Wir drucken nachhaltig I We print sustainable...
