Associated Electrics RC8B4.1e Team Kit Manual page 7

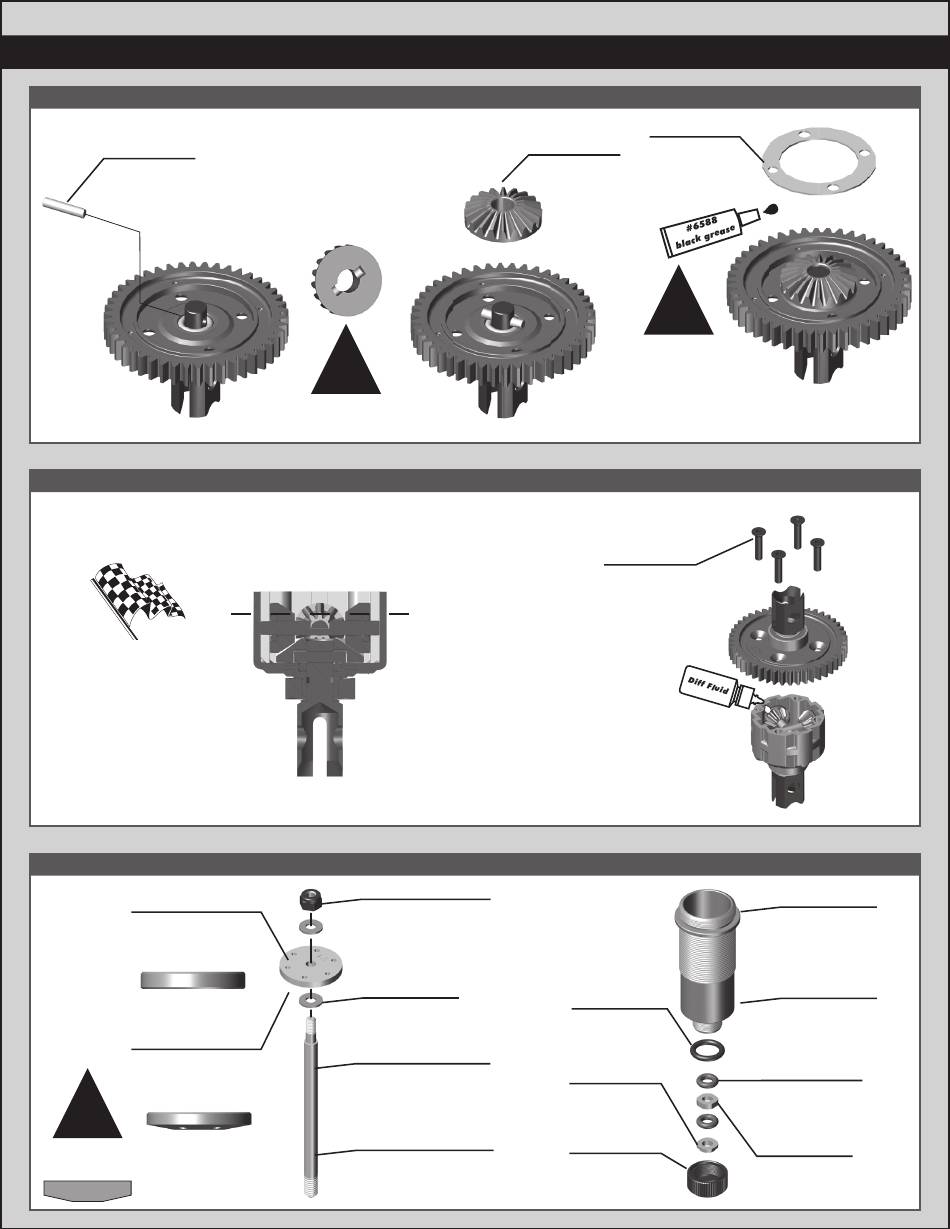

:: Differential Build :: Differential Build (Center)
81380
Pin
2.5x12mm
:: Differential Build :: Differential Build (Center)
Racer's Tip:
Fill diff above the cross
pins, below the planet
gears as shown.
:: Shocks Build :: Shocks Build - - Bag 2.1 Bag 2.1 - Step 1
81597
FT Shock Piston
(6x1.4 flat)
Front
81598
FT Shock Piston
(6x1.5 tapered)
Rear
!
Install pistons
taper down
(Center) - Bag - Bag 1.1, 1.2 1.1, 1.2 - Step 7
!
Align pin with
groove in sun gear
(Center) - Bag - Bag 1.1, 1.2 1.1, 1.2 - Step 8
- Step 1
89215
2.5mm Shock
Piston Locknut
89278
2.6x6mm
Washer
81172
TiN Shock Shaft,
3.5x33.5mm
(Front)
81173
TiN Shock Shaft,
3.5x42.5mm
(Rear)
- Step 7
81380
Diff Sun
Gear, 20T,
HTC
Use black grease
(#6588) to coat
the back side of the
diff gasket (i.e. not
the entire gasket)
before installation!
- Step 8
25202
3x10mm
FHCS
Center Diff Fluid:
10,000cst #5455
x2 x2
81185
Shock Body
O-Ring
81185
O-Ring Hat
Bushing
81188
Shock Body
Seal
Retainer
81384
Diff
Gasket
!
Racer's Tip:
x4 x4
81162
Shock Body,
26.5mm
(Front)
81163
Shock Body,
36.5mm
(Rear)
81186
Shock
O-Ring
81185
O-Ring
Spacer
7
x2 x2
