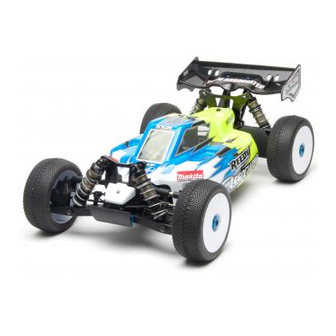

Associated Electrics RC8.2e Owner's Manual

Factory team, 1/8 scale racing buggy
Hide thumbs Also See for RC8.2e:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC8.2e and is the answer not in the manual?

Questions and answers

Related Manuals for Associated Electrics RC8.2e

Summary of Contents for Associated Electrics RC8.2e

  • Page 2 Thank you for purchasing this Team Associated product. This manual contains instructions and tips for building and maintaining your new RC8.2e Factory Team, 1/8 scale racing buggy. Please take a moment to read through it an familiarize yourself with these steps as they will help you to understand each component’s function and show you some tips for getting the most out of your RC8.2e Factory Team build experience.
  • Page 3 Each part in the foldout This symbols indicates a has a number assigned to it for ordering special note or instruction replacement parts. in the manual. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 4 :: Chassis Assembly - Bag A & AA 89552 RC8.2 side guards Note: cut fuel tubing brace off of the left side guard. 89476 25201 FT RC8B 3x8mm +3mm fhcs chassis :: Chassis Assembly (cont.) - Bag A & AA 89485 RC8B aluminum...
  • Page 5 :: Steering Assembly (cont.)- Bag B 89242 25215 Steering drag link locknut 89526 89074 50mm steel 89077 Steering turnbuckle Flanged eyelet pivot ball Smooth edge towards drivers side! 89075 Build Two steering ballstuds 29mm 89455 3x22mm fhcs :: Steering Assembly (cont.)- Bag B 89011 Front body mount...
  • Page 6 :: Front/Rear Differential Assembly - Bag C & CC 89115 Diff Center Diff housing Outdrive 89121 Diff Front Diff O-Ring 89478 Diff outdrive Outdrive Light differences (long) outdrives 25236 (rear, short) 8x16mm bearing 89477 Light Rear Diff outdrives Outdrive (front, long) (short) :: Front/Rear Differential Assembly (cont.) - Bag C &...
  • Page 7 :: Front/Rear Differential Assembly (cont.) - Bag C & CC 89478 89121 89120 Light 89121 Diff Diff outdrives Diff O-Ring washer (rear, short) O-Ring O-Ring 89477 Light outdrives (front, long) 25236 8x16mm bearing 89494 Light diff ring gear :: Front/Rear Differential Assembly (cont.) - Bag C & CC 89120 Sun gear 89120...
  • Page 8 :: Center Differential Assembly - Bag C & CC 89115 89120 Diff Diff housing washer 89121 89121 Diff Diff O-Ring O-Ring 25236 8x16mm bearing 89119 Diff outdrives (center) :: Center Differential Assembly (cont.) - Bag C & CC 89120 Sun gear 89120 Diff 89120...
  • Page 9 :: Center Differential Assembly (cont.) - Bag C & CC 89120 89120 Diff Sun gear washer 89120 Diff 89121 Diff outdrive O-Ring Align pin with groove in sun gear :: Center Differential Assembly (cont.) - Bag C & CC 89208 3x14mm 89116 fhcs...
  • Page 10 :: Front Bulkhead Assembly (cont.) - Bag D & DD 89114 Diff pinion gear 89017 Inner gearbox 25236 8x16mm bearing Wrap boot over the O-Ring. :: Front Bulkhead Assembly (cont.) - Bag D & DD Key setscrew onto flat side of shaft. Tighten with no endplay.
  • Page 11 :: Front Bulkhead Assembly (cont.) - Bag D & DD 89473 Steel shock standoffs 89225 3x24mm shcs 89230 Silver cone washer :: Front Suspension Assembly - Bag E & EE 89105 89105 CVA pin u-joint coupler 89285 Front stub axle (aluminum) 89102 bone...
  • Page 12 :: Front Suspension Assembly (cont.) - Bag E & EE 89029 Steering block 89206 bushing 4x10mm (short) bhcs 89558 Note: RC8.2 Key bushings into caster steering block. blocks 89029 Steering block bushing (long) Note: Build right One drop only. Spread evenly 89207 and left Do not tighten until...
  • Page 13 :: Front Suspension Assembly (cont.) - Bag E & EE 89269 Smooth edge towards 89549 drivers side! Side view 38mm RC8.2 steel front upper turnbuckle 89076 89230 Camber Silver cone rod ends washer 25215 locknut Build right 89225 and left 3x24mm sides! shcs...
  • Page 14 :: Front Suspension Assembly (cont.) - Bag E & EE 89227 3x28mm shcs 89018 Gearbox gasket 89022 Front bumper 89217 4x14mm fhcs 89214 4x12mm fhcs :: Front Suspension Assembly (cont.) - Bag E & EE Shock tower hinge pin hinge pin bushing bushing Build right...
  • Page 15 :: Rear Bulkhead Assembly - Bag F & FF 89557 89106 CVA pin retainer 89286 O-ring 89560 Gearbox Center CVA input cup bone +3mm (aluminum) (rear) 89106 u-joint coupler 89557 retainer Input cup has additional holes for crosspin to extend the life of boot the input cup.
  • Page 16 :: Rear Bulkhead Assembly (cont.) - Bag F & FF 89011 Body mount (rear) 25215 Diff shims in- stalled to diff, 25620 diff installed to 3x10mm locknut gearbox. shcs 89117 89454 Diff 3x12mm shim shcs 89224 89539 3x16mm RC8.2 rear shcs shock tower 89017...
  • Page 17 :: Rear Suspension Assembly (cont.) - Bag G & GG 89105 CVA pin (fr/rr) 89284 89284 Rear stub Rear stub axle axle (aluminum) (aluminum) Axle has additional holes for crosspin to extend Build Two! the life of the Axle. :: Rear Suspension Assembly (cont.) - Bag G & GG 89162 15x21mm bearing...
  • Page 18 :: Rear Suspension Assembly (cont.) - Bag G & GG 89454 89561 3x12mm Rear shcs guard 25192 3x20mm shcs Droop screw Build right placement! 89551 89317 and left RC8.2 Droop sides! rear arm screw :: Rear Suspension Assembly (cont.) - Bag G & GG 89076 89076 Camber...
  • Page 19 :: Rear Suspension Assembly (cont.) - Bag G & GG hinge pin hinge pin bushing bushing 89039 Hinge pin bushings 1 dot 2 dot down 89463 89470 Aluminum Hinge pin D-plate bushings (two dot) 89452 3x50mm shcs 89466 Inner hinge pin (4mm HMA) ::: Rear Suspension Assembly (cont.) - Bag G &...
  • Page 20 :: Wing Assembly - Bag H 89229 Blue countersunk washer 25204 89304 3x16mm JC Illuzion fhcs wing (black) 25192 89540 3x20mm RC8.2 shcs Wing mount upper brace 25215 locknut 89540 RC8.2 wing mounts 25215 locknut :: Wing Assembly (cont.) - Bag H 25215 89228 3x40mm...
  • Page 21 :: Rear Clip Install - Bag H 25215 locknut 89018 Gearbox gasket 89217 4x14mm fhcs 89214 4x12mm fhcs 89209 3x18mm fhcs :: Center Bulkhead Assembly - Bag I & II 89019 89226 Center 3x26mm bulkhead shcs (top) 89254 Center diff top plate 89529 Motor...
  • Page 22 :: Center Bulkhead Assembly (cont.) - Bag I & II 89529 Motor 89454 mount 3x12mm Note: pinion and set screw slide shcs not included. See motor manufatcurer’s gearing recommendations. :: Center Bulkhead Assembly (cont.) - Bag I & II 89207 4x12mm bhcs 89503...
  • Page 23 :: Center Bulkhead Assembly (cont.) - Bag I & II 89510 Motor pad Note: trim motor pad to fit chassis. :: Center Bulkhead Assembly (cont.) - Bag I & II 89502 RC8e center diff riser 89214 89217 Install CVA bones 4x12mm into center diff 4x14mm...
  • Page 24 :: Shocks Assembly - Bag J & JJ 89066 89291 Shock 16x29mm O-rings FT shock body (front) 89352 Spacer 89344 16x38mm FT shock body 89358 89358 (rear) Lower Lower shock tool Use the lower shock tool to load the two o-rings and spacer for easy lubing and installation into the shock body...
  • Page 25 :: Shocks Assembly (cont.) - Bag J & JJ Bladder Installation 89335 Shock 89351 Shock bladder As you install the shock cap with the bladder, it will force out any extra fluid. If you install the cap with the shaft fully extended, you are running FULL REBOUND.
  • Page 26 :: Shocks Assembly (cont.) - Bag J & JJ 89454 3x12mm shcs 106mm After installation, adjust droop Install screw to get a front shock length of 106mm measured center to center two front 91069 on the shock cap / eyelet. shocks.
  • Page 27 :: Radio Tray Assembly - Bag K 89506 89208 Hook and 3x14mm loop battery fhcs straps Note: servo not included. 89229 Countersunk washers 89006 (blue) Servo spacers 89505 89504 RC8e Servo mounts vary per Radio servo manufacturer. battery tray Space your servos low tray to the chassis without (bottom)
  • Page 28 :: Radio Tray Assembly (cont.) - Bag K 89216 locknut Note: there are two different positions 25215 for the locknuts depending on what locknut vehicle you have. RC8.2e RC8.2e Front RC8Te RC8Te 89509 SC8e SC8e Battery Note: hook and loop...
  • Page 29 :: Radio Tray Assembly (cont.) - Bag K 31531 3x6mm bhcs Note: receiver and transponder not included. Note: route the servo Note: hook and loop wire to the receiver straps are removed through this opening. for view clarity. :: Radio Tray Assembly (cont.) - Bag K 89219 3x5mm 6338...
  • Page 30 :: Radio Tray Assembly (cont.) - Bag K 25201 89007 A - Airtronics 3x8mm Servo cone F - Futaba fhcs washer H - Hitec 89007 J - JR Servo 25215 horn ring Printed here locknut Enlarge holes in servo horn! 89007 2308 Note: hook and loop...
  • Page 31 :: Radio Tray Assembly (cont.) - Bag K 89205 3x26mm bhcs 25215 25203 locknut 3x12mm fhcs :: Radio Tray Assembly (cont.) - Bag K Note: batteries not included. Batteries are not included in kit. Note: hook and loop straps are removed for view clarity.
  • Page 32 :: Wheels, Tires, and Body Install (cont.) - Bag L Body : Your RC8.2e comes with a clear Jconcepts polycarbonate body. You will need to Illuzion RC8.2e...
  • Page 33 :: Chassis Tips Gearing: Follow your motor manufacturer’s recommendations for gearing options. Gear Mesh: To correctly set your gear mesh, follow the steps below: 1. Loosen the set screw on the motor’s pinion gear. The set screw can be accessed through the slot on the side of the motor mount slide, opposite the spur gear.
  • Page 34 :: Front End Tips (cont.) Front Camber Angle: A good starting camber setting is –2 degrees. Positive camber, where the top of the tire is leaning out, is typically not recommended. Front Toe-In: Zero degree toe-in (tires pointing straight forward) is a good starting setting. You can increase turn in by adding 1-2 degrees of toe-out (front of tires point slightly out).

  • Page 35: Setup Sheets

    :: Droop Settings (Truggy shown but applicable for all vehicles) Step 1: With only the bottom of the shocks attatched, the droop screws raised all the way, and the chassis above your working surface so the arms are at full extension, you should be able to easily slide the top of your shock over the standoff screw, while leaving the shock at full extension.
  • Page 36 :: Shocks :: Front and Rear Gear Differential 25612 M3 Locknut With Flange 25236 8x16x5 Bearings 89066 Shock O-Rings 89115 Diff Housing 89067 Shock Limiters, Set 89116 Diff Gasket 89083 Shock Bushings 89117 Diff Shims 89215 Piston Locknut 89120 Diff Sun/Planet Gears, Includes 89278 2.5mm Washer Washers and Pins, Set...
  • Page 37 :: Top Plate :: Shock Fluid 5420 10 Weight Silicone Shock Fluid 2oz. 25202 3x10mm FHCS 5421 20 Weight Silicone Shock Fluid 2oz. 89011 RC8 Body Mounts, Set 5422 30 Weight Silicone Shock Fluid 2oz. 89039 Hinge Pin Bushings, 1/2/3 dot, Set 5423 40 Weight Silicone Shock Fluid 2oz.
  • Page 38 :: Front Gearbox 25215 M3 Locknut 25236 8x16x5 Bearing 25215 31531 3x6mm BHCS 89017 FR/RR Gearbox 89017 89039 Hinge Pin Bushings, Set 25215 89114 Diff Pinion Gear 89214 4x12mm FHCS 89217 4x14mm FHCS 89219 3x5mm Setscrew 89472 25236 89224 3x16mm SHCS 89227 89227 3x28mm SHCS...
  • Page 39 :: Rear Gearbox 25191 3x18mm SHCS 25215 M3 Locknut 89219 31531 25236 8x16x5 Bearing 31531 3x6mm BHCS 89228 89017 RC8 FR/RR Gearbox, Set 89224 89039 RC8 Hinge Pin Bushings, Set 89114 RC8 Diff Pinion Gear 89214 4x12mm FHCS 89114 89017 89217 4x14mm FHCS 89219...
  • Page 40 89068 RC8 Pivot Chassis Brace Set (Front) 89502 Center Diff Riser 89069 RC8 Pivot Chassis Brace Set (Rear) 89503 RC8.2e FT Motor Mount Washers 89077 Chassis Brace Rod Ends, Set 89512 RC8e 12T Pinion works with #89068, 89069 89513 RC8e 13T Pinion...
  • Page 41 :: Radio Tray 2308 3x18mm BHCS 21173 6338 Antenna Tube and Cap 21173 18T Body Clips 21173 25201 3x8mm FHCS 89504 25203 3x12mm FHCS 25215 M3 Locknut 6338 89222 31531 3x6mm BHCS 89006 RC8 Servo Mount Spacers, Set 89222 89222 89007 Steering Servo Horns, Set 89222...
  • Page 42 89275 RC8 RTR Body (Black) 89276 RC8 RTR Body (White) 89277 RC8 RTR Body Wrap Decals 89475 RC8B Decal Sheet 89508 RC8.2e FT Decal Sheet 89523 RC8e Body w/Window Masks (Clear) 89559 RC8.2 Decal Sheet 2208 89523 89255 2208 31531...
  • Page 43 :: XP Electronics :: Factory Team and Option Parts 29102 Antenna (silver) xp2/xp3/xp3d 25392 3mm Blue Locknut, Flanged 29107 Metal gear set, S1903/S1903MG 80930 1/8 Scale Electric Conversion Kit 29108 AM TX + RX crystal set, 26.995 Ch 1 89005 Aluminum Antenna Mount 29109 AM TX + RX crystal set, 27.045 Ch 2...
  • Page 44 :: Reedy Accessories :: 1/18 Kits and RTR’s 526-S AC/DC 2S-6S LiPo/LiFe Charger 20100 RC18T RTR (ready-to-run) Charge Harness 2S Saddle Pack 4mm 20101 RC18T2 2.4ghz RTR (ready-to-run) Charge Harness 2S Standard Pack 4mm 20103 RC18B2 - RC18T2 Team Kit 4.0mm plugs (2M, 2F) 20105 RC18B RTR (ready-to-run)
  • Page 45 :: Tools :: Contact Information 1111 FT Turnbuckle Wrench 1112 FT 4mm Turnbuckle Wrench (4x4 only) Associated Electrics, Inc. 1449 Offroad Ride Height Gauge 26021 Commercentre Drive 1450 FT Ride Height Gauge Lake Forest, CA 92630-8853 USA 1541 FT Hex Driver Set, (7 pcs) 1542 FT .050”...
  • Page 46 :: Notes...
  • Page 47 Driver: RC8.2e FT Standard Setup Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Anti Roll Bar: Anti Roll Bar: 2.2mm Green 2.5mm Green 2.3mm White 2.6mm White Steering System: Steering System: 2.4mm Blue 2.7mm Blue 2.5mm Yellow 2.8mm Yellow...
  • Page 48 :: Hardware - 1:1 Scale View Flat Head (fhcs) Cap Head (shcs) Button Head (bhcs) 3x8mm (25201) 2.5x8mm (89222) 2.5x3mm (89201) 3x10mm (25202) 3x8mm (89223) 2.5x6mm (31520) 3x12mm (25203) 3x10mm (25620) 3x6mm (31531) 3x14mm (89208) 3x12mm (89454) 3x10mm (25211) 3x18mm (89209) 3x16mm (89224) 3x12mm (89202) 3x20mm (89210)
  • Page 49 Driver: Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Anti Roll Bar: Anti Roll Bar: 2.2mm Green 2.5mm Green 2.3mm White 2.6mm White Steering System: Steering System: 2.4mm Blue 2.7mm Blue 2.5mm Yellow 2.8mm Yellow Swing Rack Bellcrank Rack Bumpsteer Wheelbase:...
