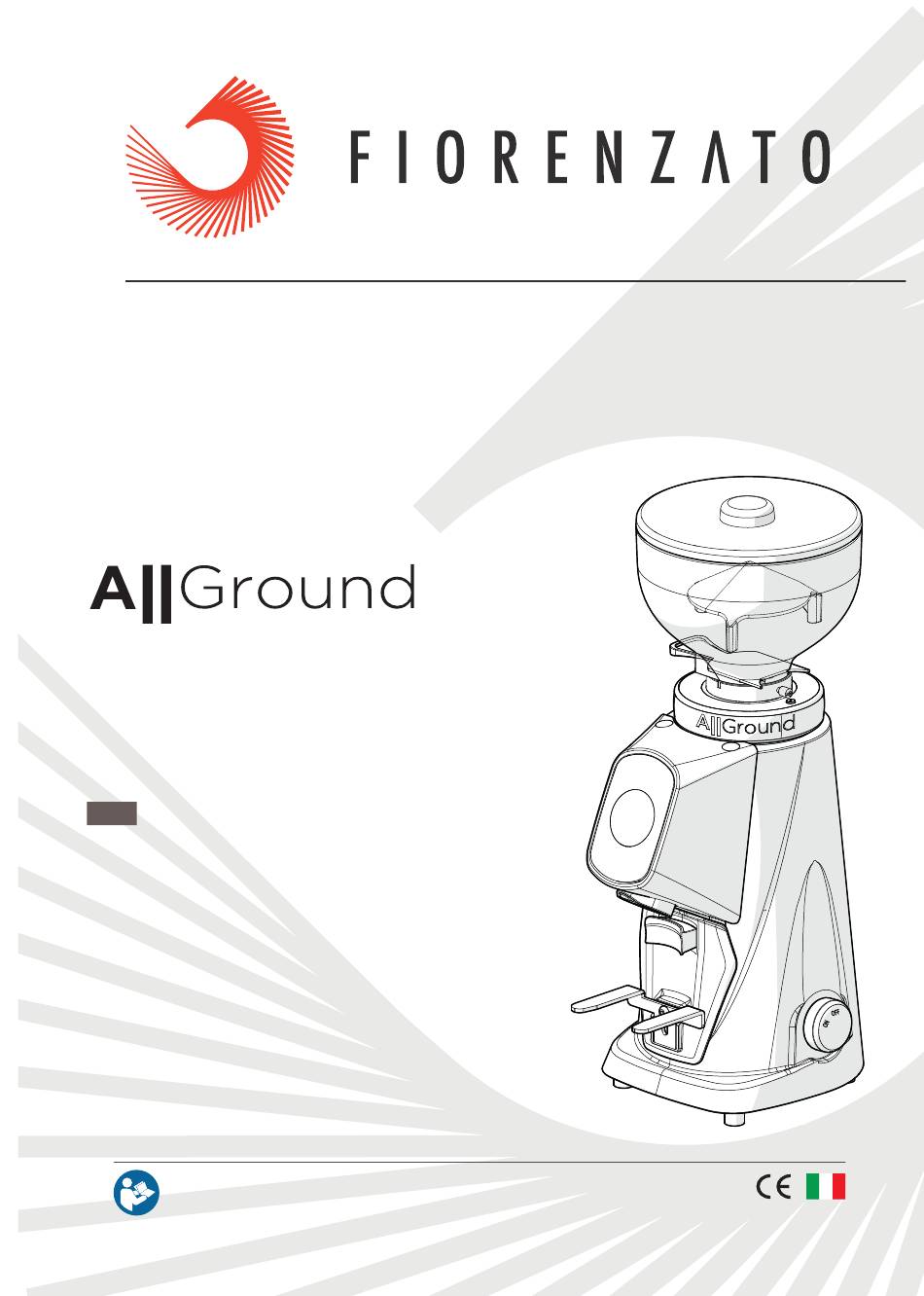

- Page 1 Electronic grinder-dosers for coffee sense Installation, use and maintenance manual Translation of the original instructions ISTRUZIONI ORIGINALI Read these instructions carefully before first use. Rev_00 Ed_11/2023...
- Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8...
- Page 3 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 ESPRESSO MOKA FILTER...
- Page 4 Fig. 15 Fig. 16 Fig. 17 Fig. 18 < 2 s < 2 s Fig. 19 Fig. 20 Fig. 21 Fig. 22...
- Page 5 Fig. 23 Fig. 25 Fig. 26 CLICK! Fig. 24 Fig. 28 Fig. 29 Fig. 27...
- Page 6 Fig. 30 Fig. 31 Fig. 32 Fig. 33 Fig. 34 CLICK! www.fiorenzatohome.it...
-
Page 7: Table Of Contents
Using the grinder-doser in “Espresso” mode (Fig. 17) 5.4.4 Using the grinder-doser in “Moka” mode (Fig. 18) 5.4.5 Using the grinder-doser in “Filter” mode (Fig. 19) 5.5 Deactivating and activating the instant weighing system 5.6 Adjusting the grind type and size (Fig. 21) 7 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... - Page 8 Supply cable status check 6.1.3 Thorough cleaning of the grinders 6.1.4 Storing the grinder 6.1.5 Instant weighing system calibration 6.2 Extraordinary maintenance ANOMALIES - CAUSES - REMEDIES REQUESTING SPARE PARTS DISPOSAL 8 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense...
-
Page 9: General Information
GENERAL INFORMATION 1.1 Essential safety warnings sense The coffee grinder produced by Fiorenzato M.C. S.r.l. is designed and built for both professional and household use. IMPORTANT! To reduce the risk of accidents, electric shock and possible inju- ries, the user must understand and comply with the following basic safety pre- cautions. -
Page 10: General Information On The Manual And Its Consultation
Fiorenzato M.C. S.r.l. and reflect the state of the art of the machine at the time of its release on the market. Fiorenzato M.C. S.r.l. is constantly seeking new solutions to improve its prod- ucts and therefore reserves the right to make changes to the coffee grinder and to its documentation over time without considering the products already sold as being inadequate and/or obsolete. -
Page 11: Symbols Used In The Manual
1.4 Contact details of the manufacturer For any clarification, contact Fiorenzato M.C. S.r.l. at the following address: Fiorenzato M.C. S.r.l. Via Rivale, 18 - Santa Maria di Sala (VE) - ITALY Tel. +39/049 628716 - Fax. +39/049 8956200 info@fiorenzato.it - www.fiorenzato.it 1.5 Instructions to request interventions For technical assistance concerning the machine, contact the dealer who sold the appliance. For more information or any clarification regarding the use and/or maintenance of the Grinder, Fioren- zato M.C. S.r.l. is available and can be reached using the contact information provided in section 1.4. . 11 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 12: Warranty
The warranty is void for damage caused to the appliance due to: neglect, installation and/ or use that does not comply with the requirements of this manual, insufficient maintenance (cleaning), damage caused by lightning and atmospheric phenomena, incorrect power supply, overvoltages and overcurrents. 1.7 Applied directives All Coffee Grinders produced by Fiorenzato M.C. S.r.l. are designed and built in accordance with the essential requirements of the following EU directives: 2006/42/EC [Machine Directive]. 2014/35/EU [Low Voltage Directive]. 2014/30/EU [Electromagnetic Compatibility Directive]. -
Page 13: Eu Declaration Of Conformity
• • RAEE Directive 2012/19/UE The legal person authorized to realize the technical file is Fiorenzato M.C. S.r.l., based in Via Rivale, 18 – 30036 Santa Maria di Sala (VE) – Italia. Date: 2023 November The legal representative, Christian Oddera Fiorenzato M.C. -
Page 14: Identification Data And Technical Characteristics
To ensure the practical and functional use of your grinder, Fiorenzato M.C. S.r.l. has equipped the appliance with a practical touch display that shows the grinding commands corresponding to the three different types of grind (Espresso, Moka and Filter) that can be selected by simply rotating the adjustment ring nut. The grinder, as described in the following paragraphs, is equipped with special safety devices that protect the user during all operating and/or cleaning phases with the machine open. 2.2 Appliance identification The nameplate is on the bottom of the grinder and provides the following information (Fig. 1): • Business name of Fiorenzato M.C. S.r.l. • CE marking and year of manufacture. • Any other certification marks. • Model and serial number. • Power of the appliance. • Required power supply voltage and frequency. 2.3 Identification of the main parts of the grinder... -
Page 15: Intended Uses
EN 60704-1 standards: 1998 and EN 607043: 1996. The equivalent sound exposure level for an operator, related exclusively to a limit operation of the appliance of 240 min over eight hours, is 78 dB(A), in accordance with the European Direc- tive 86/188/EEC and subsequent revision 2003/1 0/EEC. Use of the device does not therefore require any precautions against risks arising from exposure to noise in the workplace (articles 3-8 of DE 2003/1 0/EEC). 15 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 16: Safety
It is forbidden to operate the appliance if the safety devices have been removed, bypassed or tampered with. Failure to comply with the above relieves Fiorenzato M.C. S.r.l. of all liability for dam- age to persons and/or property. 3.2 Incorrect reasonably foreseeable use Fiorenzato M.C. S.r.l. disclaims any liability and the warranty is void in the event of negligence when using the machine or due to failure by the user to comply with the user instructions contained in this manual. Any use of the device other than that reported in this manual is considered in- correct. During use of the device, other types of work and activities considered incorrect and which in general could involve risks for the safety of users and/or damage to the machine are not permitted. -
Page 17: Precautions For Correct And Safe Use
Protect the cable from high temperatures, oil and sharp edges. Replace the power cord and/or any extension if their wear or damage is perceived. Variations with respect to normal operation (increased power absorption, increased tem- perature, excessive vibrations, abnormal noises or alarm signals on the display) result in the expectation that operation is not correct. To prevent faults, which can directly or indi- rectly cause damage to persons or to the appliance, ensure the necessary maintenance or, if necessary, contact the dealer or a specialist repairer. If you suspect that the appliance is operating abnormally and/or is no longer safe, discon- nect it from the power outlet. Therefore, entrust control of the appliance and any repairs to specialist and authorised technicians or, if necessary, contact the manufacturer. 3.4 Safety devices incorporated in the grinder sense The coffee grinder is equipped with suitable mechanical and elec- tromechanical devices to safeguard the safety of the user and the integrity/functionality of the appliance during its use. Specifically, the following safety devices are incorporated in the appliance: • Motor thermal protector The device motor has a thermal protector that protects it from excessive heating due to over- currents and intervenes by interrupting the power supply to the motor. 17 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 18: Residual Risks
No. 2 ring nut position detection microswitches (Fig. 8) • These two microswitches (Items 1 and 2) detect the position of the adjustment ring nut (Item 3) and then, through the display, indicate the grinding mode detected (Espresso, Moka or Filter). 3.5 Residual risks Fiorenzato M.C. S.r.l. adopted all the necessary precautions during the design stage to ensure use of the coffee grinder in conditions of maximum safety. However, during installation and cleaning of the appliance, there are a number of residual risks that cannot be eliminated, the effects of which can be addressed by adequately training the user according to the provisions set out in the following table. For each residual risk, the provisions useful to limit and/or cancel the degree of the individual risks are indicated. -
Page 19: Warning Labels Applied To The Machine
Special pictograms (Fig. 9), are displayed on the grinder to warn the user to exercise extreme caution when performing certain operations and manoeuvres on the machine. The pictograms are: Cutting hazard: applied to the outer surface of the removable chamber (visible only after removing the chamber itself from the machine body); Electrocution Hazard: positioned on the closing plate on the bottom of the grinder, near the cable gland. 19 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 20: Installation
• The appliance must not be installed near sinks and/or taps that can wet it with jets and/or splashes of water; • The place of use is sufficiently lit and well ventilated; • A socket is provided near the installation point for the electrical connection of the appliance in compliance with the regulations in force in the country of use. ATTENTION! The socket must be equipped with an efficient earthing system. ATTENTION! The electrical power supply system must also be equipped with a safety magnetothermic switch placed upstream of the socket in a known position that can be easily reached by the user in order to protect the appliance from overloads and sudden changes in voltage and the user from the risk of electrocution. 20 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 21: Unpacking And Handling Of The Appliance
Open the packaging near the installation point, ensuring there is sufficient space to handle the appliance safely. • Remove the appliance from the packaging, gripping it firmly and safely. • Place the grinder on the work surface. ATTENTION! Be careful when handling or moving the appliance. Due to its weight (9 kg) and the rounded shape of the machine body, there is a risk that it may slip from your grip. 4.4 Installation and connection to the electrical network To complete the installation and start using your new coffee grinder, simply connect the plug to the power outlet (Fig. 10). If it is necessary to use power adapters, multiple sockets or extensions, it is essential to use products that comply with the certification standards in force in the country of use. • If present, set the thermal magnetic circuit breaker switch located upstream of the power socket to “ON” (Fig. 11). • Set the machine power-on switch to “ON” (Fig. 12). At this point the coffee grinder is powered and ready to be used. 21 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 22: Using The Grinder
• Tighten the screw (Item 1) to lock the fork (Item 2) in the new position. 5.3 Selecting the grinding type With reference to Fig. 14, select the type of grind: • By turning the adjustment ring nut (Item 1), you can select the type of grinding desired between “Filter”, “Moka” and “Espresso”. • The machine management screen, corresponding to the type of grinding selected, is displayed automatically. • The grind is selected by positioning the ring nut sector corresponding to the “Filter”, “Moka” or “Espresso” setting in line with the red indicator on the removable chamber (Part. 2). 5.4 Using the machine All the control devices on the grinder are described below. 5.4.1 Switch Used to turn the appliance (Fig. 15) on and off. • Rotated to “OFF”: the appliance is switched off (power supply disconnected). • Rotated to “ON”: the appliance is on (electrically powered). 22 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 23: Machine Management Function Screens And Buttons
When pressed, the screen appears showing the progress of the grinding cycle in grams (or in seconds if the instant weighing system is disabled - see section 5.5) and the “STOP” key to stop the cycle in progress. - If pressed for more than two seconds, it loads the screen used to set the grams of coffee to be ground (or the grinding seconds if the instant weighing system is disabled - see section 5.5), for the single dose. Double dose grinding (Item 2): - Short pressing this option (for less than two seconds) will start timed grinding for two coffee doses. When pressed, the screen appears showing the progress of the grinding cycle in grams (or in seconds if the instant weighing system is disabled - see section 5.5) and the “STOP” key to stop the cycle in progress. - If pressed for more than two seconds, it loads the screen used to set the grams of coffee to be ground (or the grinding seconds if the instant weighing system is disabled - see section 5.5) for the double dose. 23 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... - Page 24 Setting a single and/or double dose (in grams and/or seconds) 8.5g > 2 s From the "Espresso” screen, Use the “ - ” and “ + ” function Press “OK” to confirm press the or function keys to set the grams of the data and return to the key for longer than 2 coffee to be ground for the “Espresso” screen. seconds. selected dose. Note: If the instant weighing system is disabled (see section 5.5), the doses are set following the same procedure but setting the grinding time in seconds. 24 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense...
- Page 25 If, during dispensing, the filter holder cup grinding. is touched or the grinder itself is knocked, grinding is momentarily stopped and then resumed, and once it has stabilised, weighing continues. At the fourth interruption of the same dose, grinding definitively stops. 25 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense...
-
Page 26: Using The Grinder-Doser In "Moka" Mode (Fig. 18)
Use the “ - ” and “ + Press “OK” to confirm screen press the submenu” page, ” function keys to set the data and return to press the key the grams of coffee the “Moka submenu” function key corresponding to the to be ground for the screen. for longer than 2 dose you wish to set selected dose. seconds to open the (small , medium “Moka submenu” page. or large moka) for longer than 2 seconds. Note: If the instant weighing system is disabled (see section 5.5), the doses are set following the same procedure but setting the grinding time in seconds. 26 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... - Page 27 If, during dispensing, the filter holder cup is touched or the grinder itself is knocked, grinding is momentarily stopped and then resumed, and once it has stabilised, weighing continues. At the fourth interruption of the same dose, grinding definitively stops. 27 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense...
-
Page 28: Using The Grinder-Doser In "Filter" Mode (Fig. 19)
” function keys to set the data and return to press the key the grams of coffee the “Filter submenu” function key corresponding to the to be ground for the screen. for longer than 2 dose you wish to set selected dose. seconds to open (small , medium the “Filter submenu” page. or large filter) for longer than 2 seconds. Note: If the instant weighing system is disabled (see section 5.5), the doses are set following the same procedure but setting the grinding time in seconds. 28 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... - Page 29 If, during dispensing, the filter holder cup reached. grinding. is touched or the grinder itself is knocked, grinding is momentarily stopped and then resumed, and once it has stabilised, weighing continues. At the fourth interruption of the same dose, grinding definitively stops. 29 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense...
-
Page 30: Deactivating And Activating The Instant Weighing System
DEACTIVATING the instant weighing system Turn the To switch from WEIGHT (g) to TIME (s) dispensing: The instant adjustment weighing system On the display, perform the rapid tap sequence shown ring nut until is DISABLED. in the figure to deactivate the instant weighing system. the “Espresso” Tap sequence: grinding mode The deactivation screen loads. confirmation - Top left corner screen appears - Top right corner for a few seconds and - Top left corner. then switches back to the main screen. 30 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 31: Adjusting The Grind Type And Size (Fig. 21)
Grinding size adjustment After having selecting the type of grinding (Espresso, Moka or Filter), you can adjust the grinding size to obtain coarser or finer coffee. Adjust the adjustment ring nut again (Item 1), keeping the red notch (Item 3) in the previously selected sector. • Turn the ring nut clockwise to grind coarser; • Turn the ring nut anti-clockwise to grind finer. The adjustment must be made with the motor running. It is advisable to grind small quantities of coffee for a visual assessment of the degree of grinding. 31 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 32: Grinder Maintenance
6.1.1 Cleaning the equipment AFTER EACH USE: thoroughly clean the appliance. Removing and cleaning the hopper (Fig. 25) Close the shutter (Item 1) and remove the hopper (Item 2) from the appliance. • Remove the lid (Item 3) from the hopper and empty out all the coffee beans contained in- side. We recommend pouring the coffee back into its original bag and hermetically sealing it to preserve its freshness and aroma. • Clean the internal and external surfaces of the hopper using hot water and a neutral PH non-perfumed detergent and degreaser suitable for the food sector. Do not use abrasive sponges and/or aggressive detergents that could damage the surfaces of the hopper. • Dry the washed parts thoroughly using a soft, dry cloth. ATTENTION! The ring nut cannot be washed in a dishwasher. 32 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... - Page 33 The removable chamber and the fixed grinder cannot be washed in the dishwasher. Cleaning the grinding chamber and lower grinder (Fig. 28) • Using a vacuum cleaner, remove the coffee beans and powder contained in the grinding chamber (Item 1). • With a soft bristle brush (clean and sanitised) and a dry cloth, clean the grinding chamber (Item 1) and the lower grinder (Item 2). ATTENTION! Each time the removable chamber is removed, carefully clean the entire relative contact surface inside the grinding chamber with a brush (Item 3). ATTENTION! Do not use water and/or detergents to clean the grinding chamber and the grinder. 33 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense...
- Page 34 Insert the coffee dispensing tube (Item 1) into its seat until it is attached to the magnet inside the seat itself. • Insert the removable chamber (Item 2) in the machine body, making sure it is facing the right way. • Fit the adjustment ring nut (Item 3) by acting as follows: Position the adjustment ring nut (Item 3) on the machine body by aligning the red arrow (Item 4) with the red reference notch on the removable chamber (Item 5). Press the ring nut against the machine body and rotate it slightly anti-clockwise until the coupling point is found. When the coupling point is reached, the locking pin (Item 6) clicks upwards blocking the rotation of the ring nut. Press the locking pin (Item 6) and turn the ring nut anti-clockwise again until it reaches the desired working position. • Fit the hopper (Item 7). The machine is ready to be used again after being supplied and refilled with coffee. 34 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense...
-
Page 35: Supply Cable Status Check
Clean the grinders by pouring a dose of product into the grinding chamber (completely empty) and then starting the grinding cycles until the product is completely ground. During grinding, the product (in grains or crystals) regenerates the grinders, completely removing any coffee deposits, encrustations, moulds and fatty deposits from their surfaces, absorbing the oil and destroying any rancid part without leaving residues. • In this way, the grinders are regenerated without the need to disassemble them. 6.1.4 Storing the grinder If the grinder is not going to be used for a long period, it is advisable to carry out the following oper- ations to keep it in good condition and to avoid any issues the next time it is restarted. WHEN NECESSARY: machine not used for long periods (Fig. 34) • Carefully clean the grinder as described in Para. 6.1.1. • Thoroughly clean the grinders as reported in Para. 6.1.3. • Unplug the power cord from the power outlet. • Cover the machine with a cloth to protect it from dust and dirt. 35 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 36: Instant Weighing System Calibration
Note: the maximum allowed weight calibration cell “zero”. the appearance for the calibration procedure is 100 screen. of the green g; calibration is not possible using flag under the weights greater than 100 g. pressed key. When calibration is complete, after a few seconds, the display switches to the “Espresso” screen. 6.2 Extraordinary maintenance No extraordinary maintenance operations are envisaged for the grinder. However, if there are any breakages and/or malfunctions not covered in the section “7 ANOMALIE - CAUSE - RIMEDI”, do not intervene on the device on your own initiative but entrust the search for and resolution of the fault to a specialist technician. Contact the support service of Fiorenzato M.C. S.r.l. 36 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 37: Anomalies - Causes - Remedies
When the grinding cycle starts, The instant weighing Place the “filter holder cup” the display shows one of the system is active but does or the moka “filter” or the following screens: not detect the presence collection “container” of the in the fork of the “filter filter dose on the fork, then holder cup” (espresso), press the start grinding button of the moka “filter”, or the again corresponding to the collection “container” of the desired dose. filter dose. Note: for the instant weighing system to work properly, it must detect the presence on the fork of the corresponding filter or collection container, depending on the set grind. 37 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 38: Requesting Spare Parts
Close the shutter and remove between the grinders. the supply hopper. Open the removable chamber and clean the grinders and remove any foreign bodies. Reassemble the appliance and start a grinding cycle. ATTENTION! If the anomaly persists even after carrying out the suggested corrective actions, or if functional anomalies not listed in the table occur, contact a specialist tech- nician and have the appliance checked. REQUESTING SPARE PARTS If the parts of your grinder need to be replaced, original spare parts can be ordered either from the Fiorenzato M.C. S.r.l. spare parts service, or from an Authorised Service Centre or Dealer. ATTENTION! Remember that the interventions to replace the grinders and in general all the internal parts of the grinder must be carried out by specialist technical personnel. ATTENTION! Fiorenzato M.C. S.r.l. is not responsible for any injury to persons and/or damage to the appliance caused by the replacement of components with non-original spare parts and performed by unqualified personnel. 38 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... -
Page 39: Disposal
39 / 40 Fiorenzato | Code AllGround _000 Ed. 11/2023 sense... - Page 40 Fiorenzato M.C. S.r.l. Via Rivale, 18 - Santa Maria di Sala (VE) - ITALY Tel. +39/049 628716 - Fax. +39/049 8956200 info@fiorenzato.it - www.fiorenzato.it...
