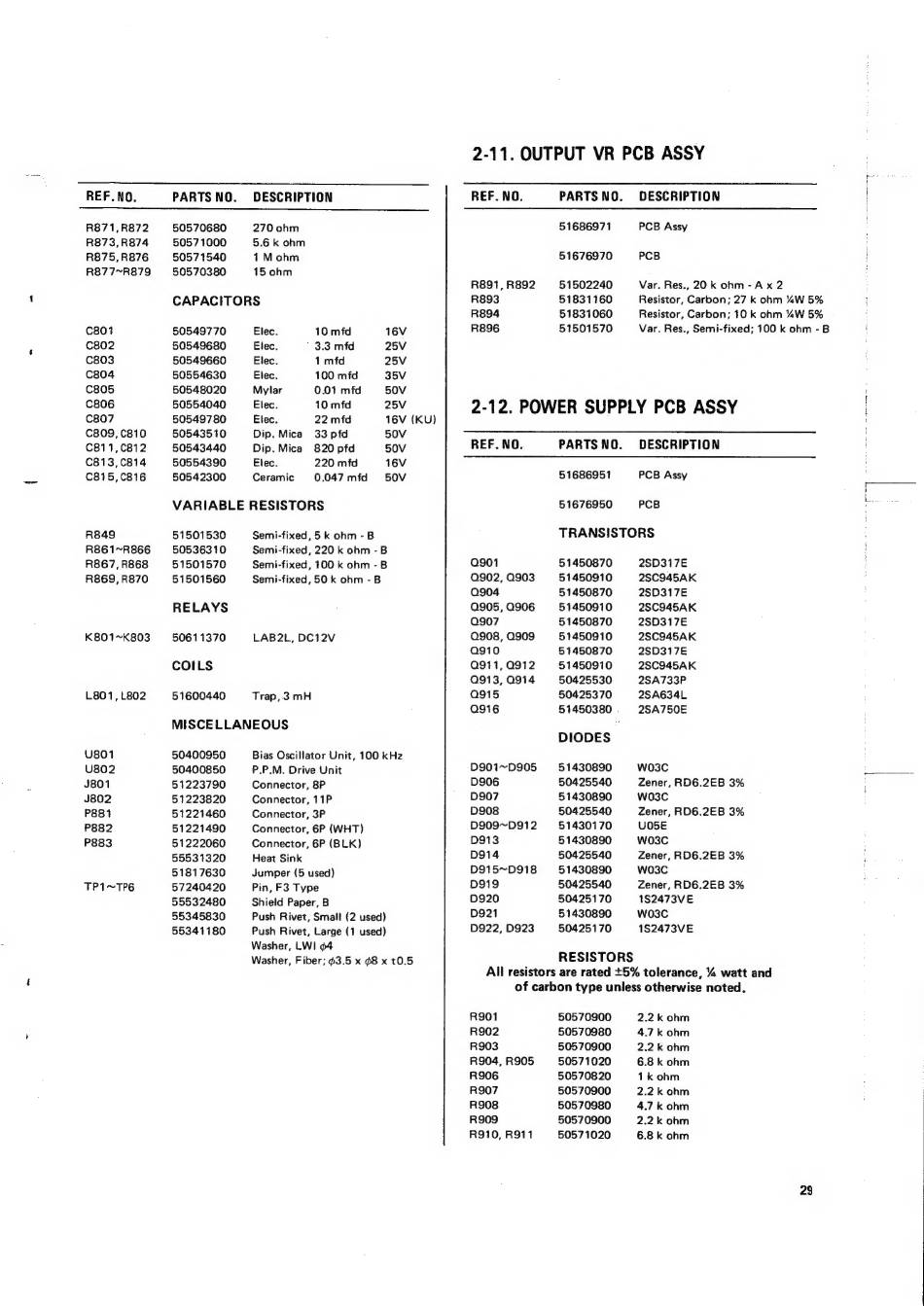

Teac C-1 Service Manual page 93

REF.NO. PARTS NO. DESCRIPTION
R871,R872 50570680 270 ohm
R873,R874 50571000 5.6 k ohm
R875, R876 50571540 1Mohm
R877~R879 50570380 15 ohm
CAPACITORS
C801 50549770 Elec. 10 mfd 16V
C802 50549680 Elec. 3.3 mfd 25V
C803 50549660 Elec. 1 mfd 25V
C804 50554630 Elec. 100 mfd 35V
C805 50548020 Mylar 0.01 mfd 50V
C806 50554040 Elec. 10 mfd 25V
C807 50549780 Elec. 22 mfd 16V (KU)
C809, C810 50543510 Dip. Mica 33 pfd 50V
C811,C812 50543440 Dip. Mica 820 pfd 50V
C813,C814 50554390 Elec. 220 mfd 16V
C815,C816 50542300 Ceramic 0.047 mfd 50V
VARIABLE RESISTORS
R849 51501530 Semi-fixed, 5 k ohm - B
R861~R866 50536310 Semi-fixed, 220 k ohm -B
R867, R868 51501570 Semi-fixed, 100 k ohm - B
R869, R870 51501560 Semi-fixed, 50 k ohm -B
RELAYS
K801~K803 50611370 LAB2L, DC12V
COILS
L801, L802 51600440 Trap, 3 mH
MISCELLANEOUS
U801 50400950 Bias Oscillator Unit, 100 kHz
U802 50400850 P.P.M. Drive Unit
J801 51223790 Connector, 8P
J802 51223820 Connector, 11P
P881 51221460 Connector, 3P
P882 51221490 Connector, 6P (WHT)
P883 51222060 Connector, 6P (BLK)
55531320 Heat Sink
51817630 Jumper (5 used}
TP1~TP6 57240420 Pin, F3 Type
55532480 Shield Paper, B
55345830 Push Rivet, Small (2 used)
55341180 Push Rivet, Large (1 used)
Washer, LW $4
Washer, Fiber; $3.5 x ¢8 x t0.5
2-11. OUTPUT VR PCB ASSY
REF. NO.
R891, R892
R893
R894
R896
PARTS NO.
51686971
51676970
51502240
51831160
51831060
51501570
DESCRIPTION
PCB Assy
PCB
Var. Res., 20k ohm -Ax 2
Resistor, Carbon; 27 k ohm "%W 5%
Resistor, Carbon; 10 k ohm "%W 5%
Var. Res., Semi-fixed; 100 k ohm -B
2-12. POWER SUPPLY PCB ASSY |
REF. NO.
Qs901
Q902, Q903
Q904
Q905, Q906
Q907
Q908, Q909
a910
Q911, 0912
Q913, Q914
Qg915
Q916
D901~D905
D906
D907
D908
D909~D912
D913
D914
D915~D918
D919
0920
D921
D922, D923
PARTS NO.
51686951
51676950
DESCRIPTION
PCB Assy
PCB ~
TRANSISTORS
51450870
51450910
51450870
51450910
51450870
51450910
51450870
51450910
50425530
50425370
51450380
DIODES
51430890
50425540
51430890
50425540
51430170
51430890
50425540
51430890
50425540
50425170
51430890
50425170
RESISTORS
2SD317E
2SC945AK
2SD317E
2SC945AK
28D317E
2SC945AK
2SD317E
2SC945AK
2SA733P
2SA634L
2SA750E
WO3C
Zener, RD6.2EB 3%
WO03C
Zener, RD6.2EB 3%
UOSE
WO03C
Zener, RD6.2EB 3%
WO03C
Zener, RD6.2EB 3%
182473VE
WO03C
182473VE
All resistors are rated +5% tolerance, % watt and
of carbon type unless otherwise noted.
R901
R902
R903
R904, R905
R906
R907
R908
R909
R910, R911
50570900
50570980
50570900
50571020
50570820
50570900
50570980
50570900
50571020
2.2 k ohm
4.7 k ohm
2.2 k ohm
6.8 k ohm
1k ohm
2.2 k ohm
4.7 k ohm
2.2 k ohm
6.8 k ohm
29
