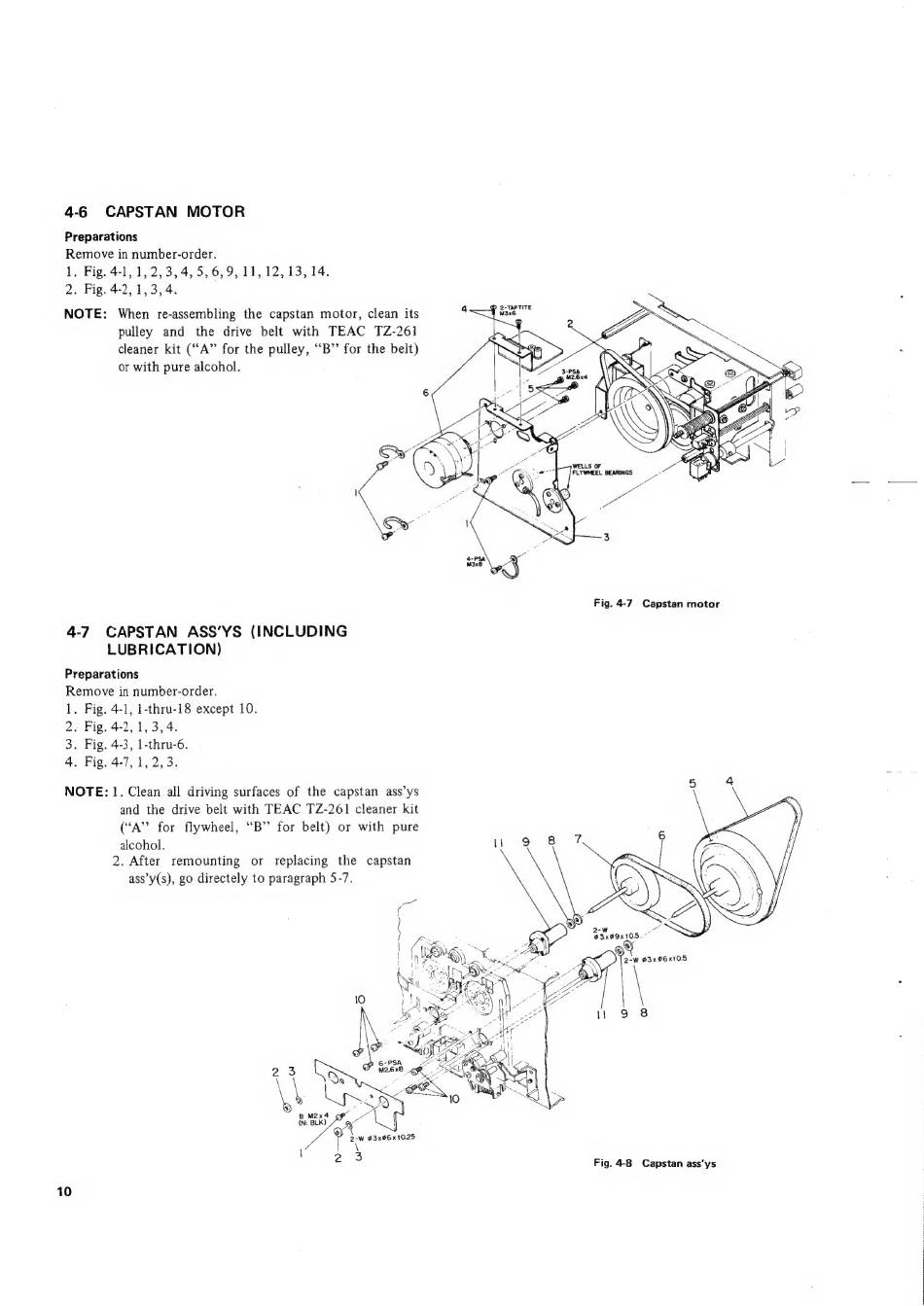

4-6 CAPSTAN MOTOR
Preparations
Remove in number-order.
1, Fig. 4-1, 1,2,3,4,5,6,9, 11, 12, 13, 14.
2. Fig. 4-2, 1,3, 4.
@ 2-TAPTITE
M3x6
NOTE: When re-assembling the capstan motor, clean its
pulley and the drive belt with TEAC TZ-261
cleaner kit ("A" for the pulley, "B'' for the belt)
or with pure alcohol.
Fig. 4-7 Capstan motor
4-7 CAPSTAN ASS'YS (INCLUDING
LUBRICATION)
Preparations
Remove in number-order.
1. Fig. 4-1, 1-thru-18 except 10.
2. Fig. 4-2, 1, 3,4.
3. Fig. 4-3, 1-thru-6.
4. Fig. 4-7, 1, 2,3.
NOTE: 1. Clean all driving surfaces of the capstan ass'ys
and the drive belt with TEAC TZ-261 cleaner kit
('A" for flywheel, "B'' for belt) or with pure
alcohol.
2. After remounting or replacing the capstan
ass'y(s), go directely to paragraph 5-7.
» B M2x4 ,
(Ni BLK) & i
° 2-W O3x86xt0.25
\
|
2 3 Fig. 4-8 Capstan ass'ys
