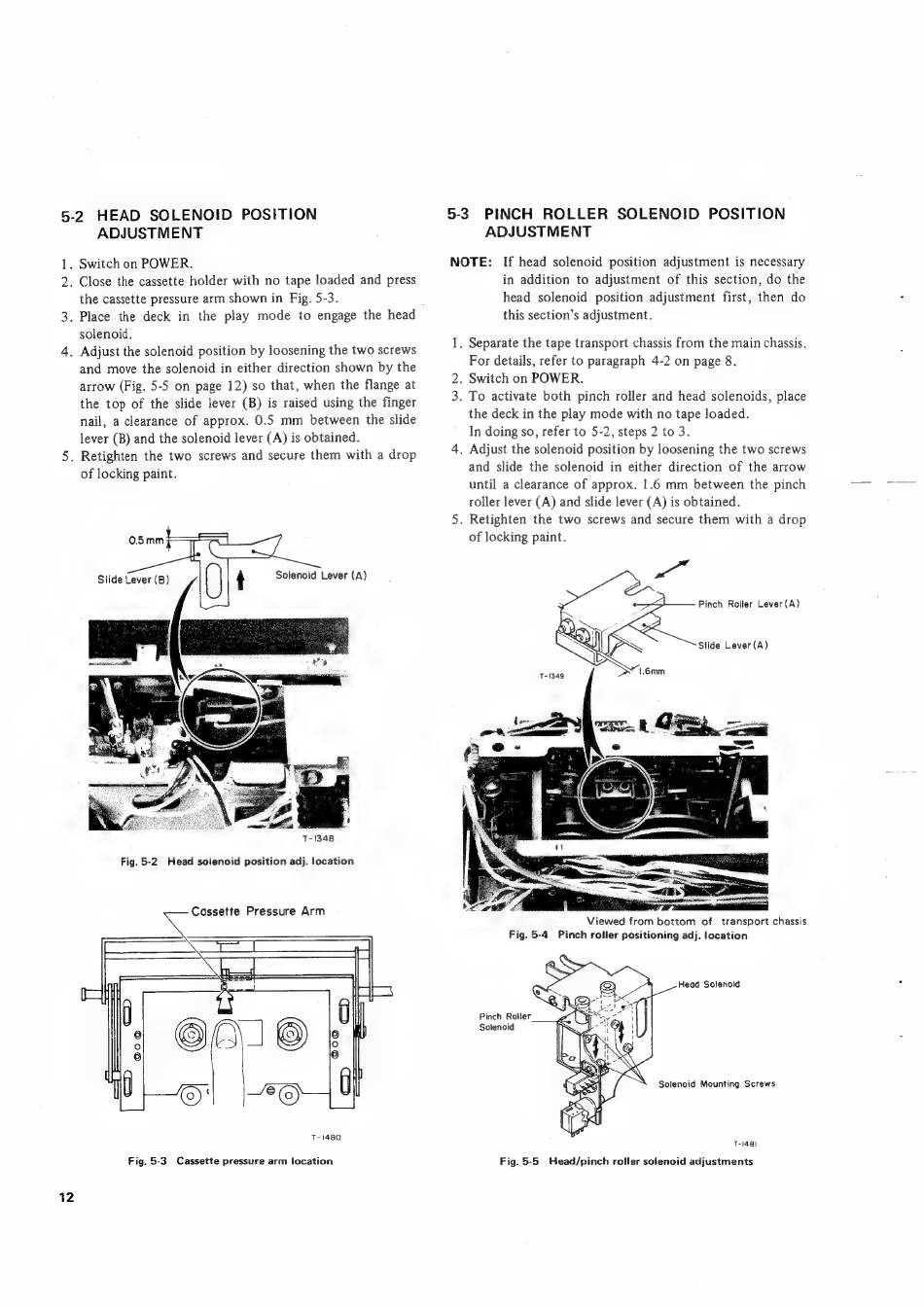

5-2 HEAD SOLENOID POSITION
ADJUSTMENT
1. Switch on POWER.
2. Close the cassette holder with no tape loaded and press
the cassette pressure arm shown in Fig. 5-3.
3. Place the deck in the play mode to engage the head
solenoid.
4. Adjust the solenoid position by loosening the two screws
and move the solenoid in either direction shown by the
arrow (Fig. 5-5 on page 12) so that, when the flange at
the top of the slide lever (B) is raised using the finger
nail, a clearance of approx. 0.5 mm between the slide
lever (B) and the solenoid lever (A) is obtained.
5. Retighten the two screws and secure them with a drop
of locking paint.
T-1348
Fig. 5-2 Head solenoid position adj. location
Cassette Pressure Arm
T-1480
Fig. 5-3 Cassette pressure arm location
12
5-3. PINCH ROLLER SOLENOID POSITION
ADJUSTMENT
NOTE: If head solenoid position adjustment is necessary
in addition to adjustment of this section, do the
head solenoid position adjustment first, then do :
this section's adjustment.
. Separate the tape transport chassis from the main chassis.
For details, refer to paragraph 4-2 on page 8.
. Switch on POWER.
. To activate both pinch roller and head solenoids, place
the deck in the play mode with no tape loaded.
In doing so, refer to 5-2, steps 2 to 3.
. Adjust the solenoid position by loosening the two screws
and slide the solenoid in either direction of the arrow
until a clearance of approx. 1.6 mm between the pinch Se ae
roller lever (A) and slide lever (A) is obtained.
. Retighten the two screws and secure them with a drop
of locking paint.
Pinch Roller Lever (A)
Slide Lever (A)
Viewed from bottom of transport chassis
Fig. 5-4 Pinch roller positioning adj. location
Head Solenoid
Pinch Roller
Solenoid
Solenoid Mounting Screws
T-1481
Fig. 5-5 Head/pinch roller solenoid adjustments
