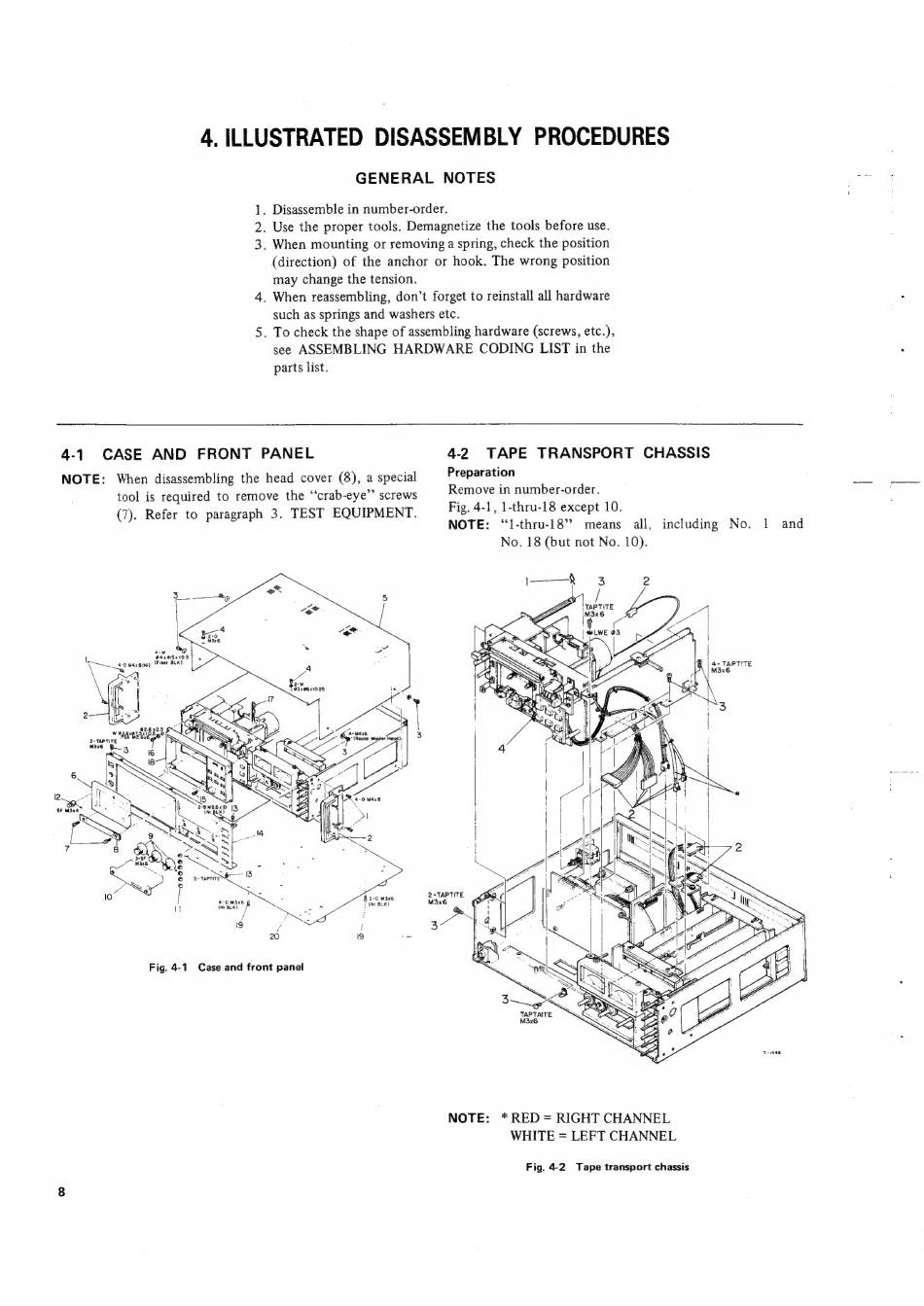

4, ILLUSTRATED DISASSEMBLY PROCEDURES
GENERAL NOTES
1. Disassemble in number-order.
2. Use the proper tools. Demagnetize the tools before use.
3. When mounting or removing a spring, check the position
(direction) of the anchor or hook. The wrong position
may change the tension.
4. When reassembling, don't forget to reinstall all hardware
such as springs and washers etc.
5. To check the shape of assembling hardware (screws, etc.),
see ASSEMBLING HARDWARE CODING LIST in the
parts list.
4-1 CASE AND FRONT PANEL 4-2. TAPE TRANSPORT CHASSIS
NOTE: When disassembling the head cover (8), a special Preparation
tool is required to remove the ''crab-eye"' screws Remove in number-order.
No. 18 (but not No. 10).
1 gax0i5.105
\
4-0 maxeiniy (Fiber BLK)
@ | 4-TAPTITE
M3x6
wart .
2-TAPTITE
M36
2-TAPTITE
fha-0 wae Rel
PON: BLK
ig
Fig. 4-1 Case and front panel
NOTE: * RED = RIGHT CHANNEL
WHITE = LEFT CHANNEL
Fig. 4-2 Tape transport chassis
