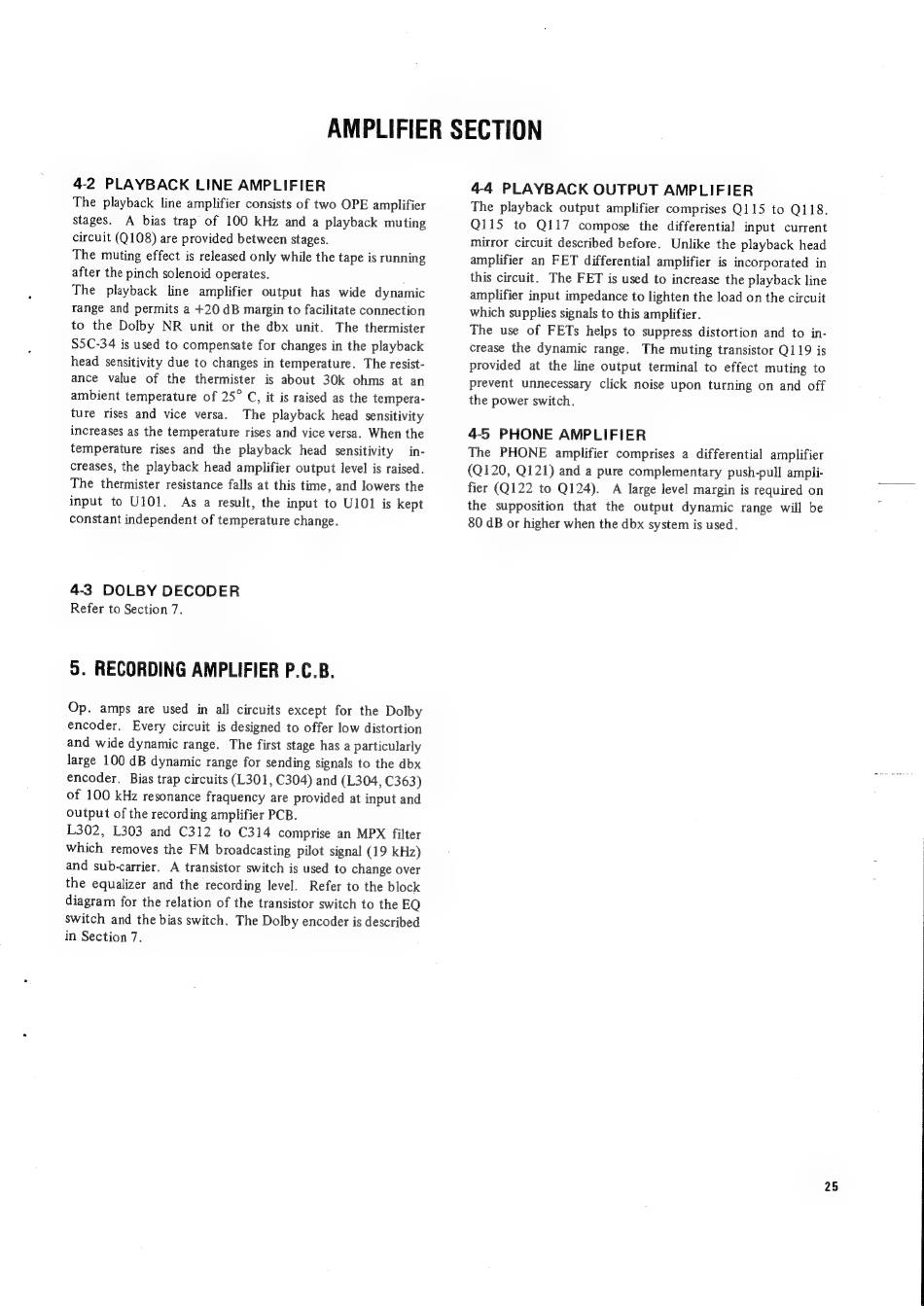

AMPLIFIER SECTION
4-2 PLAYBACK
LINE AMPLIFIER
4-3
DOLBY
DECODER
Refer to Section 7.
5. RECORDING AMPLIFIER P.C.B.
4-4 PLAYBACK OUTPUT AMPLIFIER
4-5 PHONE AMPLIFIER
The PHONE
amplifier comprises a differential amplifier
(Q120, Q121) and a pure complementary push-pull ampli-
fier (Q122 to Q124).
A large level margin is required on
the supposition
that the output dynamic
range will be
80 dB or higher when the dbx system is used.
