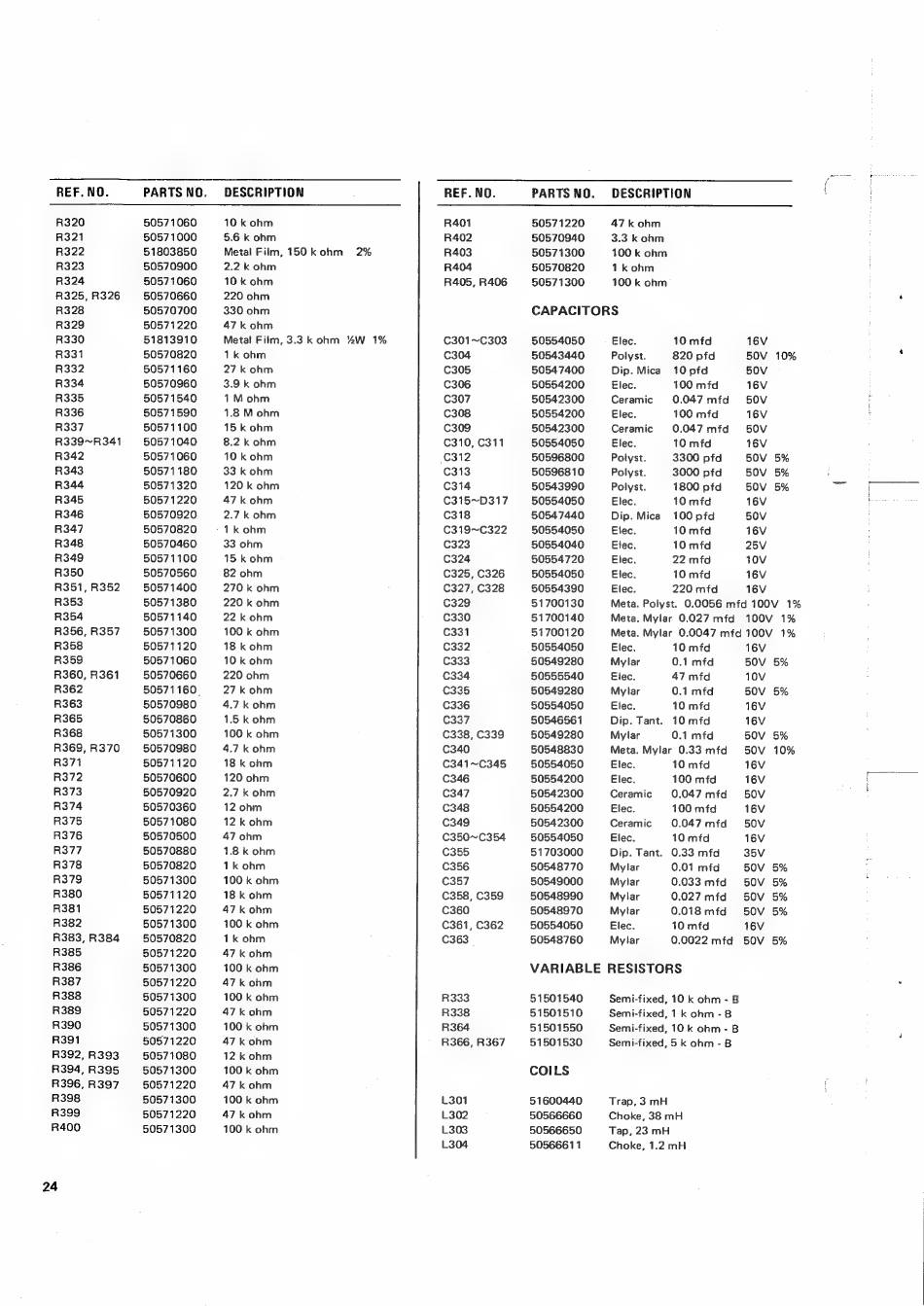

Teac C-1 Service Manual page 88

REF. NO. PARTS NO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
R320 50571060 10 k ohm R401 50571220 47 k ohm
R321 50571000 5.6 k ohm R402 50570940 3.3 k ohm
R322 51803850 Metal Film, 150 kohm 2% R403 50571300 100 k ohm
R323 50570900 2.2 k ohm R404 50570820 1kohm
R324 50571060 10 k ohm R405, R406 50571300 100 k ohm
R325,R326 50570660 220 ohm
R328 50570700 330 ohm CAPACITORS
R329 50571220 47k ohm
R330 51813910 Meta! Film, 3.3 k ohm %W 1% C301~C303 50554050 Elec. 10 mfd 16V
R331 50570820 1k ohm C304 50543440 Polyst. 820 pfd 50V 10%
R332 50571160 27 k ohm C305 50547400 Dip. Mica 10 pfd 50V
R334 50570960 3.9 k ohm C306 50554200 Elec. 100 mfd 16V
R335 50571540 1 Mohm C307 50542300 Ceramic 0.047 mfd 50V
R336 50571590 1.8 M ohm C308 50554200 Elec. 100 mfd 16V
R337 50571100 15 k ohm C309 50542300 Ceramic 0.047mfd 50V
R339~R341 50571040 8.2 k ohm C310, C311 50554050 Elec. 10 mfd 16V
R342 50571060 10 k ohm C312 50596800 Potyst. 3300 pfd 50V 5%
R343 50571180 33 k ohm C313 50596810 Polyst. 3000 pfd 50V 5%
R344 50571320 120 k ohm C314 50543990 Polyst. 1800 pfd 50V 5%
R345 50571220 47k ohm C315~D317 50554050 Elec. 10 mfd 16V
R346 50570920 2.7 k ohm C318 50547440 Dip. Mica 100 pfd 50V
R347 50570820 -1kohm C319~C322 50554050 Elec. 10 mfd 16V
R348 50570460 33 ohm C323 50554040 Elec, 10 mfd 25V
R349 50571100 15 kohm C324 50554720 Elec, 22 mfd 10V
R350 50570560 82 ohm C325, C326 50554050 Elec. 10 mfd 16V
R351,R352 50571400 270 k ohm C327, C328 50554390 Elec. 220 mfd 16V
R353 50571380 220 k ohm C329 51700130 Meta. Polyst. 0.0056 mfd 100V 1%
R354 50571140 22 k ohm C330 51700140 Meta. Mylar 0.027 mfd 100V 1%
R356,R357 50571300 100 k ohm C331 51700120 Meta. Mylar 0.0047 mfd 100V 1%
R358 50571120 18 k ohm C332 50554050 Elec. 10 mfd 16V
R359 50571060 10 k ohm C333 50549280 Mylar 0.1 mfd 50V 5%
R360, R361 50570660 220 ohm C334 50555540 Elec. 47 mfd 10V
R362 50571160 27kohm C335 50549280 Mylar 0.1 mfd 5OV 5%
R363 50570980 4.7 k ohm C336 50554050 Elec. 10 mfd 16V
R365 50570860 1.5 k ohm C337 50546561 Dip. Tant. 10 mfd 16V
R368 50571300 100 k ohm C338, C339 50549280 Mylar 0.1 mfd 50V 5%
R369,R370 50570980 4.7 k ohm C340 50548830 Meta. Mylar 0.33 mfd 50V 10%
R371 50571120 18 k ohm C341~C345 50554050 Elec. 10 mfd 16V
R372 50570600 120 ohm C346 50554200 Elec. 100 mfd 16V
R373 50570920 2.7 k ohm C347 50542300 Ceramic 0.047 mfd 50V
R374 50570360 12 ohm C348 50554200 Elec. 100 mfd 16V
R375 50571080 12 k ohm C349 50542300 Ceramic 0.047mfd 50V
R376 50570500 47 ohm C350~C354 50554050 Elec. 10 mfd 16V
R377 50570880 1.8 k ohm C355 51703000 Dip. Tant. 0.33 mfd 35V
R378 50570820 1k ohm C356 50548770 Mylar 0.01 mfd 50V 5%
R379 50571300 100 k ohm C357 50549000 Mylar 0.033 mfd 50V 5%
R380 50571120 18 k ohm C358, C359 50548990 Mylar 0.027 mfd 50V 5%
R381 50571220 47 k ohm C360 50548970 Mytar 0.018 mfd 50V 5%
R382 50571300 100 k ohm C361, C362 50554050 Elec. 10 mfd 16V
R383,R384 50570820 1k ohm C363 50548760 Mylar 0.0022 mfd 50V 5%
R385 50571220 47 k ohm
R386 50571300 100 k ohm VARIABLE RESISTORS
R387 50571220 47k ohm
R388 50571300
100 k ohm
R333 51501540
Semi-fixed, 10 k ohm - B
R389 50571220 47k ohm R338 51501510 Semi-fixed, 1k ohm - B
R390 50571300 100 k ohm R364 51501550 Semi-fixed, 10 k ohm - B
R391 50571220 47 k ohm R366, R367 51501530 Semi-fixed, 5 k ohm -B
R392,R393 50571080 12 kohm
R394,R395 50571300 100 k ohm COILS
R396,R397 50571220 47 k ohm
R398 50571300 100 k ohm L301 51600440 Trap, 3 mH
R399
50571220 47 k ohm
L302
50566660 Choke, 38 mH
R400 50571300 100 k ohm L303 50566650 Tap, 23 mH
L304 50566611 Choke, 1.2 mH
