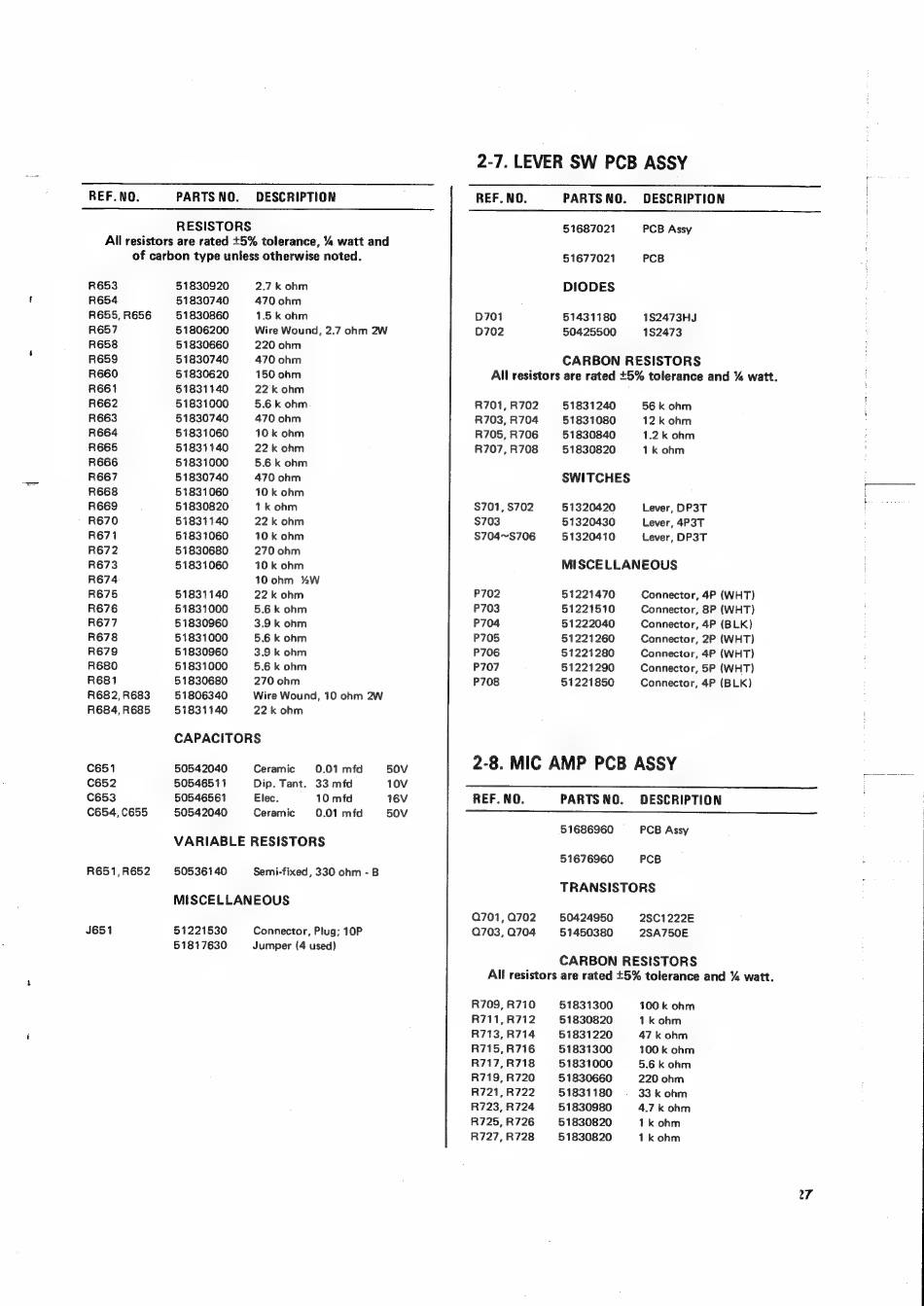

REF.NQ. PARTS NO. DESCRIPTION
RESISTORS
All resistors are rated +5% tolerance, 4% watt and
of carbon type unless otherwise noted.
R653 51830920 2.7 k ohm
R654 51830740 470 ohm
R655, R656 51830860 1.5 k ohm
R657 51806200 Wire Wound, 2.7 ohm 2W
R658 51830660 220 ohm
R659 51830740 470 ohm
R660 51830620 150 ohm
R661 51831140 22k ohm
R662 51831000 5.6 k ohm
R663 51830740 470 ohm
R664 51831060 10 k ohm
R665 51831140 22 k ohm
R666 51831000 5.6 k ohm
R667 51830740 470 ohm
R668 51831060 10 k ohm
R669 51830820 1k ohm
R670 51831140 22 k ohm
R671 51831060 10 k ohm
R672 51830680 270 ohm
R673 51831060 10 k ohm
R674 10 ohm %W
R675 51831140 22 k ohm
R676 51831000 5.6 k ohm
R677 51830960 3.9 k ohm
R678 51831000 5.6 k ohm
R679 51830960 3.9 k ohm
R680 51831000 5.6 k ohm
R681 51830680 270 ohm
R682, R683 51806340 Wire Wound, 10 ohm 2W
R684, R685 51831140 22 k ohm
CAPACITORS
C651 50542040 Ceramic 0.01 mfd 50V
C652 50546511 Dip. Tant. 33 mfd 10V
C653 50546561 Elec. 10 mfd 16V
C654, C655 50542040 Ceramic 0.01 mfd 50V
VARIABLE RESISTORS
R651,R652 50536140 Semi-fixed, 330 ohm -B
MISCELLANEOUS
J651 51221530 Connector, Plug; 10P
51817630 Jumper (4 used)
2-7. LEVER SW PCB ASSY
REF.NO. PARTS NO. DESCRIPTION
51687021 PCB Assy
51677021 PCB
DIODES
D701 51431180 182473HJ
D702 50425500 182473
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt.
R701, R702 51831240 56 k ohm
R703, R704 51831080 12 k ohm
R705, R706 51830840 1.2 k ohm
R707, R708 51830820 1k ohm
SWITCHES
$701, S702 51320420 Lever, DP3T
$703 51320430 Lever, 4P3T
$704~S706 51320410 Lever, DP3T
MISCELLANEOUS
P702 51221470 Connector, 4P (WHT)
P703 51221510 Connector, 8P (WHT)
P704 51222040 Connector, 4P (BLK)
P705 51221260 Connector, 2P (WHT)
P706 51221280 Connector, 4P (WHT)
P707 51221290 Connector, 5P (WHT)
P708 51221850 Connector, 4P (BLK)
2-8. MIC AMP PCB ASSY
REF. NO. PARTS NO. DESCRIPTION
51686960 PCB Assy
51676960 PCB
TRANSISTORS
Q701, Q702 50424950 28C1222E
Q703, Q704 51450380 2SA750E
CARBON RESISTORS
All resistors are rated 5% tolerance and % watt.
R709, R710 51831300 100 k ohm
R711,R712 51830820 1k ohm
R713, R714 51831220 47 k ohm
R715,R716 51831300 100 k ohm
R717,R718 51831000 5.6 k ohm
R719, R720 51830660 220 ohm
R721,R722 51831180 33 k ohm
R723, R724 51830980 4.7 k ohm
R725, R726 51830820 1k ohm
R727, R728 51830820 1kohm
27
