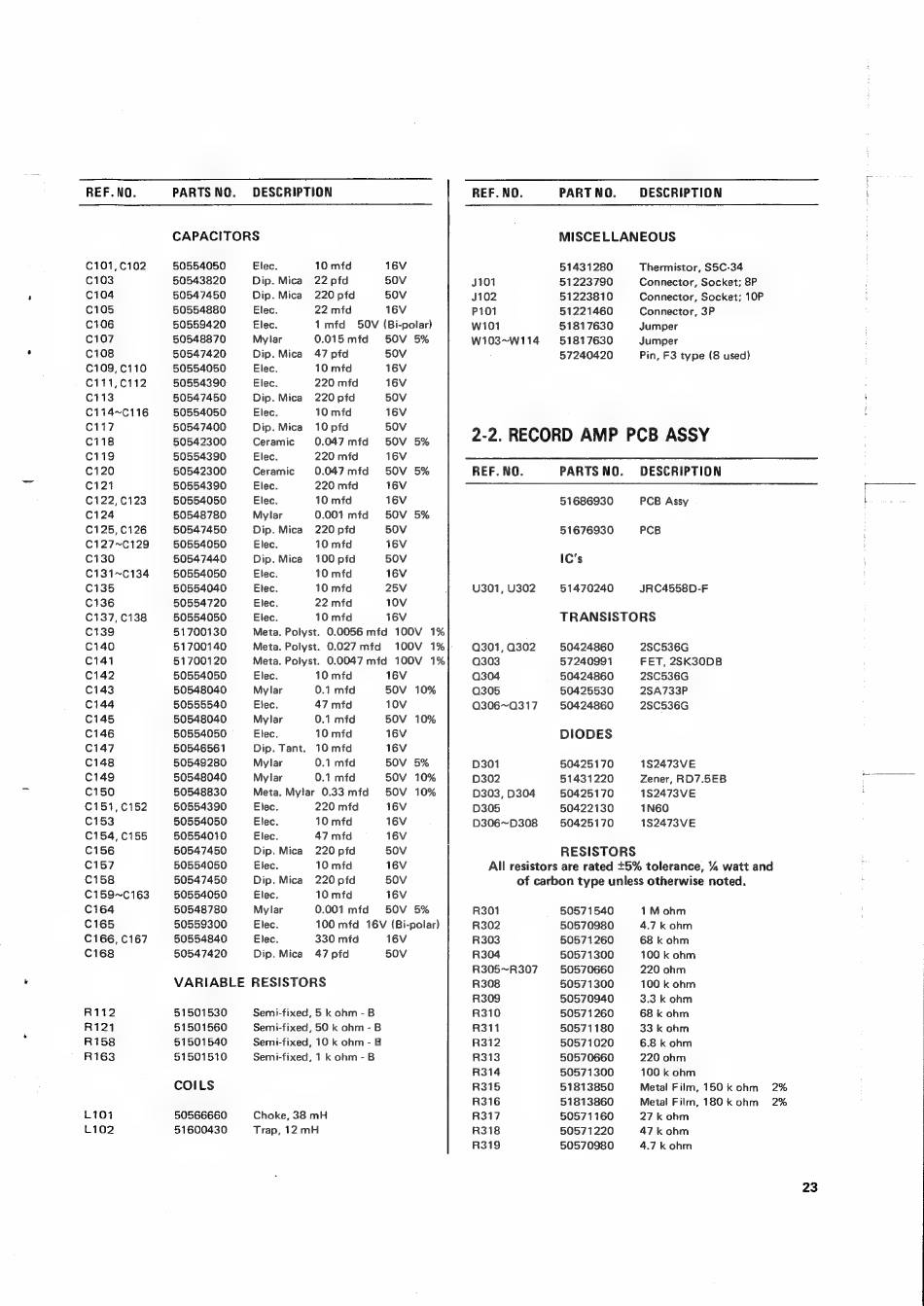

Teac C-1 Service Manual page 87

REF.NO. PARTS NO. DESCRIPTION
CAPACITORS
C101,C102 50554050 Elec. 10 mfd 16V
C103 50543820 Dip. Mica 22 pfd 50V
C104 50547450 Dip. Mica 220 pfd 50V
C105 50554880 Elec. 22 mfd 16V
C106 50559420 Elec. 1mfd 5O0V (Bi-polar)
C107 50548870 My lar 0.015mfd 50V 5%
C108 50547420 Dip. Mica 47 pfd 50V
C109, C110 50554050 Elec. 10 mfd 16V
C111,C0112 50554390 Elec. 220 mfd 16V
C113 50547450 Dip. Mica 220 pfd 50V
C114~C116 50554050 Elec. 10 mfd 16V
C117 50547400 Dip. Mica 10 pfd 50V
C118 50542300 Ceramic 0.047 mfd 50V 5%
c119 50554390 Elec. 220 mfd 16V
C120 50542300 Ceramic 0.047 mfd 50V 5%
C121 50554390 Elec. 220 mfd 16V
C122,C123 50554050 Elec. 10 mfd 16V
C124 50548780 Mylar 0.001 mfd 50V 5%
C125, C126 50547450 Dip. Mica 220 pfd 50V
C127~C129 50554050 Elec. 10 mfd 16V
C130 50547440 Dip. Mica 100 pfd 50V
C131~C134 50554050 Elec. 10 mfd 16V
C135 50554040 Elec. 10 mfd 25V
C136 50554720 Elec. 22 mfd 10V
C137, C138 50554050 Elec. 10 mfd 16V
C139 51700130 Meta. Polyst. 0.0056 mfd 100V 1%
C140 51700140 Meta. Polyst. 0.027 mfd 100V 1%
C141 51700120 Meta. Polyst. 0.0047 mfd 100V 1%
C142 50554050 Elec. 10 mfd 16V
C143 50548040 My lar 0.1 mfd 50V 10%
C144 50555540 Elec. 47 mfd 10V
C145 50548040 Mylar 0.1 mfd 50V 10%
C146 50554050 Elec. 10 mfd 16V
C147 50546561 Dip. Tant. 10 mfd 16V
C148 50549280 Mylar 0.1 mfd 50V 5%
C149 50548040 Mylar 0.1 mfd 50V 10%
C150 50548830 Meta. Mylar 0.33 mfd 50V 10%
C151, C152 50554390 Elec. 220 mfd 16V
C153 50554050 Elec. 10 mfd 16V
C154, C155 50554010 Elec. 47 mfd 16V
C156 50547450 Dip. Mica 220 pfd 50V
C157 50554050 Elec. 10 mfd 16V
C158 50547450 Dip. Mica 220 pfd 50V
C159~C163 50554050 Elec. 10 mfd 16V
C164 50548780 My lar 0.001 mfd 50V 5%
C165 50559300 Elec. 100 mfd 16V (Bi-polar)
C166, C167 50554840 Elec, 330 mtd 16V
C168 50547420 Dip. Mica 47 pfd 50V
VARIABLE RESISTORS
R112 51501530 Semi-fixed, 5 k ohm - B
R121 51501560 Semi-fixed, 50 k ohm - B
R158 51501540 Semi-fixed, 10 k ohm - B
R163 51501510 Semi-fixed, 1k ohm -B
COILS
L101 50566660 Choke, 38 mH
L102 51600430 Trap, 12 mH
REF.NO.
J101
J102
P101
w101
W103~W114
PART NO. DESCRIPTION
MISCELLANEOUS
51431280
51223790
51223810
51221460
51817630
51817630
57240420
Thermistor, S5C-34
Connector, Socket; 8P
Connector, Socket; 10P
Connector, 3P
Jumper
Jumper
Pin, F3 type (8 used)
2-2. RECORD AMP PCB ASSY
REF. NO.
U301, U302
Q301, 0302
Q303
Q304
Q305
Q306~0317
D301
D302
D303, D304
D305
D306~D308
PARTS NO.
51686930
51676930
IC's
51470240
DESCRIPTION
PCB Assy
PCB
JRC4558D-F
TRANSISTORS
50424860
57240991
50424860
50425530
50424860
DIODES
50425170
51431220
50425170
50422130
50425170
RESISTORS
2SC536G
FET, 2SK30DB
2SC536G
2SA733P
2SC536G
182473VE
Zener, RD7.5EB
182473VE
1N60
182473VE
All resistors are rated +5% tolerance, 4 watt and
of carbon type unless otherwise noted.
R301
R302
R303
R304
R305~R307
R308
R309
R310
R311
R312
R313
R314
R315
R316
R317
R318
R319
50571540
50570980
50571260
50571300
50570660
50571300
50570940
50571260
50571180
50571020
50570660
50571300
51813850
51813860
50571160
50571220
50570980
1M ohm
4.7 k ohm
68 k ohm
100 k ohm
220 ohm
100 k ohm
3.3 k ohm
68 k ohm
33 k ohm
6.8 k ohm
220 ohm
100 k ohm
Metal Film, 150 k ohm
Metal Film, 180 k ohm
27 k ohm
47 k ohm
4.7 k ohm
2%
2%
23
