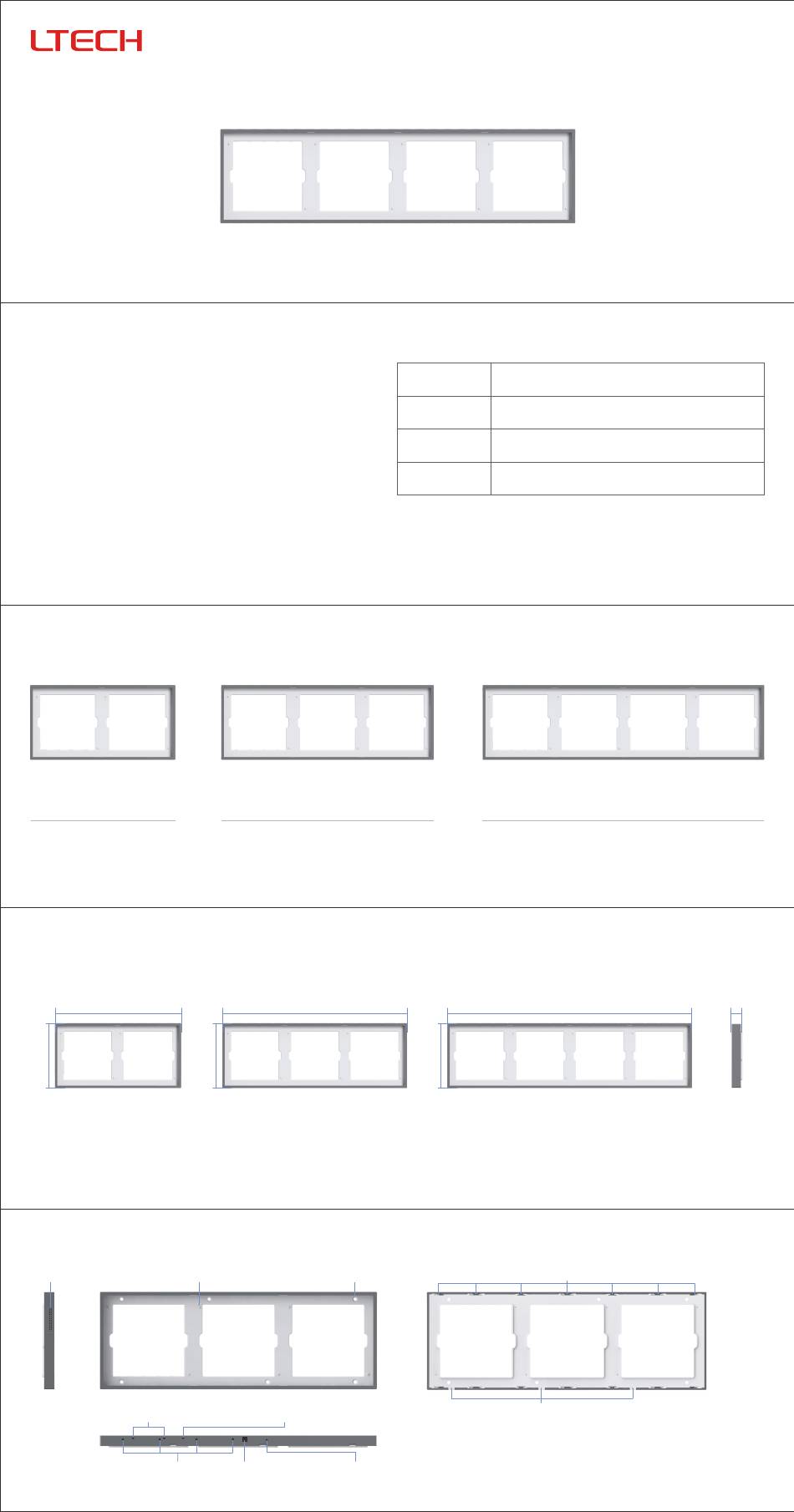

Product Introduction
Make panels look more stunning, more organized.
Panel mounting frame can be used to solve multiple installation issues,
such as installing panels upside down, space inconsistency between
panels, not aligning with other panels on the same row.
Combine multiple panels together to meet your different needs.
Freely combine Super+ series panels into a whole part to create your
exclusive control system and use it to perform various scenarios.
Multiple colors available to fit different interior design styles.
Grey, gold and white are selectable.
Specifications
Model
SP2
Dimensions
Net weight
180×93×10mm
70g
Product Size
Unit: mm
180
93
Double Panel Mounting Frame
Product Diagram
Speaker holes
Locating point for aligning with a panel
Super Panel 4S microphone holes
Super Panel 6S
microphone holes
Plastic Panel Mounting Frame
(For Double / Triple / Quad Panels)
www.ltech-led.com
Model
SP3
Dimensions
Net weight
266×93×10mm
100g
266
93
Triple PanelMounting Frame
Screw hole
(Only used for installing the frame in a wooden plank)
Super Panel 4S reset hole
Super Panel 6S temperature
Super Panel 6S
and humidity sensor hole
reset hole
Manual
Compatible Panels
Product Name
Super Panel
Super Smart Switch
5-Hole Socket
Note: If you have any questions related to other compatible panel models, please feel free to contact our
authorized distributor or salesman.
Model
Dimensions
352×93×10mm
93
Quad PanelMounting Frame
Note: Super Panel 6S (model: SP-GW-6S) or Super Panel 4S (model: SP-GW-4S) can only be
installed on the far left. Because when speaker, microphone or temperature and humidity
sensor are blocked, some functions will fail to work.
Product Model
SP-GW-6S, SP-GW-4S
S1, S2, S3, SQ, S1 PRO, S2PRO, S3PRO, SQPRO, S6-B
SK5, SK5T
SP4
Net weight
136g
352
Slots
Slots
01
02
10
Side View
03
04
