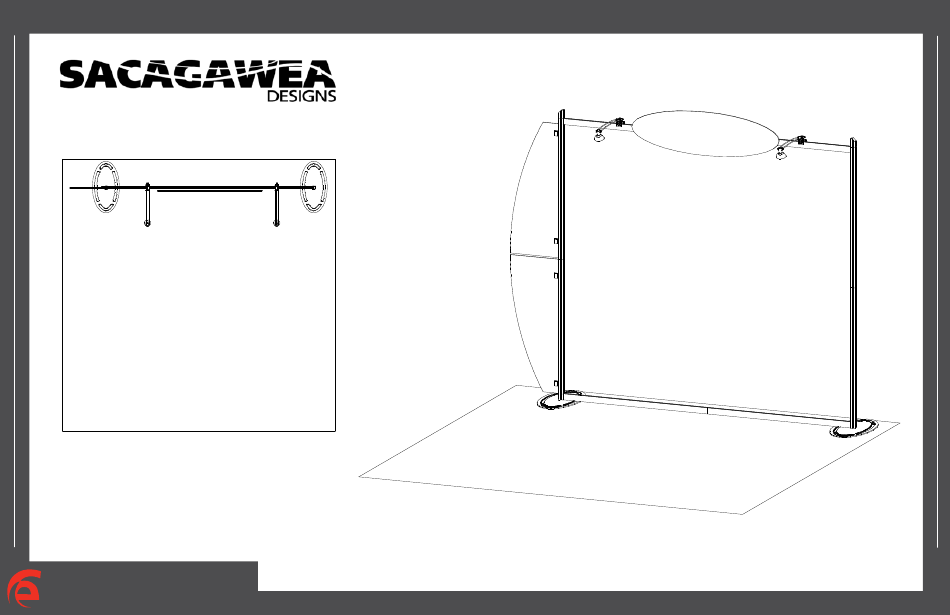

- Page 1 Step 1 Order #XXXXX - Sacagawea - VK-1202 - General Layout 866.652.2100 10’ Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 2...
- Page 2 Step 2 Order #XXXXX - Sacagawea - General Information 866.652.2100 Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Sacagawea displays are created Hex Key Tool Typical Connection Typical Connection specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
-
Page 3: Front View
Step 1 Order #XXXXX - Sacagawea - Backwall Assembly 866.652.2100 Item Qty. Description Steps: Base Plate 1) Attach base plates [1] to lower verticals [2a,3a] with bolts. 2a/2b 42” Vertical Extrusion 2) Connect upper verticals [2b,3b] to lower verticals [2a,3a] with connection bars [b]. 3a/3b 42”... - Page 4 Step 2 Order #XXXXX - Sacagawea - Header, Wing, and Lights Attachment 866.652.2100 Oval Header Wing Attachment Slide A10 Clamp into groove of square extrusion. Steps: 1) Attach wings to clamps and tighten black plastic set screw to secure wings in place. 2) Velcro oval header to top of assembled backwall.
- Page 5 Order #XXXXX - Case Packing Instruction 866.652.2100 Top View of Each Level Halogen Lights Wing Panels Graphics Setup Hardware (2) Base Plates Level 1 Level 2 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
