4.5.2

Down Switch Option 6 - Four Operator Foot Control Only

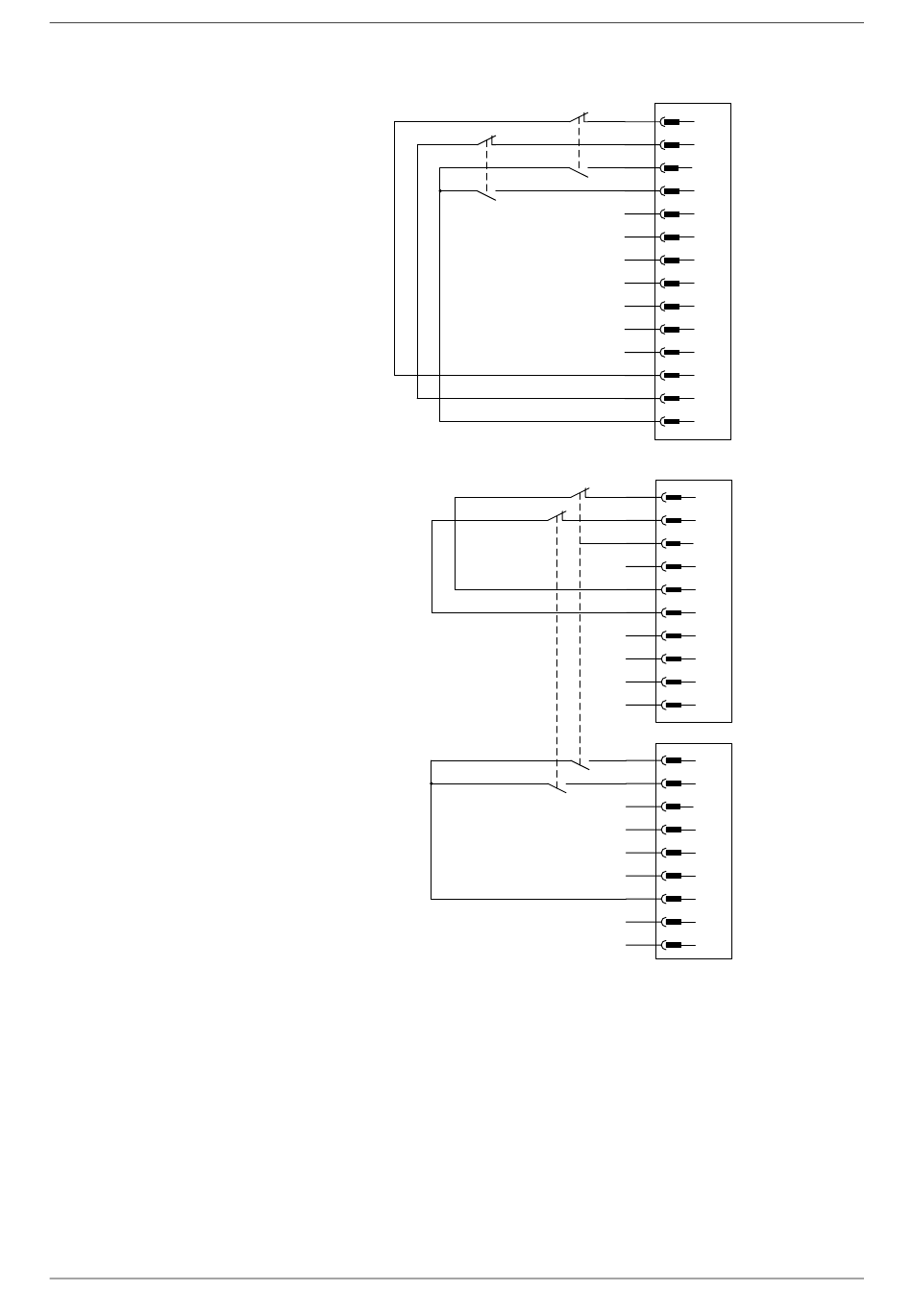

Figure 4-28: Four Operator Foot Control (CN4, CN9 & CN10- FIO04 Connections)
The connections in this option allow four operator stations with foot pedal control on each as
shown in
Figure 4-28
and normally closed (NC) contacts from the foot pedal switches on each of the operator
stations are monitored. The NO contacts are monitored using standard inputs, while the NC
contacts are monitored using safety inputs.
This option provides selection for any two of the four available operator stations with either the
1 Foot - 1 Foot operator mode on one of the stations selected or 2 Foot - 2 Foot on two
stations. For any station mode the CNC must provide information on which station is selected
to initiate down
Page 4-30
Original Language Version: 1.02
Foot Pedal – Down 1
Foot Pedal – Down 2
Foot Pedal – Down 3
Foot Pedal – Down 4
for the FIO04 module. In this application both the normally open (NO)
movement, using the Hand Foot Option variable in ker__e1 (channel 14).
LS-CS-M-023
FIO04 – CN4
X03
1
X04
2
X05
3
X06
4
X07
5
X08
6
X09
7
Y06
8
0VDC
9
Y07
10
0VDC
11
P03
12
P04
13
24VDC
14
FIO04 – CN9
X34
1
X35
2
X36
3
X37
4
P34
5
P35
6
P36
7
P37
8
24VDC
9
0VDC
10
FIO04 – CN10
X38
1
X39
2
X40
3
X41
4
Y08
5
Y09
6
24VDC
7
0VDC
8
0VDC
9
