Lazer Safe PCSS-F Series Technical Manual page 36

PCSS-F Additions Technical Manual

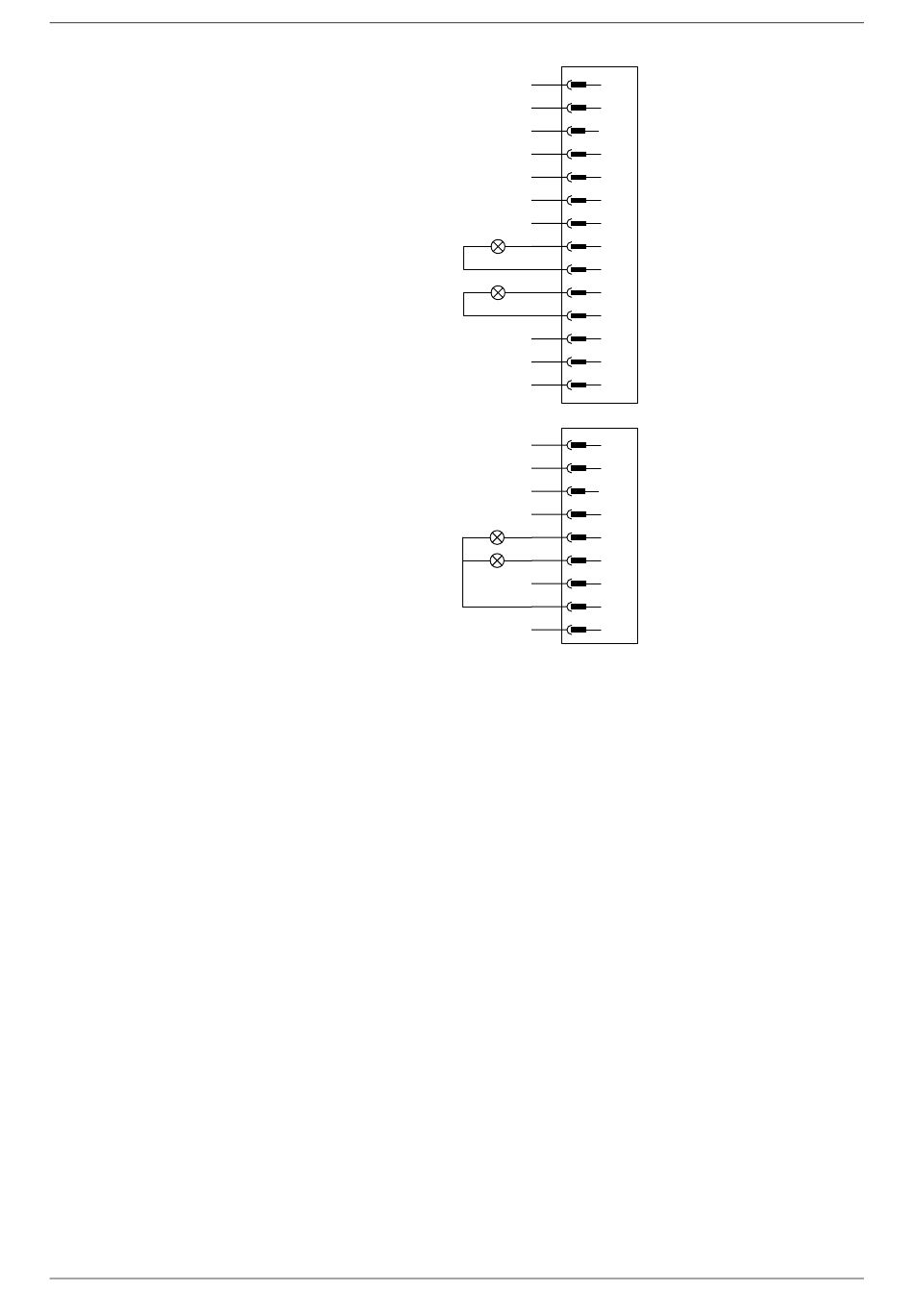

Figure 4-24: Error Reset Option 6 (CN4 - FIO04 Output Connections)
This error reset option is intended for use with down switch options allowing four operator
stations. The error reset function selects the active station for single operator configuration
or station 1 in the dual operator configuration.
4.3.3.1 Option Selection
To select error reset option 6 during the PCSS configuration, set the initial value for the error
reset option selection variable to 6. This will ensure that this option is initialised with all required
inputs activated when the PCSS software is started.
Page 4-26
Original Language Version: 1.02
Station 1 Indicator
Station 2 Indicator
Station 3 Indicator
Station 4 Indicator
FIO04 – CN4
X03
1
X04
2
X05
3
X06
4
X07
5
X08
6
X09
7
Y06
8
0VDC
9
Y07
10
0VDC
11
P03
12
P04
13
24VDC
14
FIO04 – CN10
X38
1
X39
2
X40
3
X41
4
Y08
5
Y09
6
24VDC
7
0VDC
8
0VDC
9
LS-CS-M-023
Released: 03/12/2013
