4.2.2.7 Enable Monitors
This option monitors enables and monitors the outputs required to drive and stop the press.
Two enable outputs are required to allow movement of the pressing beam as shown in
Figure 4-18

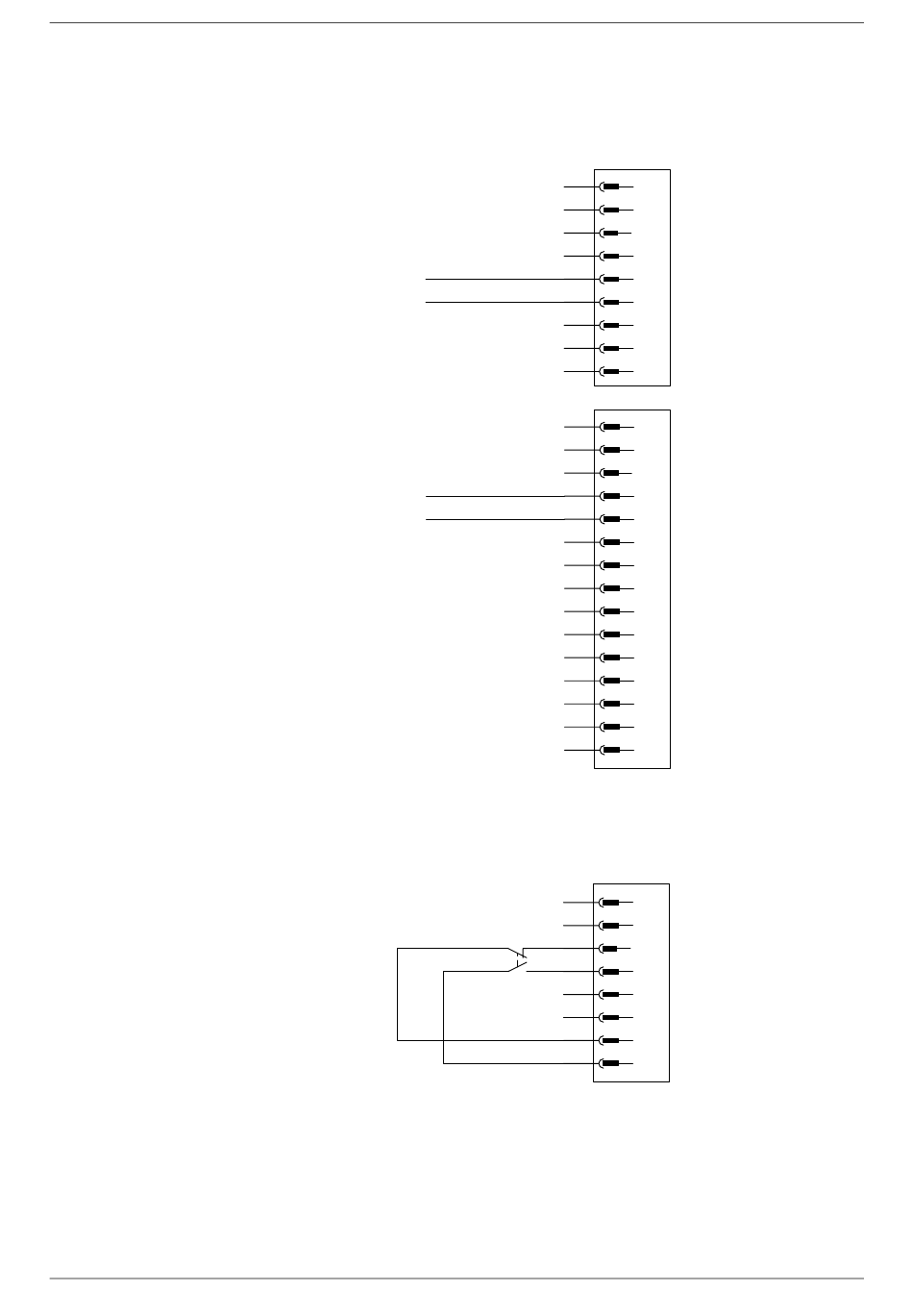

Figure 4-18: Option 7 Enable Monitors (CN10/7 - FIO04 Connections)
4.2.2.8 On Switch Monitor
The ON switch, as illustrated in
stop circuit of the press brake. This ensures that if the ON switch is in the deactivated position
any associated press brake operation is disabled and any control or movement of the pressing
beam can be prevented. The ON switch illustrated in
position.
Page 4-22
Original Language Version: 1.02
below.
Enable 1
Enable 2
Enable 1 Monitor
Enable 2 Monitor
On Switch
Figure 4-19: Option 7 ON Switch (CN5 - FIO04 Connections)
Figure 4-19
FIO04 – CN10
X38
1
X39
2
X40
3
X41
4
Y08
5
Y09
6
24VDC
7
0VDC
8
0VDC
9
FIO04 – CN7
X20
1
X21
2
X22
3
X23
4
X24
5
X25
6
X26
7
X27
8
X28
9
X29
10
X30
11
X31
12
P20
13
24VDC
14
0VDC
15
FIO04 – CN5
X10
1
X11
2
X12
3
X13
4
P10
5
P11
6
P12
7
24VDC
8
for the FIO04, is used to control the emergency
is shown in the deactivated
Figure 4-19
