Technical Support and E-Warranty Certificate www.vevor.com/support

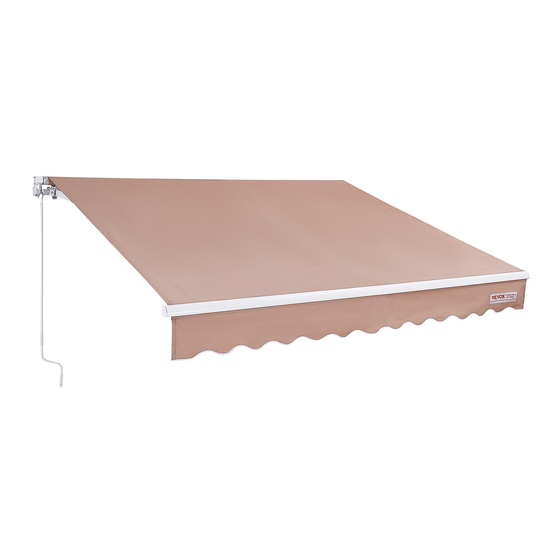

RETRACTABLE PATIO AWNING
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR RA250200
Summary of Contents for VEVOR RA250200
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support RETRACTABLE PATIO AWNING USER MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
-
Page 3: Specifications
Do not use abrasive materials or cleaners. Carelessness causes fire-keep open flames away from covers. 2 people are recommended for mounting this product. Please retain these instructions for future reference. SPECIFICATIONS Model RA250200 Product Size 8×7ft Color khaki Model RA300250 Product Size 10×8ft... -
Page 4: Parts List
PARTS LIST... - Page 5 Please prepare the following tools before installation (not included with the product). Power drill Tape Wrench Rubber Hammer WARNING Please read the instruction manual carefully before using it. Please assemble this product strictly according to the instructions. Please double-check that all parts of the package contents are intact. The mechanical arm will pop out immediately after the safety casing is removed, which will cause damage to the assembler.
-
Page 6: Assembly Steps
Assembly steps Roller assemble: Insert the roller connector (A-2) into the right roller (A-3) and secure it with the screw (S). Connect the left pulley (A-1) with the pulley connector (A-2) and fix it with the screw (S). Now you have a full-length roller. - Page 7 Front Pole Assemble: Insert Front Pole Connector (D-2) into Right Front Pole (D-3) and secure it with screw (S). Connect the left front rod (D-1) to the connector (D-2) and secure it with the screw (S). You now have a full-length front bar.
- Page 8 Unfold the awning fabric. You will have a large piece of fabric (C) and a valance with a scalloped edge. You will also have three strips, two thick and one thinner. Insert the thick and thin strips into both ends of the large piece of fabric.
- Page 9 Put the end of the fabric with the thin strip in the groove of the roller. Then put the end with the thick strip in the cut of the front bar and put the end of the flounce with the thick strip in the other cut of it.
- Page 10 Slide the blocker (l) and arm-bar connector (K) into the passage / slot in the wedge-shaped front bar, Cut off the excess part of the long strip. Then pull the left and right plastic covers(H) on each end of the rod, and then screw in the screw (R) on the plastic cover to secure the cover (H) and strip (T) in place.
- Page 12 Slightly loosen the nut so that the parts can be moved left and right for further assembly. Assembly of the entire awning: Insert the square shaft with fabric into the square hole of the gear unit and connect it to the round shaft on the right-hand side with a hammer. Loosen the nut slightly so that the parts can be moved left and right for further assembly.
- Page 13 The next step is to unlock the security straps. We need to firmly grip the limb of the movement arm bar with our hands to prevent the limb of the movement arm bar from injuring people if it pops out of the safety band.
-
Page 15: Installation Procedure
Please prepare the following tools before installation (not included with the product). Installation Procedure: 1. Measure the distance along the wall where it can be placed. Drill holes for wall brackets on the wall according to the installation distances and height of the wall brackets. The diameter and depth of the hole must be the same as the expansion bolts. - Page 16 Installation distance between wall brackets Awning < 3m Only 2 wall brackets for each end of the torsion bars. 2 wall brackets at each end of the torsion bar, a middle Awning 3.5m ~ 4.5m bracket in between the distance of 2 arm shoulders (arm brackets refer to steps of assembly 6) 2 wall brackets at each end of the torsion bar, 2 middle brackets divide into equal lengths in between the distance...
- Page 17 5. Install the awning on the wall brackets according to "Installation distances between wall brackets" above, put the original bolts on the wall brackets and tighten them. Finally, fasten all expansion bolts. CAUTION: Proper location of the brackets is the most important aspect of the awning installation.
- Page 18 FAQ: What if the fabric wraps unevenly or the arms cannot open at the same time? Answer: Check the stability of the two arms and adjust the front handlebar wrist of the faster arm outwards accordingly. ◎Hang the Hand Crank on the Rotation Ring. You can rotate the Hand Crank in a Clockwise/Anticlockwise direction to stretch/contract the awning flexibly.
- Page 19 Questions Answers When I open the awning, why the A1: There are two possible reasons for uneven front bar will pull the Fabric and product stretching: Valance toward one end? 1: The fabric is not evenly rolled. 2: The distance between the two ends of the bent arm is inconsistent.
- Page 20 Technical Support and E-Warranty Certificate www.vevor.com/support...
