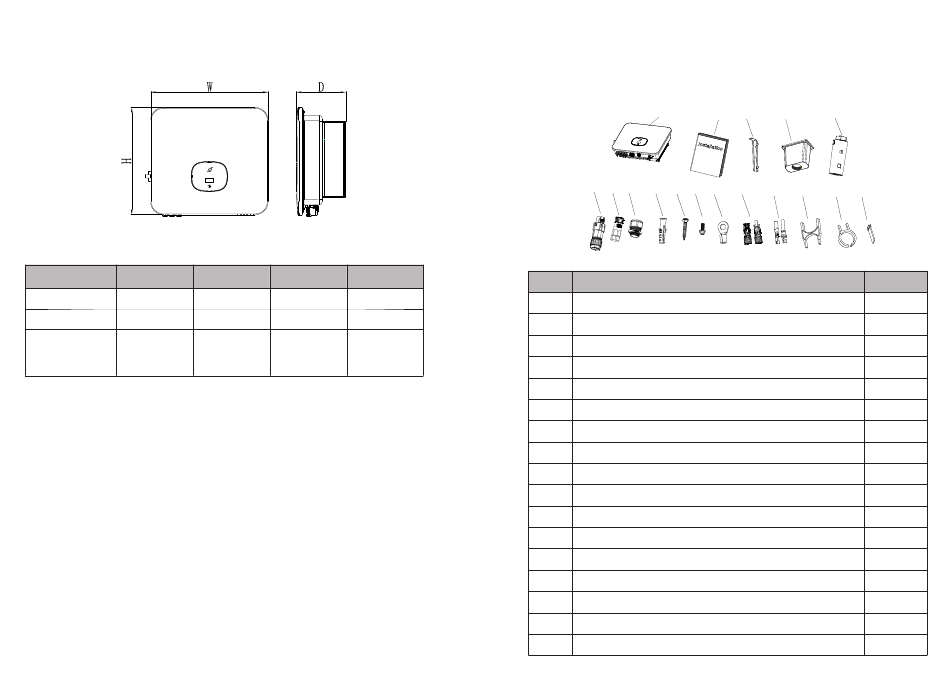

3.2 Dimensions
Size and weight:
Model Height (H)
MOD 3-6KTL3-X 387mm
MOD 7-11KTL3-X 387mm
- -
MOD 12 15KTL3
387mm
X & MOD 7-
11KTL3-X-AU
3.3 Storage Environment
If you want to store the inverter in a warehouse, you must choose a suitable location for
the inverter.
The equipment must be stored in its original packaging.
Ø
The storage temperature should always be between -25° C and +60° C, and the
Ø
storage relative humidity should be less than 90%.
If you need to store a batch of inverters, the maximum number of layers of the
Ø
original carton is 4.
9
Fig 3.2
Width (W) Depth (D) Weight
425mm 147mm 12.5kg
425mm 178mm 14kg
425mm 178mm 16.0kg
Unpacking inspection
Before opening the inverter package,please check whether the outer package is
damaged.After unpacking,please check whether the appearance of the inverter is
damaged or lack of accessories.If there is damage or missing parts,please contact the
dealer.
A
F G H I J K
No. Description
A Inverter
B Quick Installation Manual
C Wall mount
D AC waterproof cover(just for Vietnam models)
E Datalogger
F COM port signal connector
G AC connector
H Waterproof connector(just for Vietnam models)
I Plastic expansion tube
J Expansion screw
K Security screw
L AC customer's terminal(just for Vietnam models)
M PV terminal shell
N PV terminal core
O COM port removal tool
P PV terminal removal tool
Q AC terminal block insulation partition(just for Vietnam models)
B C D E
L M N O P Q
Fig 4.1
Qty.
3/3
3/3
4
1
1
1
1
1
1
1
1
3
3
1
5
1
1
1
10
