Notes:1) the flat end of the exhaust pipe joints must be snapped into place.
2) The pipe cannot be distorted nor has substantial turning (greater than 45 °).
Keep the ventilation of the exhaust pipe not blocked.

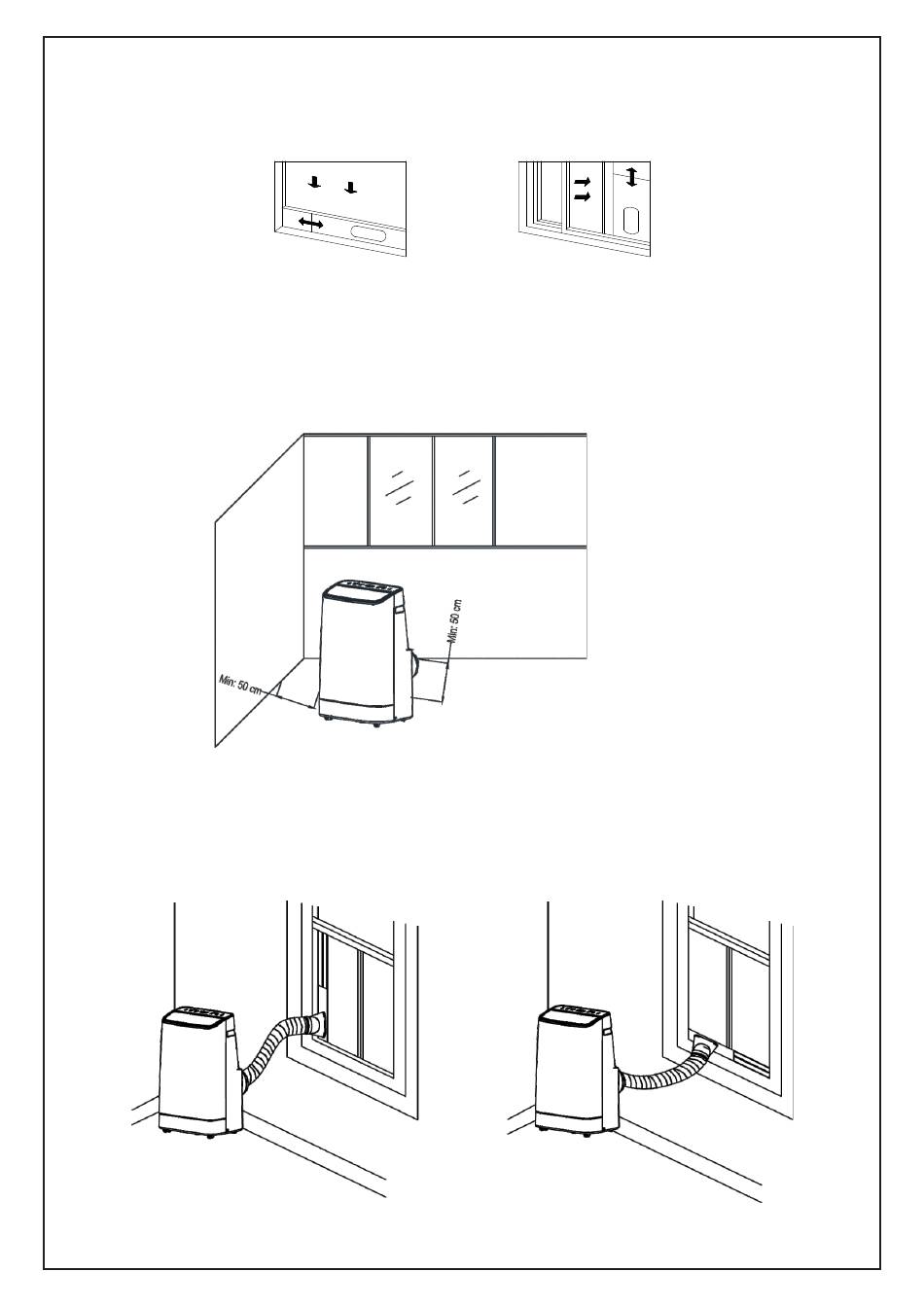

1.3 Install the body
1) Move the machine with installed heat pipe and fittings before the window, and the
distance between the body and walls or other objects shall be least 50 cm (as
shown in Fig.4).
3) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole
of the window sealing plate assembly (as shown in Fig.5 and Fig.6) .
Notes: 1. The flat end of the exhaust pipe joints must be snapped into place.
2. The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the
ventilation of the exhaust pipe not blocked.
Figure 5
Figure 2
Figure 4
10
Figure 3
Figure 6
