AWM Dynamic Arm for Post

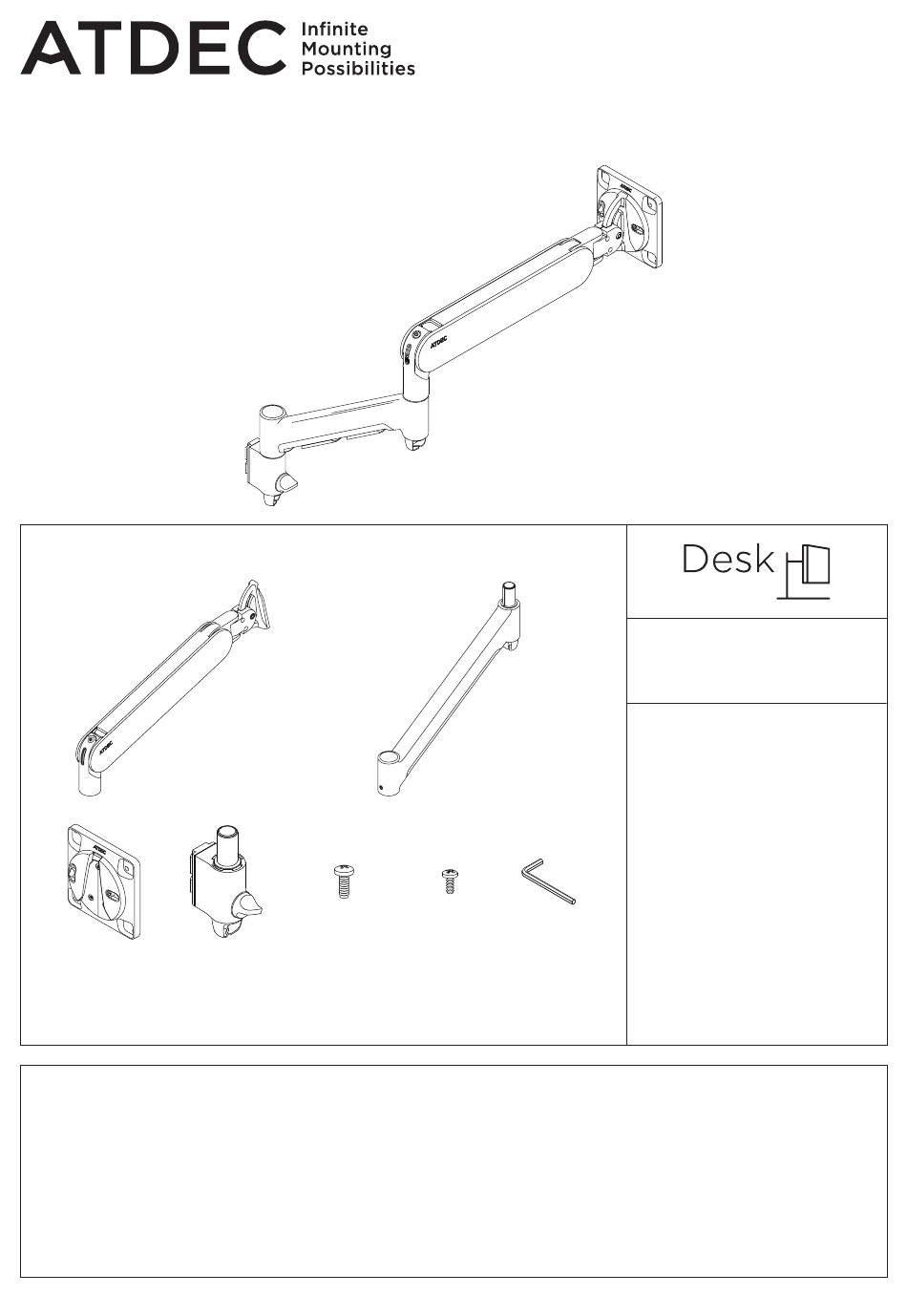

COMPONENT CHECKLIST
C
VESA Head
Post Clamp
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove or throw away the plastic sleeve on the arm link and channel clamp.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is compatible with Atdec AWM Series Posts and Wall Channels
! This product is not suitable for outdoor use or mobile applications
! Do not over-tighten screws and adjustment points on product.
! Periodic adjustment to counterbalance and tilt tension may be required.
! VESA mounted accessories (such as mini PC brackets and mounts), offset VESA locations, and unevenly weighted monitors
(relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount
even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
A
Dynamic Link
(x1)
D
E
Screw
(x1)
M4x10mm
(x4)
B
Lower Link
(x1)
F
G
Security
4mm
screw
Hex Key
(x1)
(x1)
Installation Guide
AWM-ADTC
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
Flat Monitors
2 - 8kg
(4.4 - 17.6lbs)
Curved Monitors
2 - 8kg
(4.4 - 17.6lbs)
Curved monitors with an overall depth
up to 140mm (5.5").
Monitor weight should be within the
weight range of all modular elements
that make up the complete monitor
mounting solution.
AWM-ADTC Page 1 of 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the AWM-ADTC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atdec AWM-ADTC

  • Page 1 (relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
  • Page 2 3.1 Push two arm links together. 3.3 Tighten set screw with 3.2 Ensure links are fully Do not remove the plastic sleeve. pushed together. 4mm hex key. NOTE: Check that arm rotation is smooth after tightening. AWM-ADTC Page 2 of 5...
  • Page 3 6.1 Fit monitor onto arm. 6.2 OPTIONAL SECURITY SCREW If desired, once monitor is attached to the arm, install the security screw which disables the release switch. NOTE: VESA Head will automatically latch onto the tilt link. AWM-ADTC Page 3 of 5...
  • Page 4 TIP! When installing SCREW multiple arms with the same monitor, Lighter use the setting on Monitors the counterbalance adjustment gauge to COUNTER- quickly ‘pre-set’ other BALANCE arms (fine-tuning ADJUSTMENT may be required after GAUGE pre-setting). Heavier Monitors AWM-ADTC Page 4 of 5...
  • Page 5 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20231110...
