Atdec AW-ORA-F Installation Manual

Ora Monitor Arm F-clamp
Installation Guide

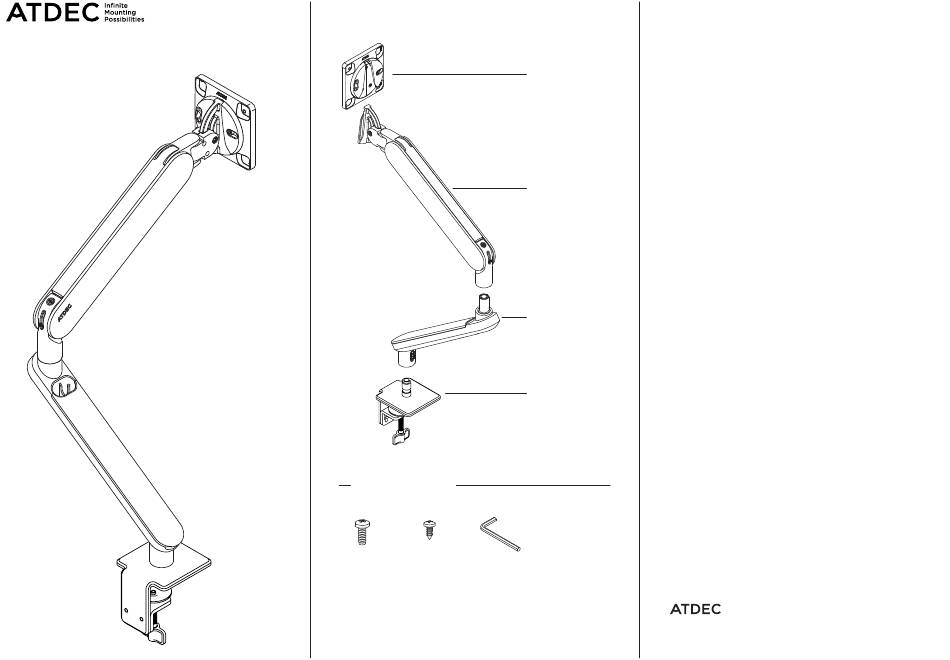

COMPONENT CHECKLIST
AW-ORA-F
Hardware & Tools
M4x10
Screw
(x4)
VESA Plate (x1)
Upper Link (x1)
Lower Link (x1)
F Clamp (x1)
Security 4mm
Screw Hex Key
(x1) (x1)
CAPACITY
Weight: 2 - 8kg (4.4 - 17.6lb)
Display Size: Up to 35" (curved or flat)
(Larger monitors within the weight
capacity may be compatible, please
contact Atdec for advice).
WARRANTY
10 Years Limited
TOOLS REQUIRED
Phillips head screwdriver
IMPORTANT INFORMATION
•Install Ora Monitor Arm as per these installation
instructions.
•The manufacturer accepts no responsibility for
incorrect installation.
•Do not over-tighten screws and adjustment points on
product.
•This product is not suitable for outdoor use.
•Do not use this product for mobile applications.
•Please ensure desk structure and mounting surface
are of sufficient strength to support this product and
mounted equipment.
•Deep devices (such as all-in-one PCs), VESA mounted
accessories (such as mini PC brackets and mounts),
and offset VESA locations exert additional leverage
that can exceed the capacity of the mount even
though the monitor weight may be within the stated
range. Please contact Atdec if you would like further
information.
•Suits displays with VESA mounting hole patterns
75x75 and 100x100. Spacer kit (sold separately) may
be required for recessed 75x75 hole patterns.
•For edge clamp Installations, ensure the monitor is
always positioned over the work surface. Do not
position the monitor beyond the rear edge of the
work surface.
•Periodic adjustment to counterbalance and tilt tension
may be required.
No portion of this document or any artwork contained herein should be
reproduced in any way without the express written consent of Atdec Pty
Ltd. Due to continuing product development, the manufacturer reserves
the right to alter specifications without notice. ©20230210
