IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

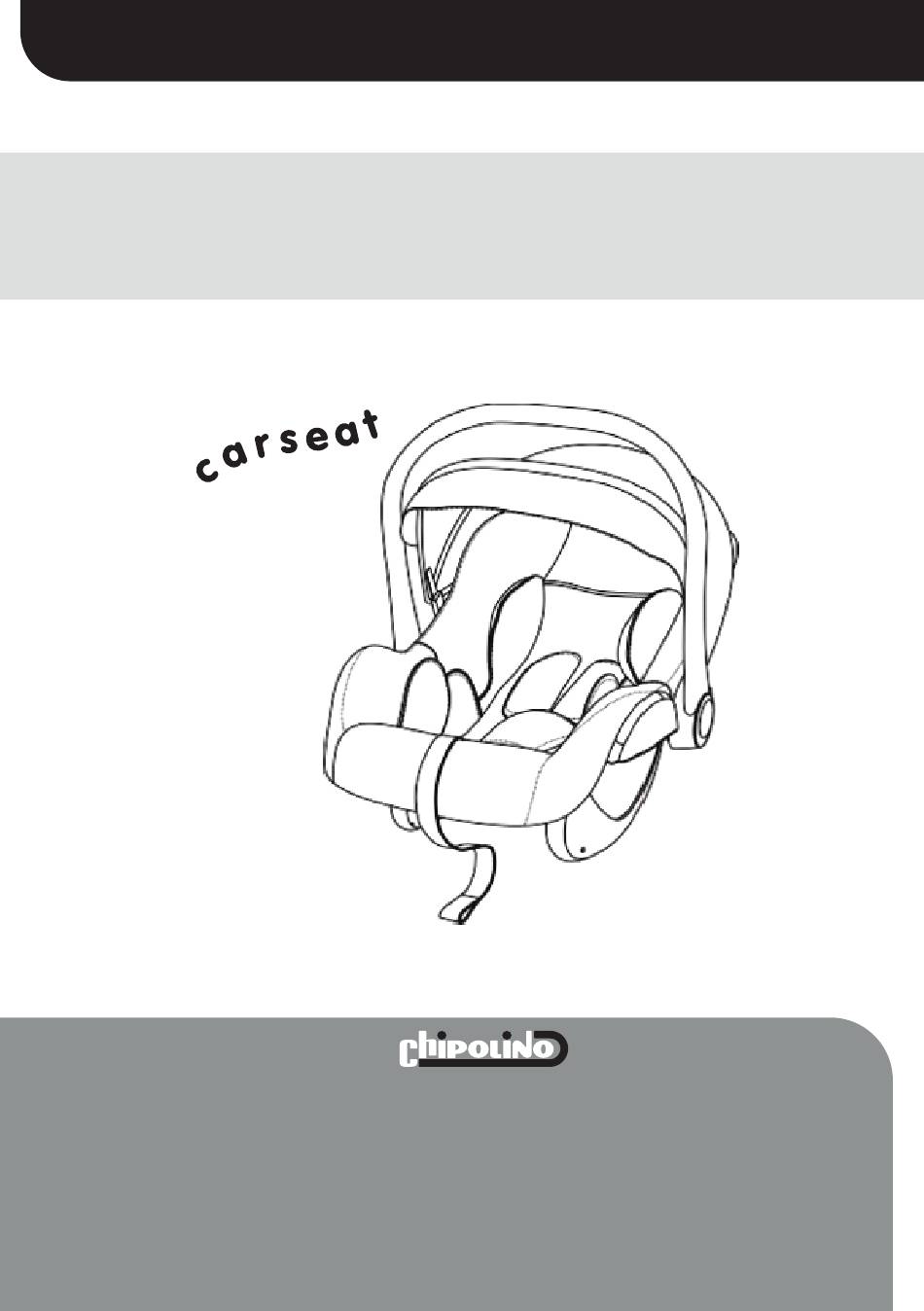

INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
MODEL „AURA"
This child restraint system
is
manufactured
in compliance with the requirements of Regulation No 129/03 of the
Economic Commission for Europe of the United Nations (UN/ECE)
— Uniform provisions concerning the approval of enhanced Child
Restraint
Systems
used
on
board
of
motor
vehicles
(ECRS),
the provisions of the Product safety Directive 2001/95/EU of the
European Parliament and The Council as well as the Consumer
Protection Law of national legislation.
Advertisement
Related Manuals for Chipolino AURA
Summary of Contents for Chipolino AURA
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM MODEL „AURA” This child restraint system manufactured in compliance with the requirements of Regulation No 129/03 of the Economic Commission for Europe of the United Nations (UN/ECE) —...
- Page 2 Child restrained system „AURA” is approved according to Regulation R129/03 and complies with the following requirements: • It is installed in REARWARD FACING position and using the 3-point vehicle belt • Children height 40-85 cm Weight ≤ 13 kg •...
- Page 3 The belt of car buckle must not be too long. Longer belt will affect correct installation of to long restrained system on vehicle seat. Allowed installation Not allowed installation Do not install the car seat on a vehicle seat equipped with activated air bag. Install the car seat on vehicle seat equipped with 3-point belt. CAUTION! WARNINGS! ...
- Page 4 In order to assure maximum protection, please read carefully the manual and install and use the car seat as described. WARNING! KEEP AWAY FROM FIRE! Use this car seat only in REWARD FACING position and for children with eight 40-85cm and weight up to 13 kg.
-
Page 5: Product Features

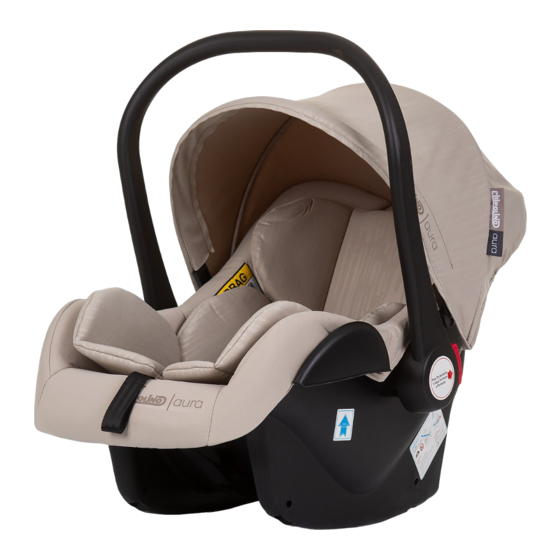

PRODUCT FEATURES Universal Belted Enhanced Child Restraint System. Suitable for children with height 40-85 cm and weight ≤ 13 kg, aged 0-15 months. Shoulder belts height adjustment in 2 positions; 3-point safety belt; Additional new born pad for children with height 40-85 cm; MAIN PARTS Handle Canopy... -
Page 6: Handle Adjustment
1. HANDLE ADJUSTMENT To adjust the position of handle, press simultaneously the buttons (a) on both sides of the handle and move the handle back or forth. By fixing you will hear a click sound. The handle may be placed in 4 positions: 1– Position DOWN (suitable for when you feed the baby or play with it). 2 – Position BACK (suitable to use when car seat is used as cradle). 3 – Position UP (suitable to carry the car seat). 4 – Position FORWARD (suitable for installing the car seat in the vehicle in position „REARWARD“). 2. CENTRAL BUCKLE 2a – Join both metal ends of shoulder belts. 2b – Insert jointed metal ends in central buckle and press. 2c – By locking of ends into the buckle you will hear a click. ATTENTION! Make sure that both ends are securely fixed into the buckle by trying to pull the shoulder belts up. To unlock the belts, press the red button at central buckle. - Page 7 3. LOOSENING THE SHOULDER BELTS Step 1: Press the belts length adjustment button (a) – located under the seat fabric cover at front part of the body and at the same time grab the shoulder belts (b) as shown in the figure. Step 2: Pull out the shoulder belts while holding the button pressed in order to loosen them. 4.
- Page 8 6. NEWBORN PAD The newborn pad is suitable for children with height 40 - 85 cm. Place the pad in the car seat. Thread the shoulder belts above the pad as shown in the picture. Thread the crotch belt with the central buckle through the opening in the lower part of the pad. To remove the pad, repeat the actions in reverse order. 7.
- Page 9 Before placing the child in the car seat you must loosen the shoulder belts (See section 3), adjust the shoulder belts height (See section 5) and place the newborn pad (See section 6). 7-1: Place the child in the car seat. 7-2: Fasten the 3-point safety harness (See section 2). ATTENTION! Make sure that belts are not twisted. 7-3: Tighten the safety belts by pulling the belt length adjusting strap. ATTENTION! Belts must hug the child’s body without causing pressure or discomfort. 7-4: Adjust the handle in position FORWARD. Place the car seat on the vehicle seat in REARWARD facing position and make sure that it is firmly pressed against the vehicle seat.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap Fabric cover and soft pads may be hand washed at 30 С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 11 Bulgaria, Plovdiv, Golyamokonarsko shosse № 1 www.chipolino.com...
