IMPORTANT! KEEP THIS MANUAL DURING ALL TIME OF
This child restraint system
in compliance with the requirements of Regulation 44 of the United Nations
Economic Commission for Europe concerning the safe transportation of
children, the provisions of the product safety directive 2001/95/EU of the
European Parliament and The Council and Directive 91/671/EEC "Compulso-
ry use of seat belts and child restraints systems for child occupants of pow-
er driven vehicles" of the European Parliament and The Council, as well as
Consumer protection law from national legislation.
USAGE AND FOR FUTURE REFERENCE

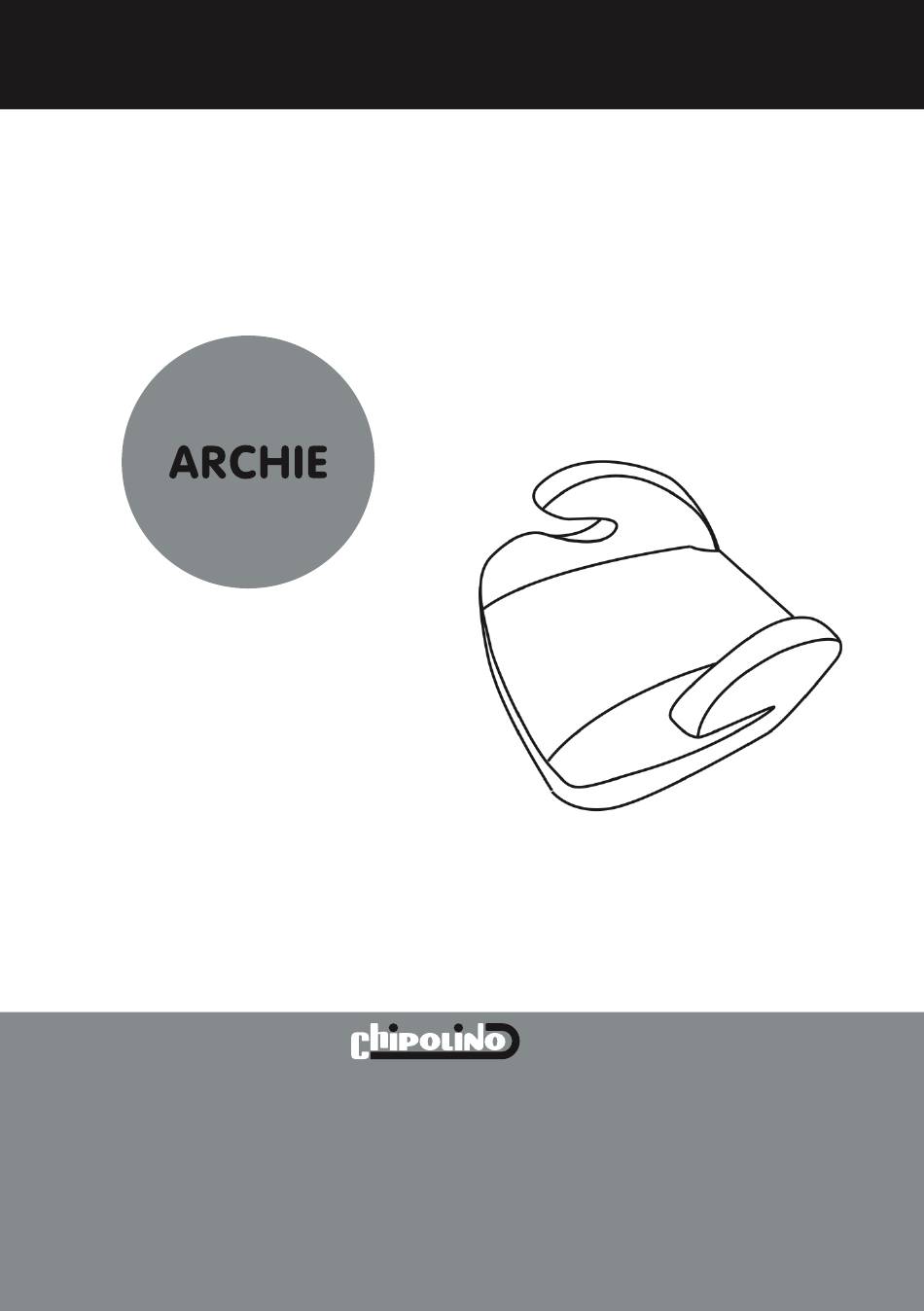

INSTRUCTION MANUAL
FOR USE OF CAR SEAT
"ARCHIE"
is designed and manufactured
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chipolino ARCHIE
Summary of Contents for Chipolino ARCHIE
- Page 1 IMPORTANT! KEEP THIS MANUAL DURING ALL TIME OF USAGE AND FOR FUTURE REFERENCE INSTRUCTION MANUAL FOR USE OF CAR SEAT “ARCHIE” This child restraint system is designed and manufactured in compliance with the requirements of Regulation 44 of the United Nations...
- Page 2 NOTICE for universal child restraint system group III (22-36 kg) 1. This is a “UNIVERSAL” CHILD RESTRAINT. It is approved to Regulation No 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “universal” child restraint for this age group. 3. This child restraint has been classified as “universal” under more stringent conditions than those which applied to earlier designs which do not carry this notice. 4. If in doubt, consult either the child restraint manufacturer or the retailer. This restraint system is suitable for use only in vehicles fitted with three-point static belt with a retractable mechanism that meets the requirements of Regulation № 16 of the Economic Commis- sion for Europe of the United Nations! DO NOT FORGET THAT NO RESTRAINT SYSTEM CAN PROVIDE...
- Page 3 Never install the car seat on this seat! Install the car seat on this seat, only if it is equipped with 3 –point safety belt. Do not install it on front seat, if it is equipped with air bag. Safety place for car seat installation! CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! THE CAR SEAT MUST BE INSTALLED ONLY ACCORDING TO THE DESCRIBED IN STRUCTIONS IN THIS MANUAL. IT IS DANGEROUS TO USE ANCHOR POINTS OTHER THAN THE ONES GIVEN IN THIS MANUAL! ...

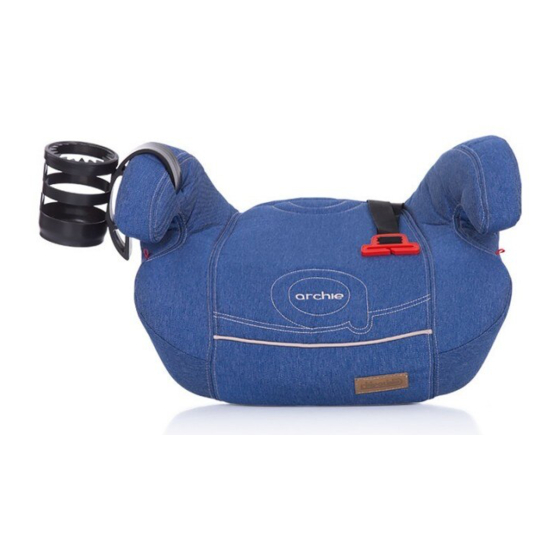

- Page 4 PRODUCT FEATURES Child restraint system suitable for children weighing 22-36 kg, Group III – 22-36 kg (approx. age 6-12 years); Car seat is installed on the vehicle seat using 3-point vehicle safety belt; Child restraint must be installed in FORWARD facing position. INSTRUCTION FOR USE IMPORTANT! • Follow exactly the instructions and safety recommendations in this manual. • ALWAYS CHECK THE SECURITY OF FIXING OF THE SAFETY BELTS! INSTALLATION OF CAR SEAT IN FORWARD FACING POSITION USING THE 3-POIMT SAFETY BELTS OF THE VEHICLE Correct Incorrect WARNING!
- Page 5 1. Install the car seat on vehicle seat (1) 2. Insert the lap belt through the guides (under armrests) of car seat and the diagonal belt under arm rests (2). Lock both belts into the buckle until you hear a click. WARNING! The diagonal belt must be above child’s shoulders and not though its neck. WARNING! Lap belt must hold firmly the pelvis of the child! WARNING! Make sure the vehicle belts are not twisted and are in correct position! 3. Tighten the belts by pulling them. Use the belt clip to position the diagonal belt across child’s chest at enough distance from child’s neck. IMPORTANT! Make sure the vehicle belts are well snugged and car seat is securely fixed to the vehicle seat. FABRIC REMOVAL Grab the fabric cover from behind and pull it out of the base. CLEANING AND MAINTENANCE INSTRUCTIONS Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap. Upholstery may be hand washed at 300С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! Do not use abrasive, bleach or other aggressive detergents. Leave the car seat to fully dry after cleaning and after that use it or store it. Do not wet or remove the stickers. They contain important information! Always store your car seat indoors – on dry and clean place. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals. Please, contact your authorized dealer for problems connected with the use or repair Fabric: Outer: 100% polyester Filling: 100% polyester Used materials: plastic, textile.
- Page 6 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse № 1 www.chipolino.com...
