Yetter 5000 Series Owner's Manual

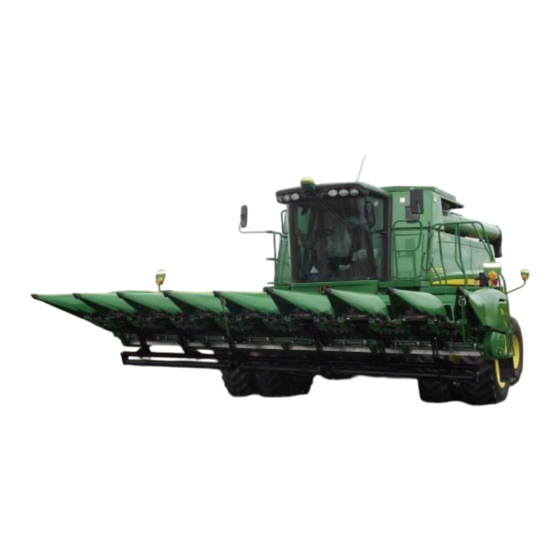

Stalk devastator corn stalk roller
Hide thumbs Also See for 5000 Series:

Advertisement

Quick Links

Download this manual
5000 SERIES STALK DEVASTATOR
5000-025D, 5000-026D, 5000-027D, 5000-028D, 5000-034C
John Deere Model Corn Heads (606C, 643, 693, 706C, C6R, 608C,
843, 893, 708C, C8R, 612C, 612FC Folding, 712C, 1243, 1293,
YETTER MANUFACTURING CO.
Founded 1930
Colchester, IL 62326
Toll free: (800)447-5777.
Fax: (309)776-3222
Website: yetterco.com
E-mail: info@yetterco.com
CORN STALK ROLLER
*PATENTED*
C12F, C12R, 616C, 716C, & C16R)
OWNER'S MANUAL
PART IDENTIFICATION
2565-785_Rev_H – 03/2024
