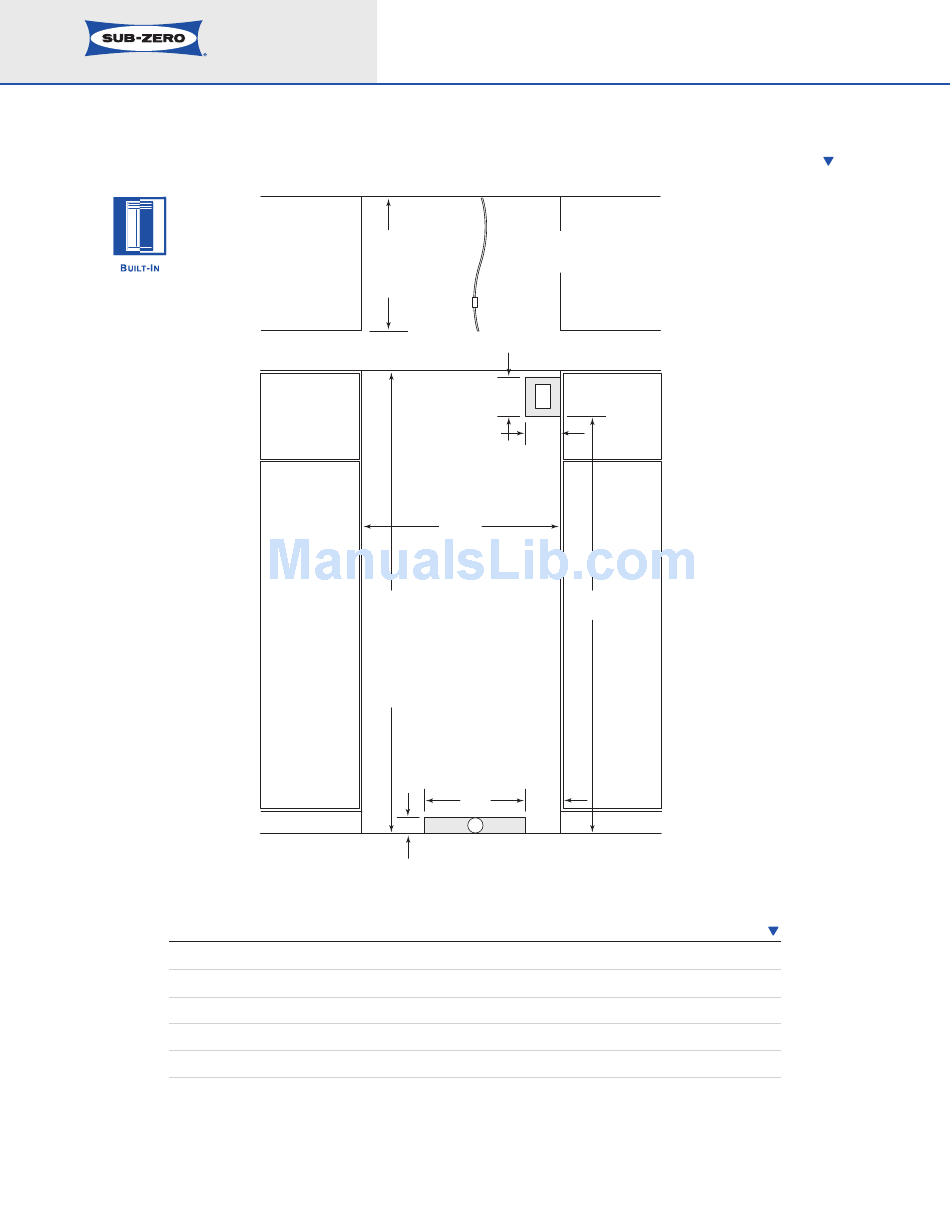

Top View; Front View - Sub-Zero 661 Planning Information

Planning Information
Built-In Model 661
I N S T A L L A T I O N S P E C I F I C A T I O N S
D I M E N S I O N S
Finished Rough Opening Width
Finished Rough Opening Height
Finished Rough Opening Depth
Location of Electrical
Location of Water Supply
See Installation Instructions shipped with unit for detailed specifications.
Refer to the Sub-Zero Design Guide pdf file for additional specifications.
Dimensions in parentheses are in
millimeters unless otherwise specified.
24"
EXTEND WATER LINE
(610) APPROX. 36" (914)
ROUGH
FROM BACK WALL
OPENING
DEPTH
SHUT-OFF
VALVE

TOP VIEW

7"
E
(178)
6"
(152)
LOCATE ELECTRICAL
WITHIN SHADED AREA
1
35 / "
2
(902)
ROUGH OPENING WIDTH
3
83 / "
4
(2127)
ROUGH
OPENING
HEIGHT
WITH
STANDARD
11" (279)
GRILLE
LOCATE WATER SUPPLY
WITHIN SHADED AREA
3"
(76)
18" 6"
(457)
(152)
W

FRONT VIEW

1
75 / "
2
(1918)
1
35 / " (902)
2
3
83 / " (2127)
4
24" (610)
Within upper shaded area
Within lower shaded area
4
