Planning Information
Built-In Model 611G
Over-and-Under Refrigerator / Freezer with Glass Door

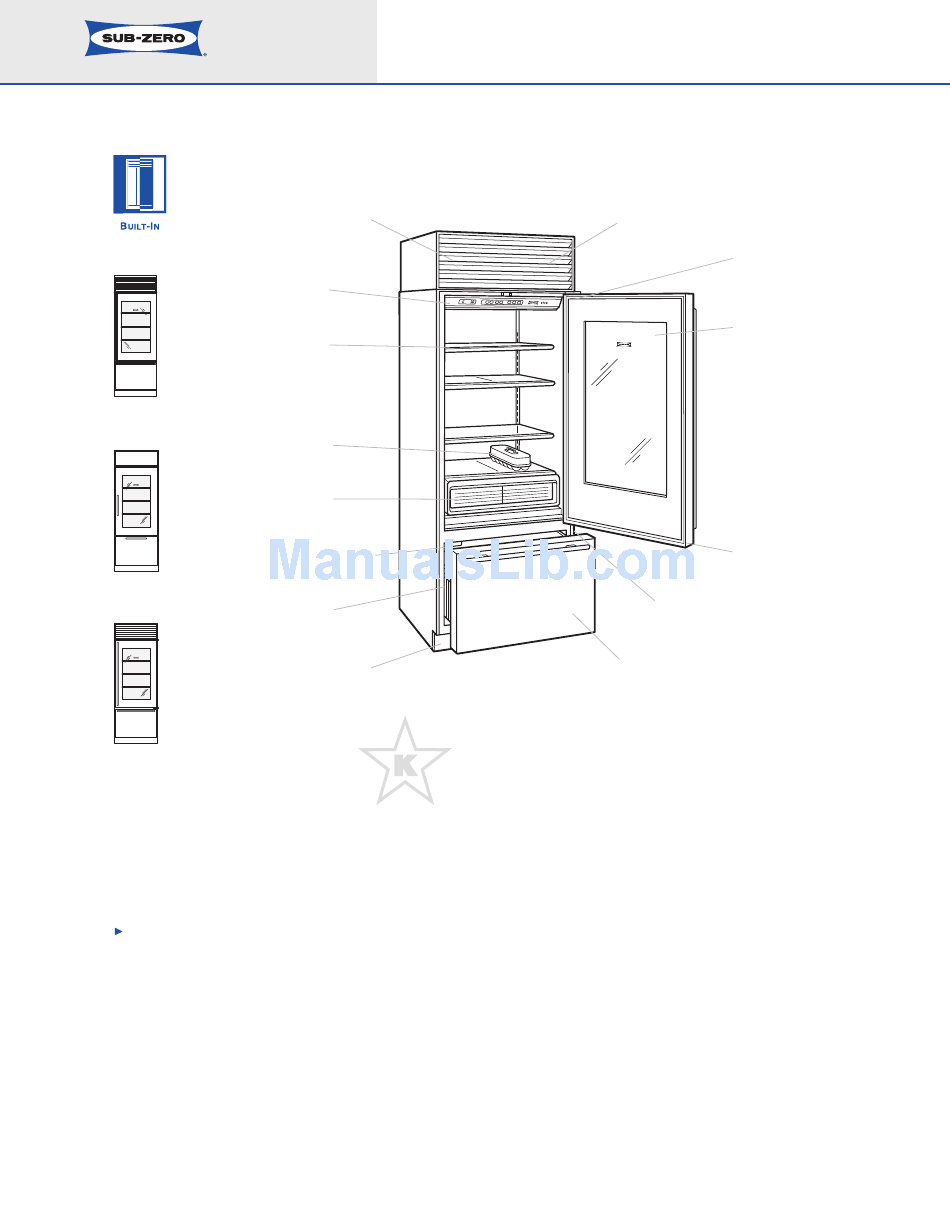

Front venting allows
unit to be completely
built in
Lighted electronic
control panel
Adjustable spill-proof
glass shelves
Model 611G/F
Framed
Egg container
High humidity
crisper drawer
Automatic ice maker
Model 611G/O
Overlay
Two-tier wire
storage baskets
Removable kickplate
Model 611G/S (P/B)
Stainless Steel
The Sub-Zero Model 611G over-and-
under refrigerator/freezer with glass door
is available in your choice of the framed,
overlay or stainless steel design application.
Three stainless steel finishes are offered—
classic (/S), platinum (/P) and carbon (/B).
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
(Stainless steel design shown)
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
M
any people are gravitating toward a commercial
looking kitchen but they lack the refrigeration unit that
allows them to achieve that look. The Model 611G with
a glass door along with its cousin, the Model 650G, are
the only over-and-under refrigerator / freezer models on
the market that allow you to do that for your clients
and they are manufactured by Sub-Zero. Need we say
more?
Hermetically sealed
refrigeration units
Serial and model
number plate
Triple-pane
UV resistant low-
energy glass door
Four-sided
magnetic gaskets
Door closers
Full-extension roll-out
freezer drawer
1
