Planning Information
Built-In Model 661
H A N D L E P R O F I L E – S T A I N L E S S S T E E L / O V E R L A Y A P P L I C A T I O N S
1
/
4
NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE
P A N E L A N D H A N D L E P R O F I L E

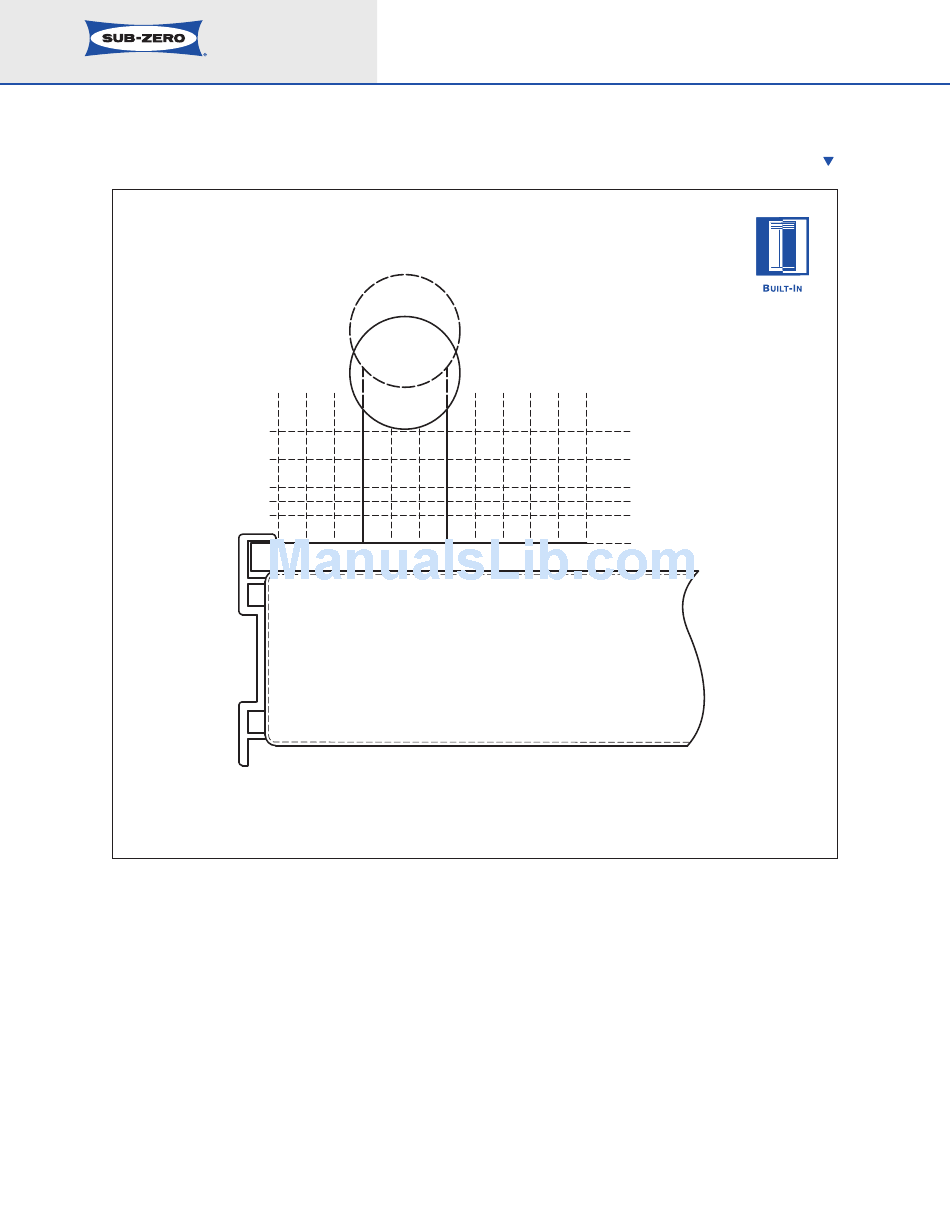

The full-scale illustration above shows handle
placement for the standard stainless steel
handle on the wrapped stainless steel door and
on overlay panel applications shown in the
dashed line.
Dimensions in parentheses are in
millimeters unless otherwise specified.
STANDARD STAINLESS STEEL HANDLE
2"
1"
(51)
"
(6) APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR
DOOR
MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.
3"
(76)
1
1 / "
4 (32) PANEL
1"
(25) PANEL
3
/ "
4 (19) PANEL
5
/ "
8 (16) PANEL
1
/ "
2 (13) PANEL
1
/ "
4 (6) PANEL
IMPORTANT NOTE: For overlay applications,
the optional stainless steel handle must be
mounted on a panel at least
For overlay applications, mount door handles
close to the opening edge of the door for ease
of opening.
5
/ " (16) thick.
8
