Top View; Front View; Side View - Sub-Zero 700TR Planning Information

Planning Information
Integrated Model 700TR
I N S T A L L A T I O N S P E C I F I C A T I O N S
*PLACEMENT OF THE
ANTI-TIP BRACKET
SHOULD BE 24" (610)
FROM THE FRONT OF THE
UNIT WITHOUT PANELS
TO THE BACK OF THE
ANTI-TIP BRACKET.
LOCATE ELECTRICAL WITHIN
SHADED AREA – ORIENT GROUND
PRONG TO RIGHT AS SHOWN
1
4 / "
2
(114)
13"
(330)
1
/ "
4
(6)
1
2 / "
2 (64)
1
15 / "
2 (394)
NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO
PREVENT UNIT FROM TIPPING FORWARD
D I M E N S I O N S
Finished Rough Opening Width
Finished Rough Opening Height
Finished Rough Opening Depth
Location of Electrical
* The depth of the Model 700TR is 24" (610) from the front of the unit to its back. Your design
may necessitate moving the unit back, or cabinets forward to achieve a flush fit. This will require
a minimum rough opening depth of 25" (635).
See Installation Instructions shipped with unit for detailed specifications.
Dimensions in parentheses are in
millimeters unless otherwise specified.

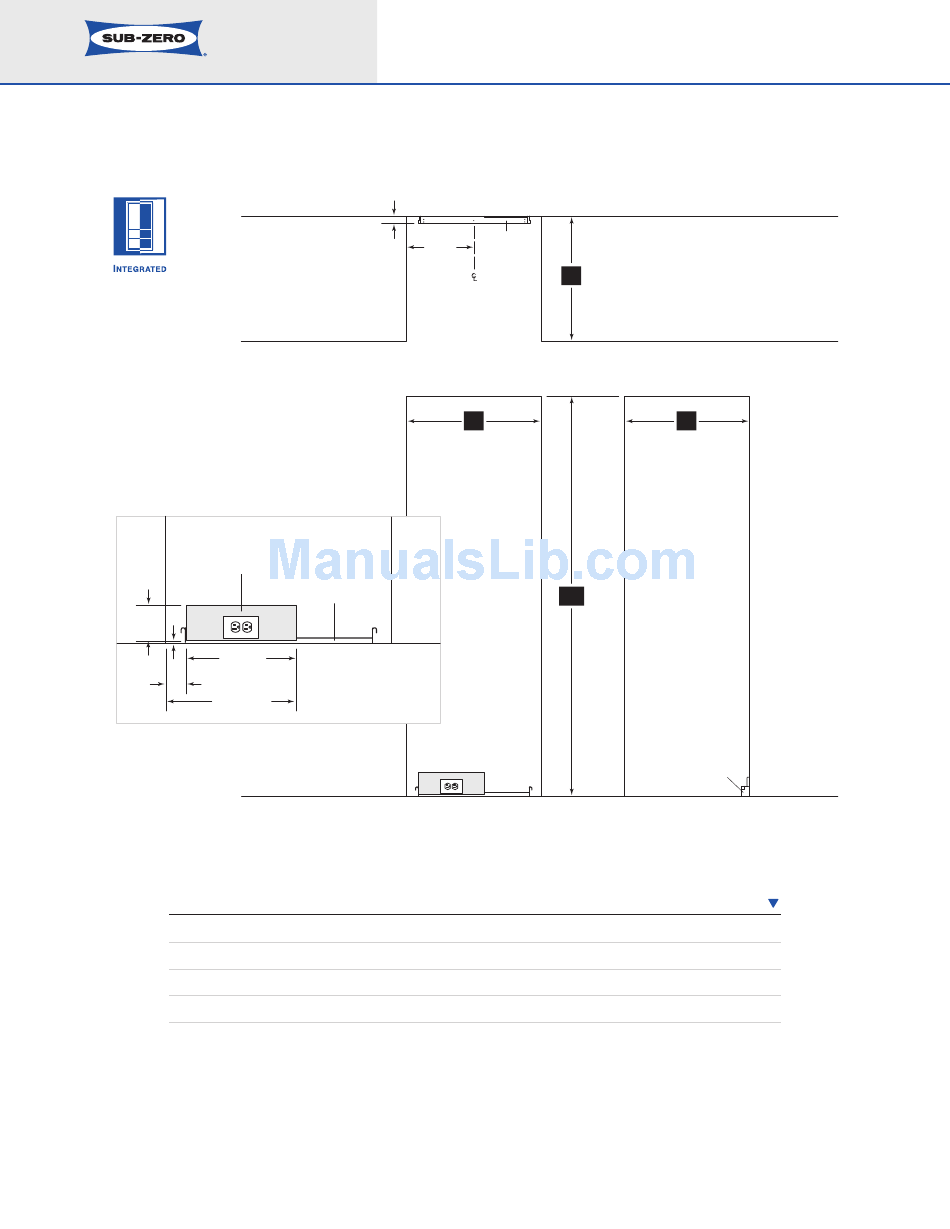

TOP VIEW

ANTI-TIP
1 1
1 / " 13 / "
2
2 BRACKET*
(38) (343)
27"
(686)
ANTI-TIP
BRACKET

FRONT VIEW

25"
(635)
25"
(635)
80"
(2032)
ANTI-TIP
BRACKET

SIDE VIEW

27" (686)
80" (2032)
25" (635)*
Within shaded area
