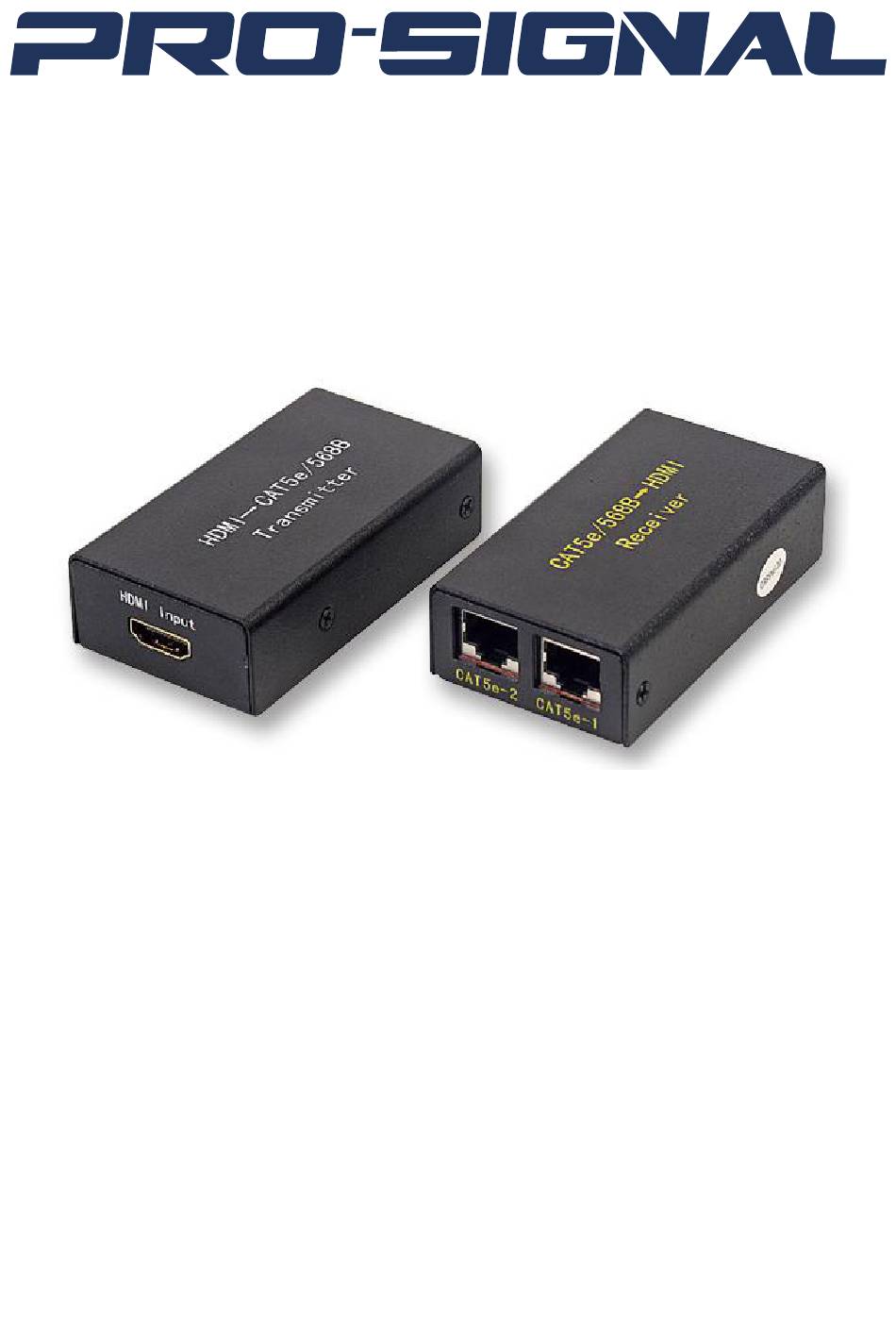

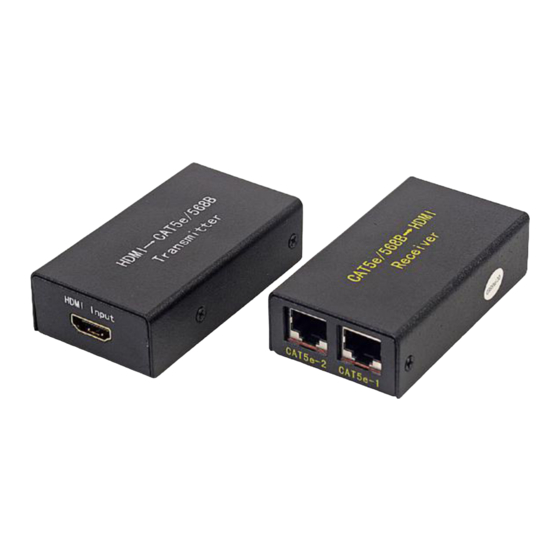

- Page 1 HDMI over Cat5e/6 Extender, 25-45m Range PSG08405 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 CONNECTIONS Sender unit HDMI source input. CAT-5e output 2 CAT-5e output 1 HDMI output CAT-5e input 1 CAT-5e input 2 Power Input Receiver unit PSG3429 INSTALLATION • Connect the HDMI input sources such as HD-DVD, PS3, Xbox etc. • Connect two CAT-5E cables to both the output sockets of the sender and to both the input sockets on the receiver noting the correct pairing.
- Page 4 SPECIFICATIONS Signal Input/Output Input Video Signal 5 Volts p-p (TTL) Max single link range 1920 x 1080p Output Video HDMI Type A 19 pin Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 1.65Gbps/165MHz Transmission distance UTP cable with cross strand inside 25m for 1080p 45m for 480p Resolutions(HDTV) Interlaced (50&60Hz)
