- Page 1 HDbitT HDMI EXTENDER MATRIX 60HZ PSG3447...
-
Page 2: Important Safety Information

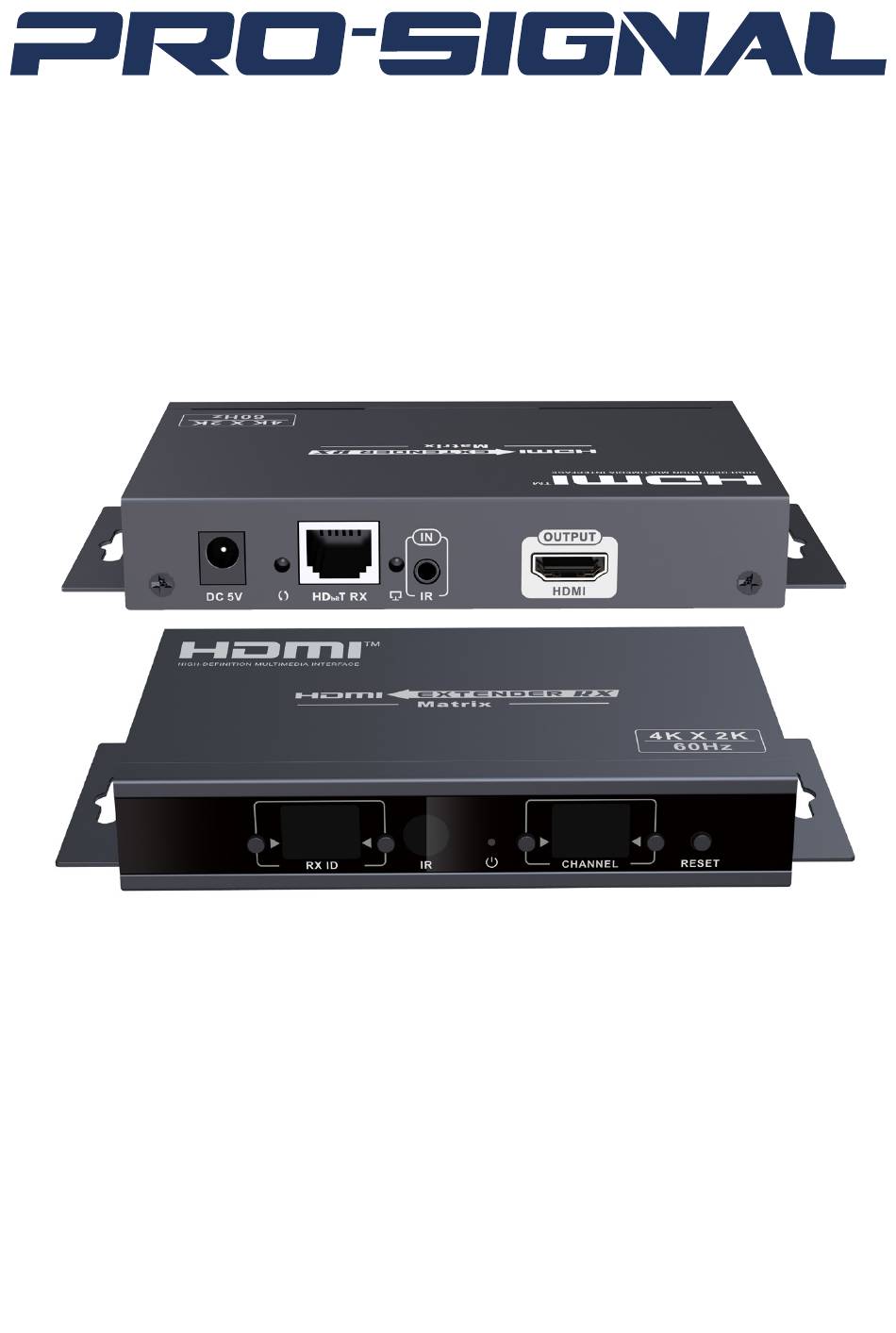

Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 OVERVIEW TRANSMITTER IR receiver window - Receiver IR signal from remote control. Power indicator - LED for power on indication. TX indicator - Indicates current transmission channel ID. Power input - connect the PSU 5VDC connector. Data transmission indicator - flashes slowly when connecting then faster during data transmission.
-
Page 4: Matrix Configuration

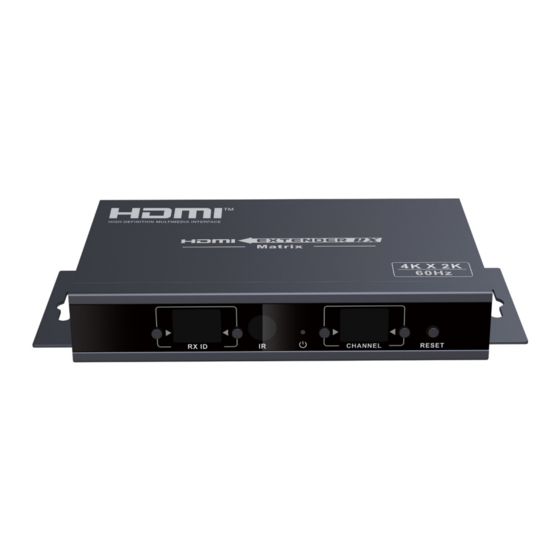

RECEIVER INSTALLATION MATRIX CONFIGURATION POINT TO POINT CONFIGURATION OPERATION IR User Guide: • IR receiver extension cable should be connected to the IR IN port of the receiver. • The IR emitter extension cable should be connected to the IR OUT port of the transmitter. - Page 5 • Click" play" button to preview the content of the source device on your phone or tablet. • You can click the text box below each the TX/RX button to edit device name. Click OK when done. • To set up a connection between input (TX) and output (RX) press and drag the TX button over the RX button required.
- Page 6 Note: Please do not use more than one mobile phone/ tablet to control the system simultaneously. Button Control: • There is a "TX ID" display on the transmitter, and there are both TX CONNECTED and RX ID displays on the receiver unit, each of which has a 2 digit display plus 2 adjacent buttons which adjust each digit.
- Page 7 Device scanning and setting • Device scanning and setting (example shown of TX's setting only, RX's setting is identical)
- Page 8 Device Name setting • Click on a default device name and enter the desired name in the pop-up box. Device Channel setting • Select the channel for the device using the scroll list.
- Page 9 Mode setting • Click on the Mode button to change the required mode name. • Click the Update button when complete to store all the settings made under the current Mode name. Selecting the operation Mode • Click on the Mode button to change to the required mode and switch to the settings stored previously under that name.
-
Page 10: Specifications
SPECIFICATIONS Voltage/Current DC 5V3A Power consumption TX: <8W RX: <10W HDMI compliance HDMI 2.0 HDCP compliance HDCP 2.2 HDMI input resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@24/25/30/60Hz HDMI output resolution 1080p@60Hz, 4Kx2K@30/60Hz Audio formats L & R Stereo Audio Max transfer rate 18Gbps Input/output TMDS signal... - Page 12 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
