Summary of Contents for PRO SIGNAL PSG03502

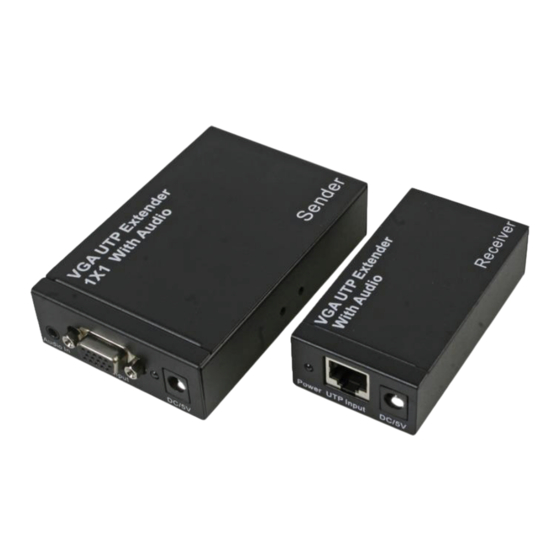

- Page 1 VGA & Audio Over Cat5 Extender Kit PSG03502...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 CONNECTION DIAGRAM PSG3429 CLEANING & MAINTENANCE Clean the outside plastic casing with a soft cloth lightly moistened with mild soap and water. Never use any abrasive or solvents.
- Page 4 SPECIFICATIONS Input /Output Connector Input connector VGA(Female 15pin), Stereo Audio Output connector VGA(Female 15pin), Stereo Audio,1xRJ45 Operating Frequency Vertical Frequency Range 60/75/85Hz Supported Resolutions (PC) 640x480 800x600 1024x768 1280x720 1280x768 1280x960 1280x1024 1600x900 1600x1200 1920x1080 1920x1200 Mechanical Dimensions - Transmitter 100×65×25.5mm (LxWxH) Weight of Transmitter 208g...
