Summary of Contents for PRO SIGNAL PSG3533

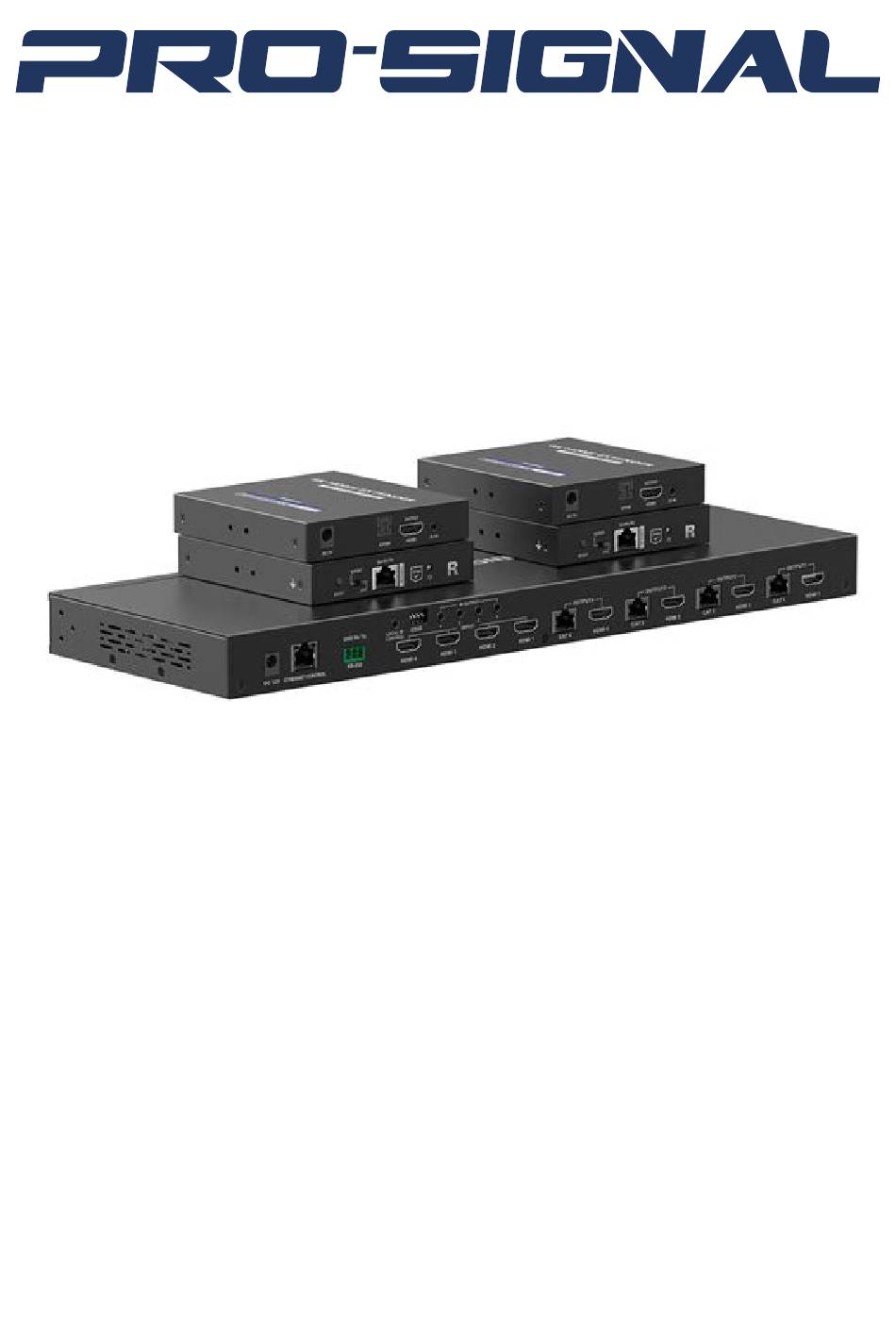

- Page 1 PSG3533 4x4 HDMI MATRIX EXTENDER 4K 60Hz 70m The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 Receiver Reset button DC12V power input (only if PoC is Audio switch: a second audio not used. PSU not supplied) output from the HDMI source Digital audio signal output (S/PDIF side) or an audio output HDMI output from the TV on the receiving end IR input (ARC side) RJ45 input...
-
Page 4: Installation
INSTALLATION Requirements • An HDMI source device with HDMI OUTPUT interface, DVD, PS3, STB, PC etc. • A display device with HDMI INPUT port, SDTV, HDTV, projector etc. • Network cables UTP/STP Cat6/Cat6A/Cat7 network cables, to IEEE-568B. • Please make sure all devices you wish to connect have been powered off. •... -
Page 5: Operation
OPERATION Ethernet control • Connect the Ethernet port to the Ethernet (e.g. PC) with a network cable for TCP/IP control. • Logging in via IP address: 192.168.1.200 (if you cannot open this address in your browser, please try a different browser) will take you to the following screen:- Output order Select the corresponding HDMI input content for the output It will be applied to all outputs if HDMI Input is selected here... - Page 6 PAPXPXPXPX Prefix Content for output port HDMI 4 Content for output port HDMI 3 Content for output port HDMI 2 Content for output port HDMI 1 PAPXPXPXPX Operation PA is the command prefix, and the “X” of PX can be any number from 1 to 4. Mode 2 P1 represents HDMI 1 source content for output, P2 represents HDMI 2 source content for output, and so on to P4.
-
Page 7: Maintenance
Dip Switch Status Resolution Information 1080i@60Hz 2CH 1080i@60Hz 2CH 1080i@60Hz 7.1CH 1080p@60Hz HDR 7.1CH 1. Read only the EDID that was first connected to the output 2. Connect 4 outputs at the same time, only read the EDID of HDMI 1 output Remote Control / Front Panel Buttons •... -
Page 8: Specifications
SPECIFICATIONS Transmitter Rceivers HDMI version HDMI 2.0 HDCP version HDCP 2.2, HDCP 1.4 Transmission distance IEEE-5688 standard CAT6/CAT6A/CAT7 ≤70m Video bandwidth 600MHz (18Gbps) Resolution supported 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1080i@50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz, 3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1440, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600 HDR10...
