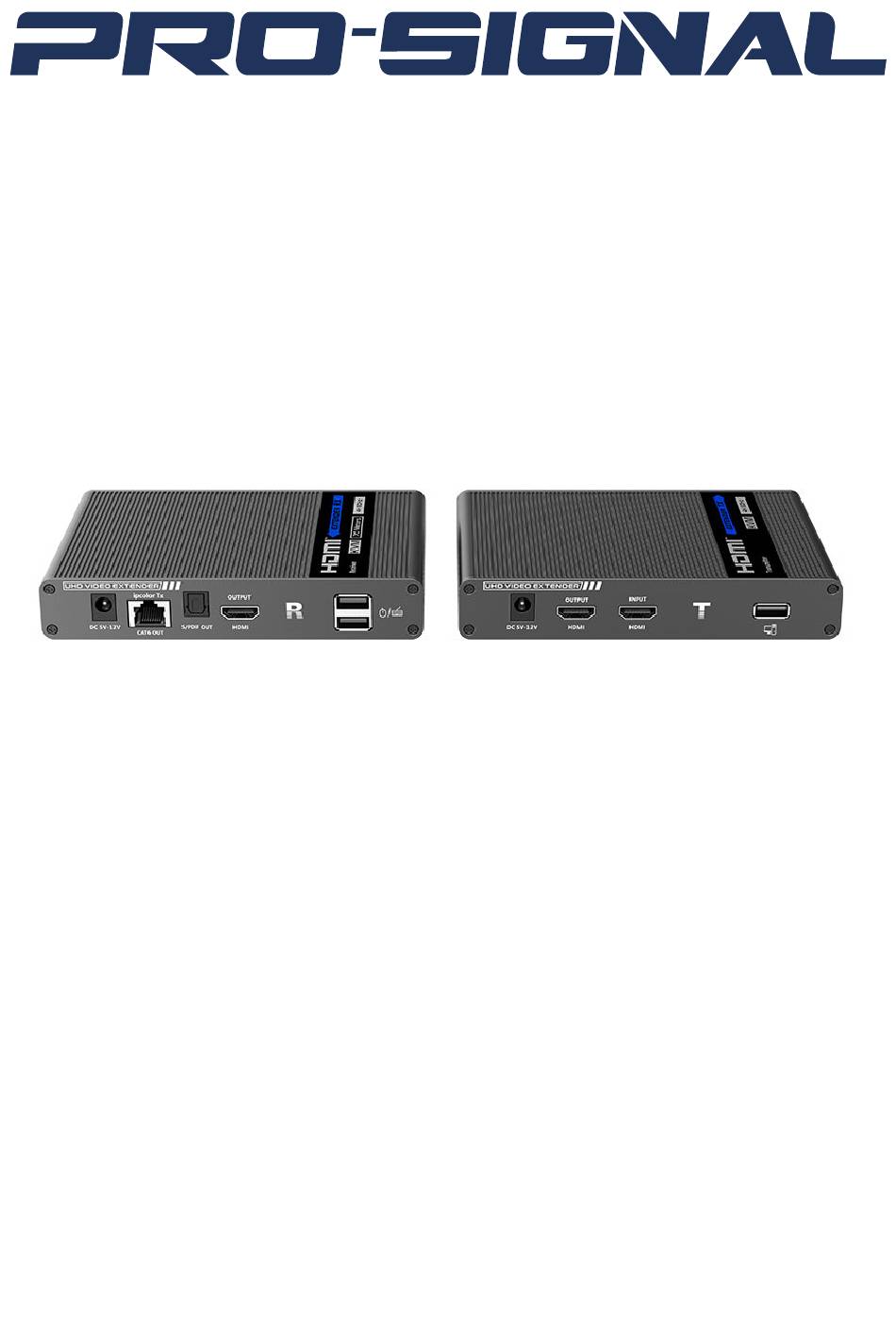

- Page 1 4K 60HZ HDMI EXTENDER 70M WITH CASCADE PSG3560 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 INSTALLATION TRANSMITTER Reset button - press to restart the device RJ45 connector - connect to network using CAT6/6a/7 cable Power indicator flash - power on but no HDMI signal steady on - HDMI signal active 5V DC input - connect to the 5V 2A mains power supply output HDMI output - connect to a local display device using a suitable HDMI cable HDMI input - connect to source device using high quality HDMI cable IR in - connect IR receiver for pass through IR extender...
- Page 4 RECEIVER Reset button - press to restart the device Audio switch - use to select between audio fron HDMI or ARC output via fibre optic RJ45 input - connect to network using CAT6/6a/7 cable Power indicator flash - power on but no HDMI signal steady on- HDMI signal active 5V DC input - connect to the 5V 2A mains power supply output RJ45 output - connect to network using CAT6/6a/7 cable when linking to further...
- Page 5 One to One connection option One to Many connection option...
- Page 6 OPERATION • Connect the source device to the HDMI in port of the transmitter with an HDMI cable, and connect the HDMI out port of the receiver to the display device with another HDMI cable. • Connect the CAT out port of the transmitter and the CAT in port of the receiver via a network cable (CAT6/CAT6A/CAT7).
- Page 7 SPECIFICATIONS Technical Transmitter-TX Receiver-RX Video Input interface 1x HDMI 1x RJ45 Output interface 1x HDMI 1x RJ45 1x HDMI 1 x RJ45 HDMI 2.0 Compatibility HDCP 1.4 / HDCP2.2 HDMI length ≤ 8m Maximum transfer rate 18Gbps 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600 Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,...
- Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
