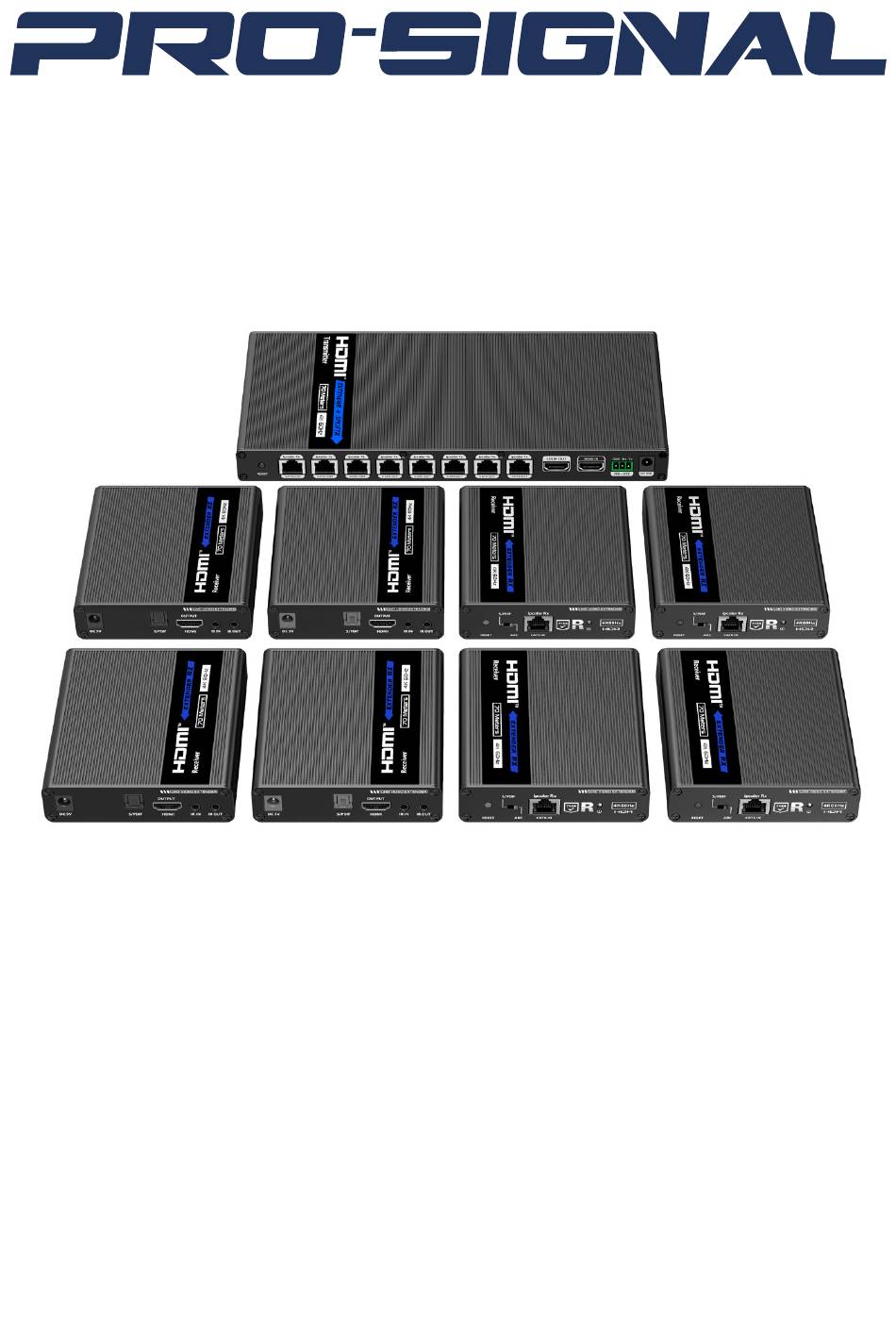

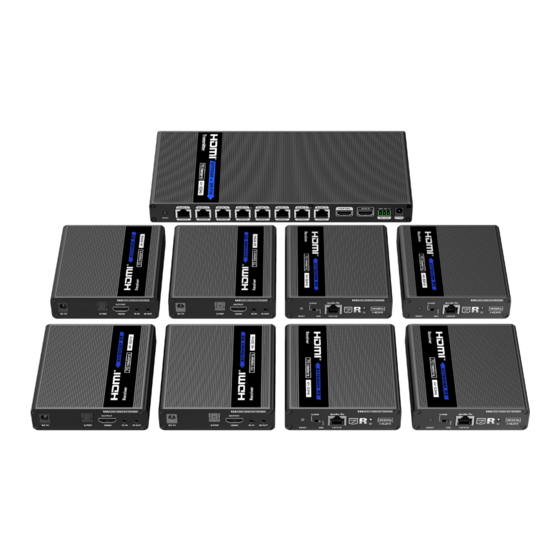

- Page 1 1X8 4K 60HZ HDMI SPLITTER EXTENDER PSG3527 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 OVERVIEW • This product is a 1 input 8 output extender splitter kit, which integrates the functions of distribution and extension. • It distributes 1 HDMI input signal to 8 identical signal outputs, extends these signals up to 70 meters, and supports 4K 60Hz resolution. •...
- Page 4 Receiver (RX) RECEIVER ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Reset Button - Press the button to restart the device Audio Switch - Choose the audio source S/PDIF from source device or ARC from TV (receiver end) ① Restart the device Reset button RJ45 input - Connect to transmitter with CAT6/6A/7 network cable...
- Page 5 4-Blue 5-Blue/white 6-Green 7-Brown/white 8-Brown 2. Connection HDMI OUT HDMI Display HDMI OUT HDMI Display Video Source HDMI OUT HDMI Display Network able HDMI IN HDMI OUT HDMI Display HDMI OUT HDMI Display HDMI OUT HDMI Display HDMI OUT HDMI Display HDMI Display HDMI OUT HDMI Display...
- Page 6 RS-232 FUNCTIONS • The default configuration is as follows: Baud rate: 9600 Data bits: 8 Stop bits: 1 Parity: 0 Control Commands Function Descriptions ES XX On (Enter) Turn on the network signal output port(s), choose from “01” to “08” (the network ports from right to left are: 01, 02, 03, 04, 05, 06, 07, 08) “All”...
- Page 7 EDID SETTINGS • There are 16 built-in EDIDs in the product, which can be switched through the DIP switch. • The UP position DIP switch indicates “1”, and the DOWN position DIP switch indicates “0”. Switch Status EDID Information 4K@60Hz 2CH 4K@60Hz 5.1CH 4K@60Hz 7.1CH 4K@60Hz HDR 7.1CH...
- Page 8 Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital Support IR passback function (20KHz~60KHz) RS-232 3 pin: TxD-RxD-GND, follows RS-232 levels Working temperature -20~60 Storage temperature -30~70 Humidity (no condensation) 0~90% RH Protection ESD protection 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 Lightning protection...
