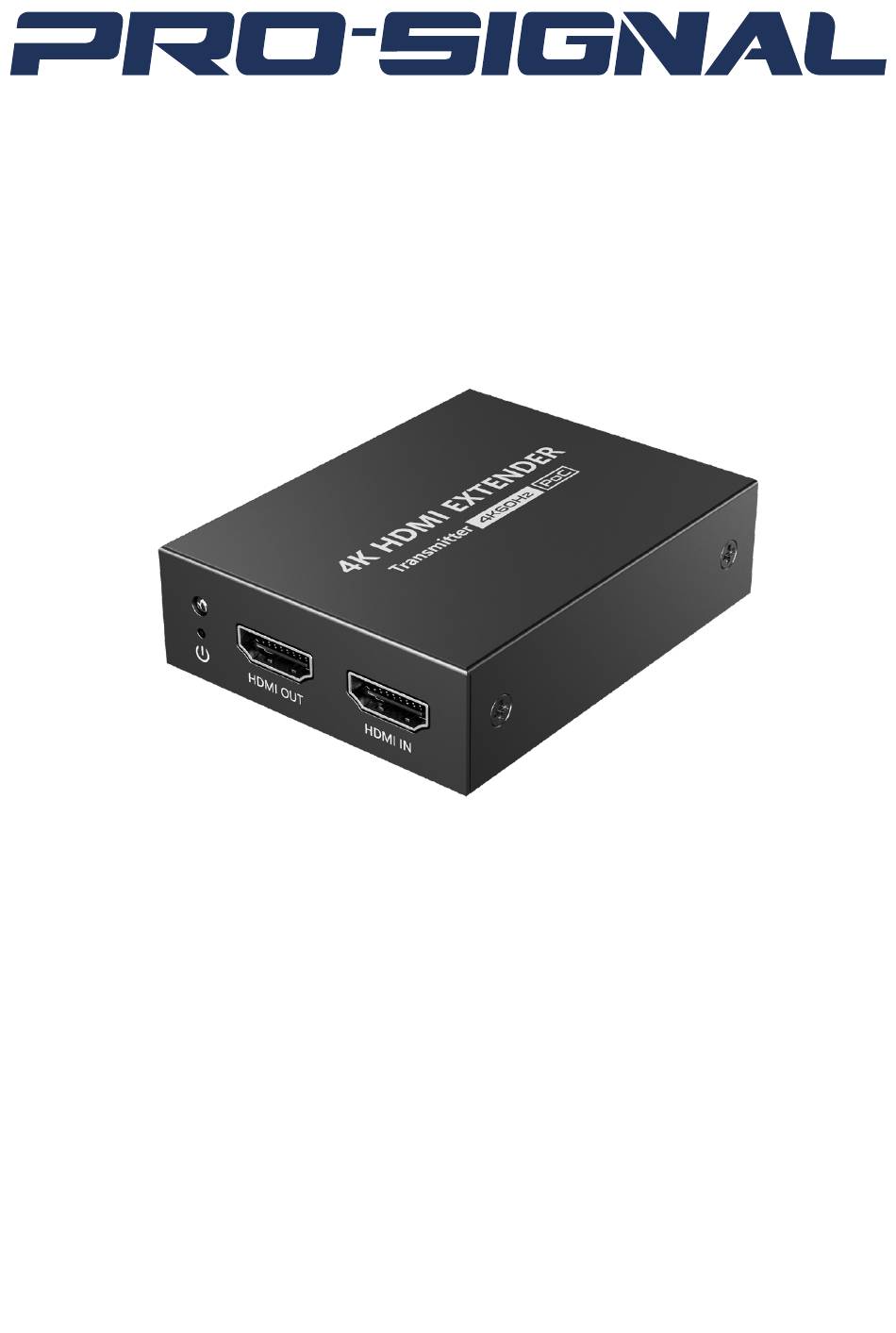

- Page 1 4K 60HZ HDMI POINT TO POINT EXTENDER PSG3524 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Page 2: Important Safety Information

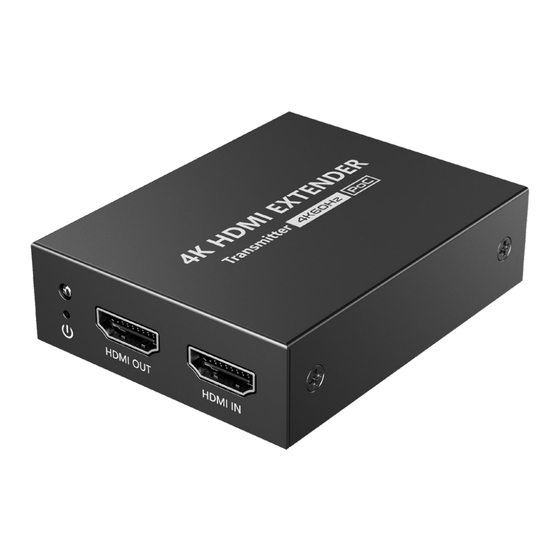

Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 INSTALLATION TRANSMITTER Power input - Connect with DC to USB power cable RJ45 output - Connect to receiver with CAT6/6A/7 network cable IR OUT - Connect with IR extender emitter Reset Hole - Press the pinhole reset button with a straightened paper clip Power Indicator - When there is power, the indicator will illuminate blue HDMI Output - Connect with local HDMI display device with suitable HDMI cable HDMI Input - Connect with HDMI source device with suitable HDMI cable...
-
Page 4: Operation
OPERATION • Connect the source device to the HDMI IN port of the transmitter with a suitable HDMI cable, and connect the HDMI OUT port of the receiver to the display device with another HDMI cable. • Using suitable high quality Cat6/6A/7 cable connect the RJ45 port of the transmitter and receiver. -
Page 5: Specifications
SPECIFICATIONS Specification Transmitter Receiver Video Signal Input 1 x HDMI Type A, Female 1 x RJ45 Female Output 1 x HDMI Type A, Female 1 x HDMI Type A, Female 1 x RJ45 Female HDMI Cable ≤5m ≤5m Max Transmission Rate 18Gbps Max Transmission Bandwidth 600MHz EDID passthrough... - Page 6 Power Supply Voltage DC5V/2A PoC (Power by TX) Working Power TX+RX<6W Operating Environment Operating Temperature -20~60 Storage Temperature -30~70 Humidity 0~90% RH (No Condensation) Physical Properties Weight 130g 130g Colour Black Size (mm) 75.0 (L) x 60.0 (W) 75.0 (L) x 60.0 (W) x 21.0 (H) x 21.0 (H) Static Protection...
