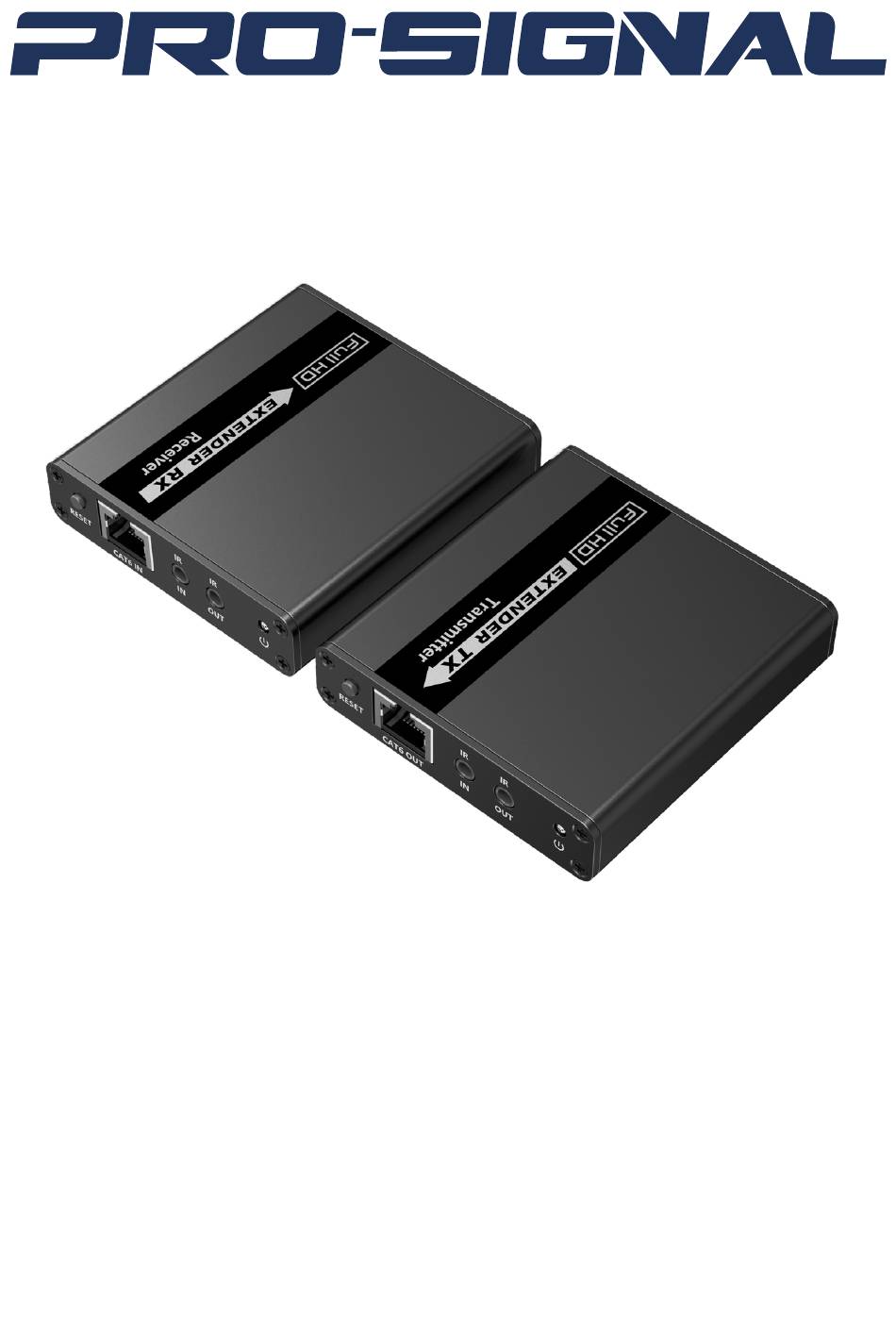

- Page 1 HDMI EXTENDER POINT TO POINT PSG3452...
-
Page 2: Important Safety Information

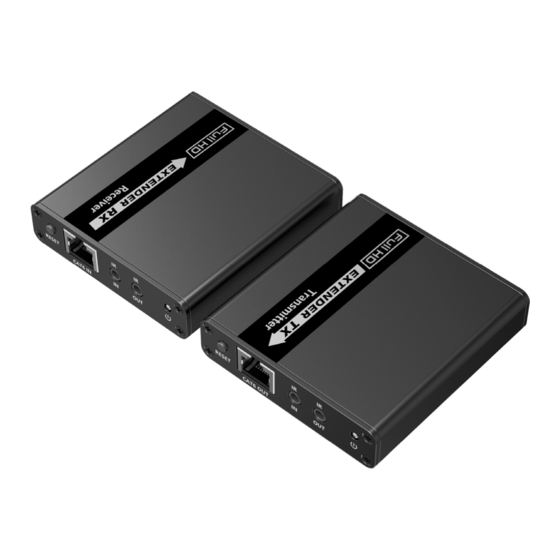

Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 INSTALLATION TRANSMITTER Reset button - press to reset the device. RJ45 signal output - connect CAT network cable. IR extender receiver connection. IR extender emitter connection. Power/transmission LED indicator. DC 5V input - connect supplied 240V mains PSU DC output. HDMI output - connect to a local display monitor.
- Page 4 RECEIVER Reset button - press to reset the device. RJ45 signal input - connect CAT network cable. IR extender receiver connection. IR extender emitter connection. Power/transmission LED indicator. DC 5V input - connect supplied 240V mains PSU DC output. Audio output - connect using 3.5mm jack to amplifier or headphones. HDMI input - connect to a display device.
-
Page 5: Operation
OPERATION IR User Guide: • IR receiver extension cable should be connected to the IR IN port of the receiver. • The IR emitter extension cable should be connected to the IR OUT port of the transmitter. • The emitter of the IR extension cable should face as close as possible to the IR receiving window of the source device. -
Page 6: Specifications
SPECIFICATIONS Voltage/Current DC 5V 1A Power consumption TX: <2.5W RX: <2.5W HDMI compliance HDMI 1.3 HDCP compliance HDCP 1.4 Video bandwidthe 10.2Gbps HDMI input resolution 800x600, 1024x768, 1280x720 1280x960, 1366x768, 1440x900 1680x1050, 1920x1080, 480i@60Hz 480p@60Hz, 576i@50Hz 576p@50Hz, 720p@50/60Hz 1080i@50/60Hz 1080p@24/25/30/50/60Hz Supported audio formats PCM, LPCM, DTS HD, DTS Audio Input and output TMDS signal... -
Page 7: Cleaning And Maintenance
CLEANING & MAINTENANCE Clean the outside casing with a soft cloth lightly moistened with mild soap and water. Never use any abrasive or solvents. - Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
