Summary of Contents for PRO SIGNAL PSG3453

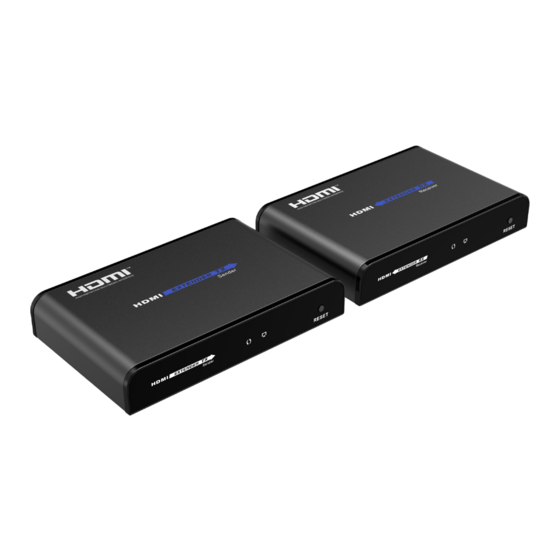

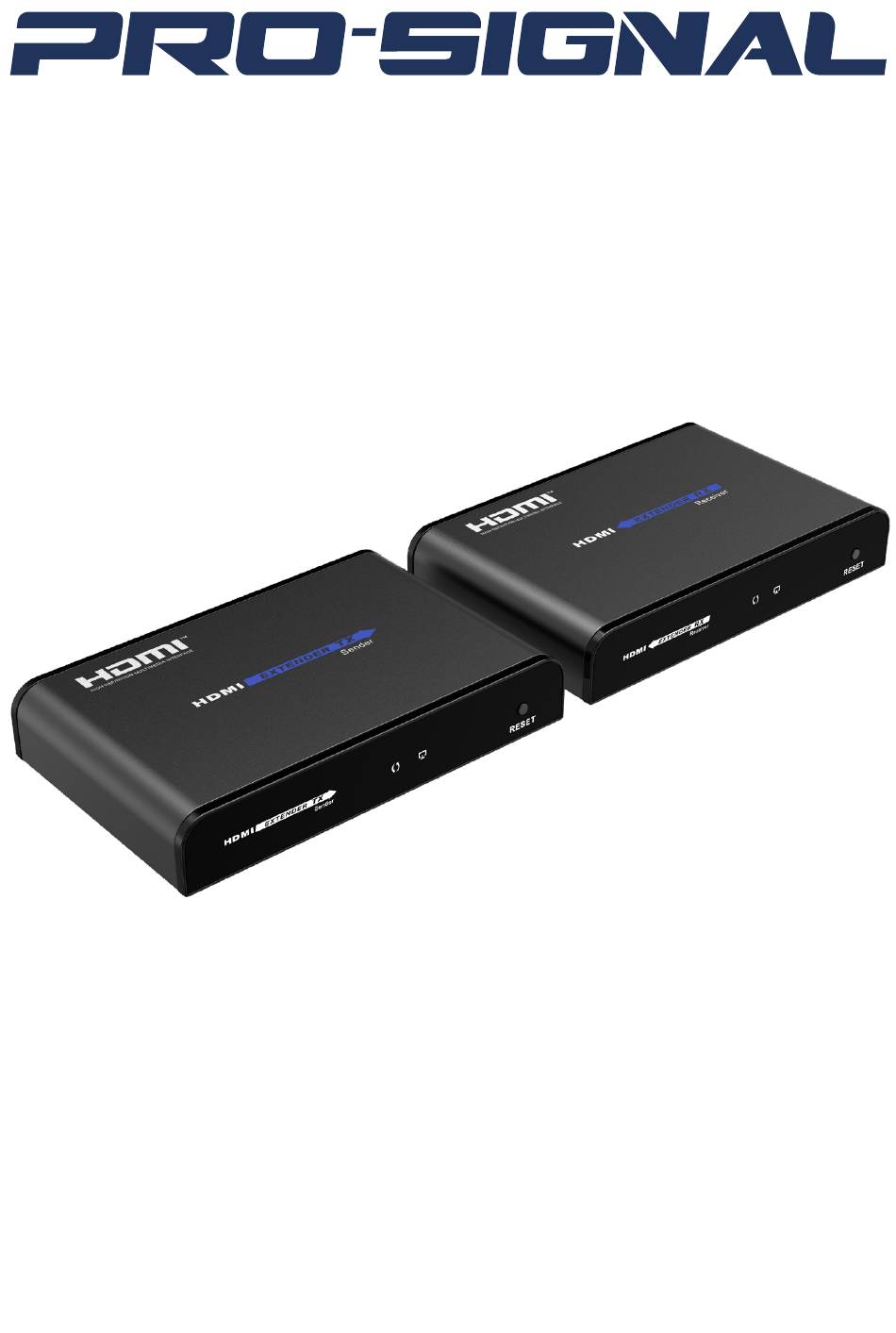

- Page 1 HDMI EXTENDER OVER CAT5/6 PSG3453...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 INSTALLATION TRANSMITTER Power LED - illuminates when power is on. Data transmission LED - flashes when transmitting signal. Connection indicator LED - illuminates to indicate connection to receiver is good. Reset button - press to reset the device. Power input - connect to PSU 5VDC output jack. CAT network cable RJ45 output socket.
- Page 4 RECEIVER Power LED - illuminates when power is on. Data transmission LED - flashes when transmitting signal. Connection indicator LED - illuminates to indicate connection to receiver is good. Reset button - press to reset the device. Power input - connect to PSU 5VDC output jack. CAT network cable RJ45 socket.
-
Page 5: Operation
OPERATION IR User Guide: • IR receiver extension cable should be connected to the IR IN port of the receiver. • The IR emitter extension cable should be connected to the IR OUT port of the transmitter. • The emitter of the IR extension cable should face as close as possible to the IR receiving window of the source device. - Page 6 • LAN switch cascade by using the LAN switch/router to gain unlimited extension. • One to many connection using router/switch over HQ CAT6 cable.
-
Page 7: Specifications
SPECIFICATIONS Voltage/Current DC 5V 1A Power consumption TX: <3.5W RX: <3W HDMI compliance HDMI 1.3 HDCP compliance HDCP 1.4 HDMI input resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Transmission length CAT5 80m / CAT5E 100m / CAT6 120m Input/output cable length <5m (AWG24) IR remote control... - Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
