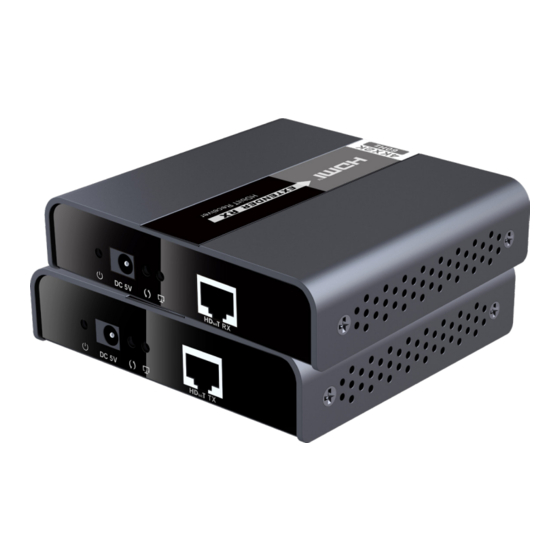

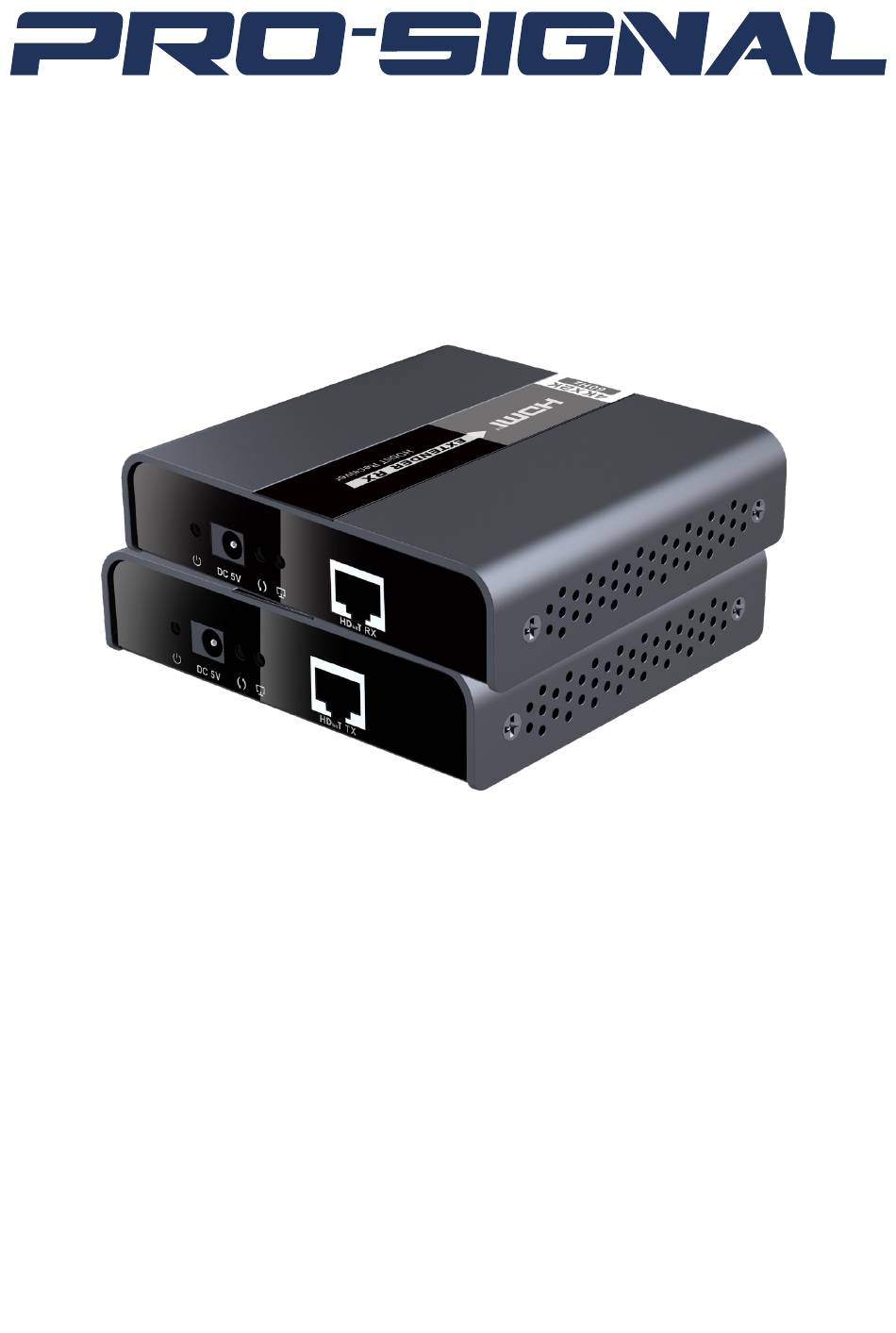

- Page 1 4Kx2K 60Hz HDMI EXTENDER PSG3443...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... - Page 3 INSTALLATION TRANSMITTER HDMI input - connect with source device. IR extender emitter connection Reset button - press to reset the device. Power LED - illuminates when power is on. Power input - connect to PSU 5VDC output jack. Data transmission LED - flashes when transmitting signal. Connection indicator LED - illuminates to indicate connection to receiver is good.
- Page 4 RECEIVER HDMI output - connect with destination device. IR extender receiver connection Reset button - press to reset the device. Power LED - illuminates when power is on. Power input - connect to PSU 5VDC output jack. Data transmission LED - flashes when transmitting signal. Connection indicator LED - illuminates to indicate connection to receiver is good.
-
Page 5: Operation
OPERATION IR User Guide: • IR receiver extension cable should be connected to the IR IN port of the receiver. • The IR emitter extension cable should be connected to the IR OUT port of the transmitter. • The emitter of the IR extension cable should face as close as possible to the IR receiving window of the source device. - Page 6 • One to one connection with IR remote up to 150 metres over HQ CAT6 cable. • One to many connection using router/switch over HQ CAT6 cable.
-
Page 7: Specifications
SPECIFICATIONS Voltage/Current DC 5V 2A Power consumption TX: <8W RX: <10W HDMI compliance HDMI 2.0 HDCP compliance HDCP 2.2 HDMI input resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@24/25/30/60Hz HDMI output resolution 1080p@60Hz, 4Kx2K@30/60Hz Audio formats L & R Stereo Audio Max transfer rate 18Gbps Input/output TMDS signal... - Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
