MAINTENANCE: LED LIGHTS REMOVAL / REPLACEMENT / PLUG & CORDS POSITIONING
Maintenance

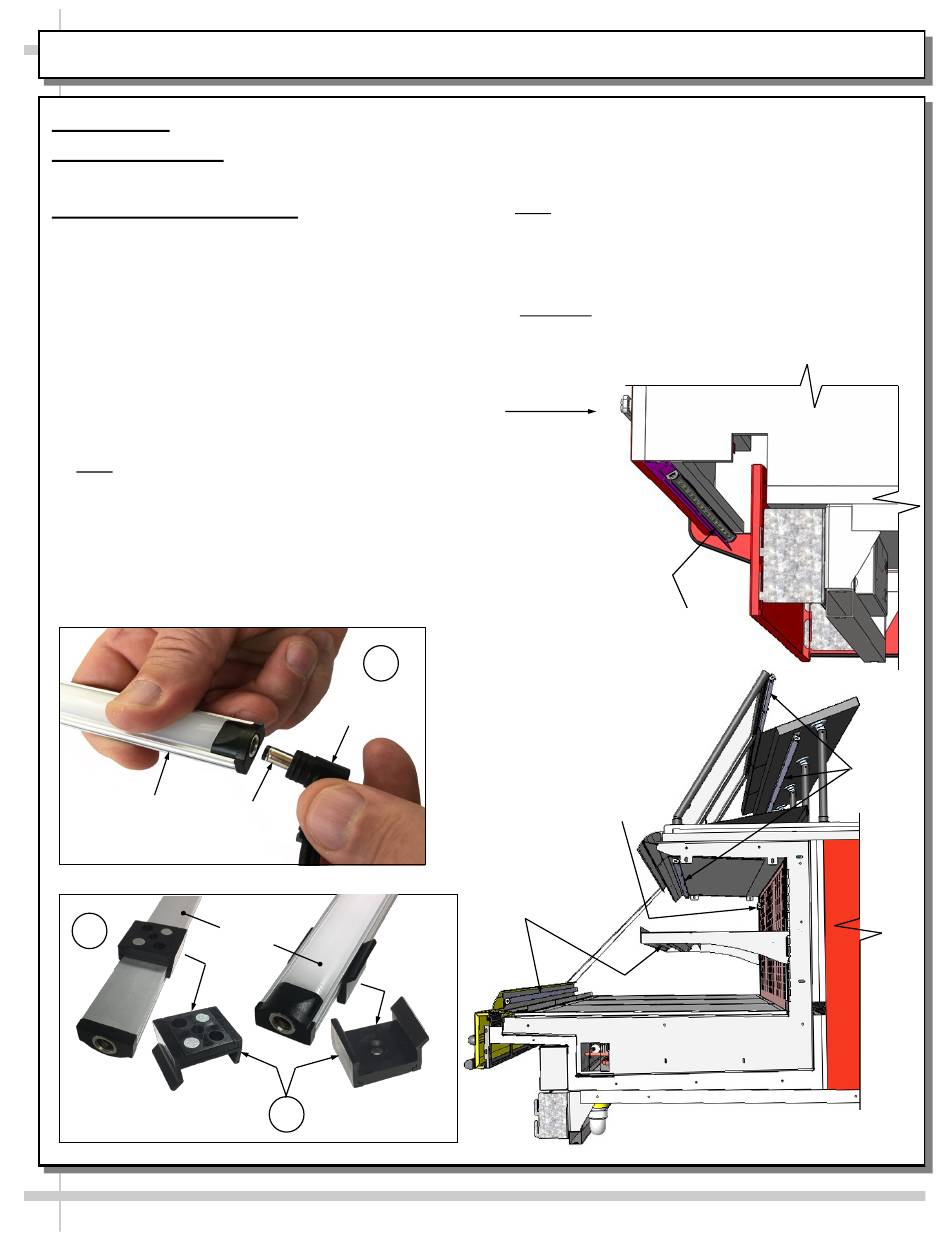

1. Case and Lights
• Lights will power-up when properly field wired.
2. LED Style Light Fixtures
Removal of Faulty LED Lights:
•
Contact Structural Concepts' Technical Service
Department for replacement LED lights.
•
Turn off LED light switch.
•
To remove faulty LED light, follow these steps:
A. Disconnect plug from LED light.
B. Using both hands, grasp LED light assembly
(with its magnetic mounting clips). Pull
downward and off its shelf (or header).
C. Remove magnetic mounting clips from LED
light by pressing against flange part of clip with
thumb.
>> Note: Mounting clips MAY be riveted to shelf or
header. In such instances, simply remove LED light
from mounting clips by pressing against flange part of
clips with thumb.
Replacement of LED lights:
•
Attach magnetic mounting clips onto LED light.
LED
Barrel
Light
Shaped
Insert
B
Lights
Magnetic Mounting
Clip View #1
A
Plug
LED
Magnetic Mounting
C
Clip View #2
•
Adjust magnetic mounting clips so they are equally
spaced on LED light.
•
Reattach LED light assembly to its shelf/header.
•
Position properly in shelf/header.
>> Note: If mounting clips are riveted to shelf (or
header), attach by placing LED in base of clip and then
snapping into clip at FLANGE SIDE.
•
Press plug's barrel-shaped insert deep into LED
light.
•
Important: If plug is not inserted ALL THE WAY IN
the LED light's orifice, the light may not energize.
•
Turn LED light switch back on.
Case Front
Model
GHSSCD336LB.5744
Shown At Right
Thermometer
LED Lights
14
LED Skirt
Lighting
Model
LED
Lights
