9.2 Characteristic curves

The following figures show the Magnitude-frequency and Phase-frequency
characteristic curves of the 151D, in which the horizontal axial unit is Hz,
while the vertical ones are V/(m/s) and deg respectively. The transfer
Function in the low frequency is consistent with that of traditional velocity-
output seismometers which have 120 second natural periods and a 0.707
damping coefficient.

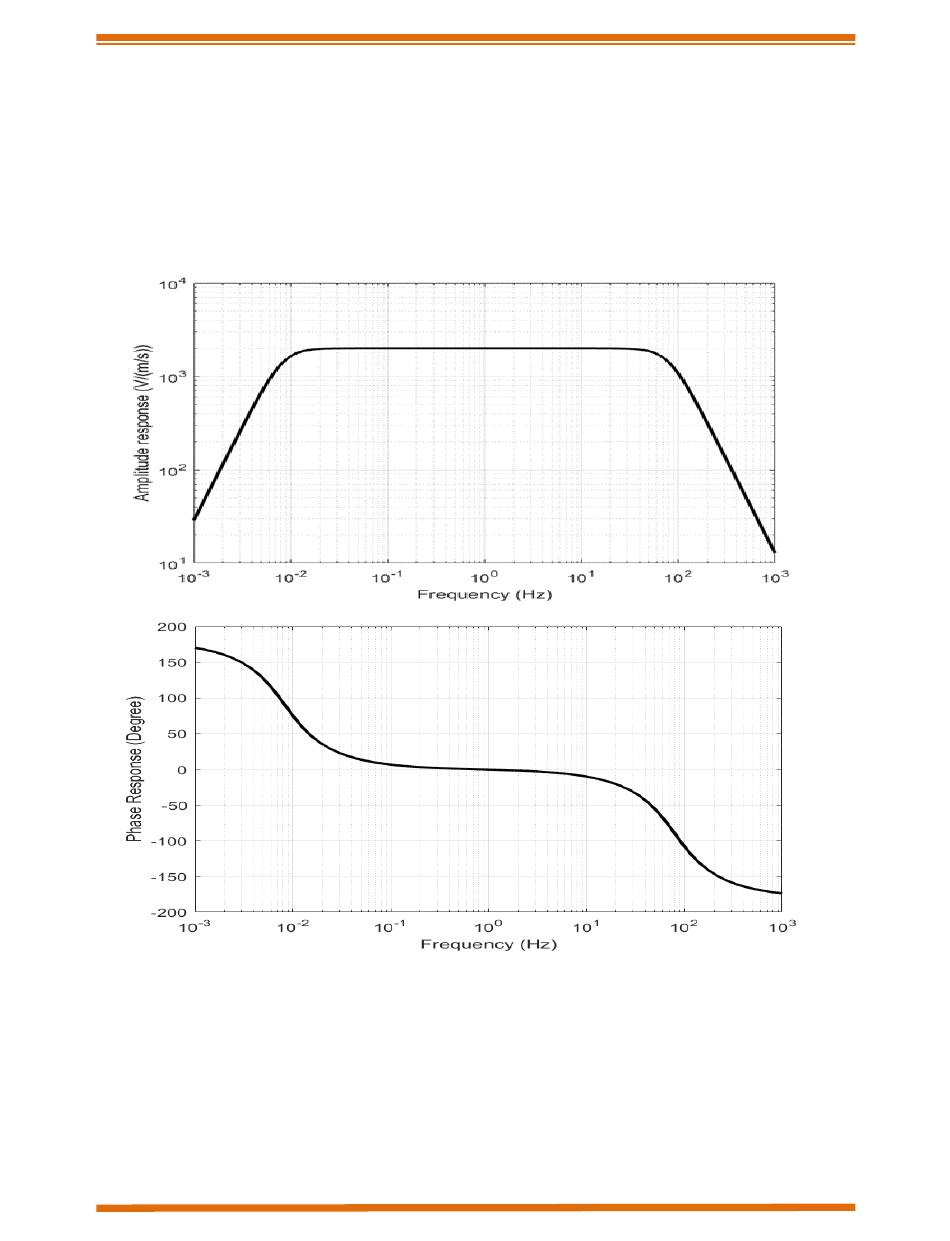

F 9-1 151D-120 B D
IGURE ODE IAGRAMS
