6.5 Check on Data Output/Sensor Operation

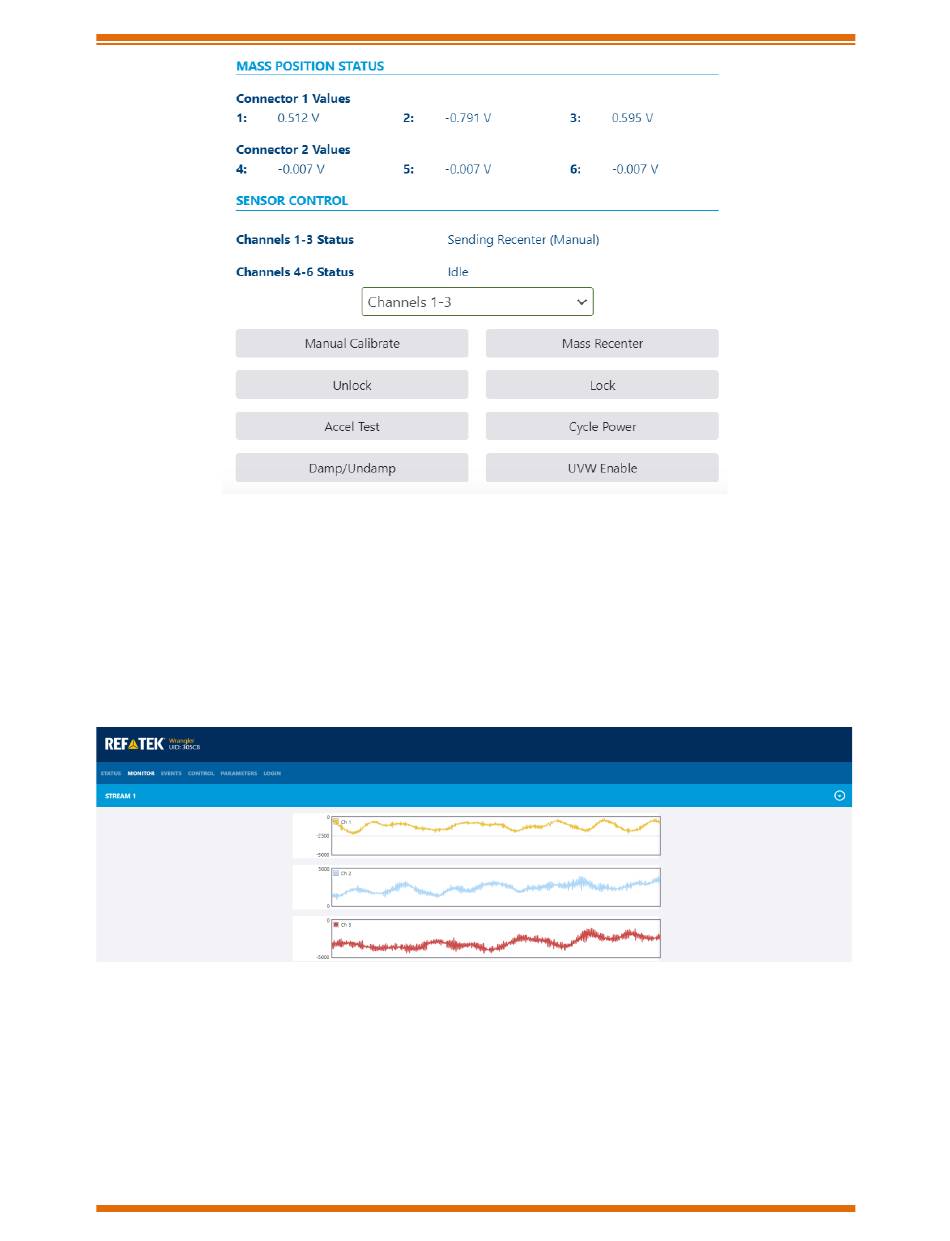

The Monitor page of the Wrangler WebUI can be used to check the 151D
operation.
1. Click on the Monitor button and select the stream activated to record the 151D.
2. Wait for the data image to display .
Note: The display shows the Midpoint of the data and the peak-to-peak
Range of the data in counts
