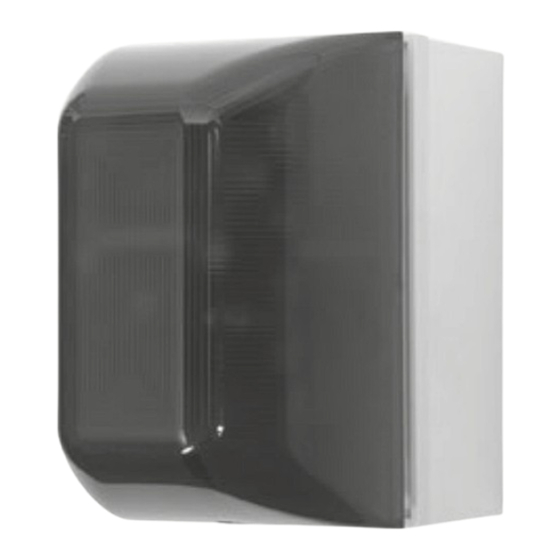

Select-Alert Alarm
Features
· Use as a cabinet alarm, door alarm,
link with push button/switch or as a
burglar alarm.
· Independent strobe and siren timing
of 15 seconds, 30 seconds, 60
seconds or continuous.
· Durable, polycarbonate construction.
· Includes ten high intensity LED's.
· Siren offers 32 user selectable tones.
· Choose piercing 100 or 85 dB alarm.
We protect the things that protect you.
www.acornfiresecurity.com
Mini Controller
STI-SA5000 SERIES
www.acornfiresecurity.com
· For indoor use only.
· Available with amber, green, blue,
red or white lens.
· Includes a tamper switch which
triggers the alarm when unit is
being removed from a wall.
· Low battery indicator.
· Powered by a 9 VDC battery
(not included) or external 12 – 24
volts.
· One Form "C" dry relay contact
output.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STI-SA5000-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STI STI-SA5000-B

Summary of Contents for STI STI-SA5000-B

  • Page 1 Select-Alert Alarm Mini Controller STI-SA5000 SERIES · For indoor use only. Features · Available with amber, green, blue, · Use as a cabinet alarm, door alarm, red or white lens. link with push button/switch or as a · Includes a tamper switch which burglar alarm.

  • Page 2: Table Of Contents

    CONTENTS www.acornfiresecurity.com Warnings and Cautions ....................... page 3 Warranty Information ......................page 3 Dimensions ........................page 3 Specifications ........................page 4 Electronic Setup ........................page 4 Alarm Tones ........................page 5 Alarm Timing and Volume ....................page 5 Terminal Strip Connections ....................page 6 Mounting Options ........................

  • Page 3: Warnings And Cautions

    All units are recommended for indoor use. Unit must be tested periodically to verify the life of battery. STI recommends you change the 9 Volt battery twice a year. When purchasing a Select- Alert, you will need to periodically test the connections to make sure audibles function at a sound level to alert staff.

  • Page 4: Specifications

    OPEN ACTIVE STAND BY NORMALLY SPECIFICATIONS www.acornfiresecurity.com CLOSED Operating Voltage Internal power 9 VDC battery (not included) FORM "C" DRY CONTACTS Operating Temperature 32°F-120° MAIN POWER ALARM CONTROL SWITCH Power Consumption Stand by: 50µA Siren low volume: 85mA Siren high volume: 90mA Strobe: 25mA Siren Volume Low: 85 dB...

  • Page 5: Alarm Tones

    Step 2 - Alarm Tones - S1 www.acornfiresecurity.com 1 2 3 4 5 1 2 3 4 5 ALARM TIMING SIREN STROBE TIMING ALARM TONES 0 0 0 0 0 BUZZ 0 0 0 0 1 STANDARD ALARM BATTERY VOLUME 1 0 0 0 0 SLOW ON/OFF 1 0 0 0 1...

  • Page 6: Terminal Strip Connections

    4.Mount back box to wall using #6 x 1 ¼ in. screws. 5.Mount base plate as shown using (2) #6-32 x 1 in. screws. Note: If not using STI back box, make sure surface will depress tamper switch. DRILL (4) 3/16 in. DIA. HOLES...
  • Page 7 DRILL B) To Key Mount Plate or into Wall without Electrical Box www.acornfiresecurity.com 3/16 DIA HOLES KIT-SA505 KEY SWITCH MOUNTING BRACKET DRILL 3/16 DIA HOLES KIT-SA505 KEY SWITCH H18074 SWITCH LOCK MOUNTING BRACKET #801 KEY H18074 SWITCH LOCK #801 KEY 3 9/32 in.

  • Page 8: Electronics

    Step 6 - Electronics Final Assembly www.acornfiresecurity.com 05000 ELECTRONICS 05050- LENS COLORS Wiring: After A - AMBER mounting circuit B - BLUE G - GREEN board assembly, R - RED W - WHITE connect wires. Refer to terminal strip TAMPER-PROOF SCREW INSTALLED connections (step 4).
