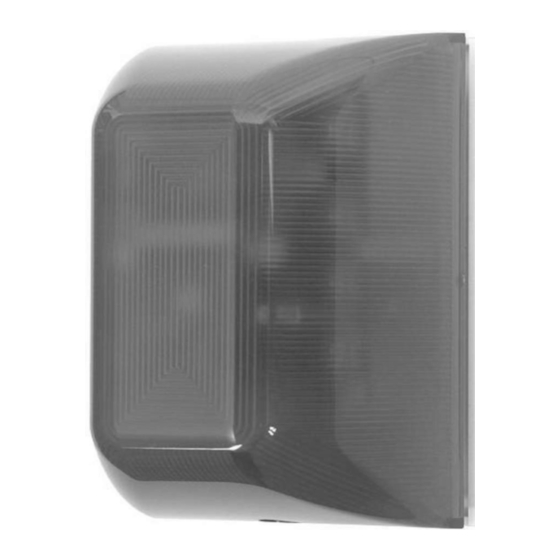

STI-SA5000 SERIES
ALARM MINI CONTROLLER
INSTRUCTION MANUAL
Features:
• This controller can be used as a cabinet
alarm, door alarm, link with push but-
ton/switch or as a burglar alarm.
• Available with amber, green, blue, red
or white lens.
• Durable, polycarbonate construction.
• Includes ten high intensity LED's.
• Siren offers 32 user selectable tones.
• May be set for a piercing 100 or 85 dB
alarm.
Safety Technology International, Inc.
"We rotect The Things That rotect You."
SELECT-ALERT
• For indoor use only.
• Independent strobe and siren timing
of 15 seconds, 30 seconds, 60 seconds
or continuous.
• Includes a tamper switch which trig-
gers the alarm when unit is being re-
moved from a wall.
• Low battery indicator.
• Powered by a 9 VDC battery (not in-
cluded) or external 12 – 30 volts.
• One Form "C" dry relay contact output.
Advertisement
Table of Contents
Related Manuals for STI STI-SA5000 Series
Summary of Contents for STI STI-SA5000 Series
- Page 1 STI-SA5000 SERIES SELECT-ALERT ALARM MINI CONTROLLER INSTRUCTION MANUAL Features: • This controller can be used as a cabinet • For indoor use only. alarm, door alarm, link with push but- • Independent strobe and siren timing ton/switch or as a burglar alarm.
-
Page 2: Table Of Contents
ONTENTS Warnings and Cautions ..............page 3 Warranty Information ................ page 3 Dimensions ..................page 3 Specifications ..................page 4 Electronic Setup .................. page 4 Alarm Tones ..................page 5 Alarm Timing and Volume ..............page 5 Terminal Strip Connections ..............page 5 Mounting Options ................ -
Page 4: Specifications
SPECIFICATIONS OPERATING VOLTAGE Internal power 9 VDC battery (not included) Remote power 12-30 VDC OPERATING TEMPERATURE 32°F -120° POWER CONSUMPTION Stand by: 50µA Siren low volume: 85mA Siren high volume: 90mA Strobe: 25mA SIREN VOLUME Low: 85 dB High: 100 dB ALARM TIMING Independent control for siren and strobe: 15s, 30s, 60s, continuous... -
Page 5: Alarm Tones
STEP 2 - A - S1 LARM ONES 1 2 3 4 5 1 2 3 4 5 0 0 0 0 0 BUZZ 0 0 0 01 STANDARD ALARM 1 0 0 0 0 SLOW ON/OFF 1 0 0 0 1 #3 FAST 0 1 0 0 0 SLOW SIREN... -
Page 6: Mounting Options
4. Mount backbox to wall using #6 x 1 in. screws. 5. Mount base plate as shown using (2) #6-32 x 1 in. screws. NOTE: If not using STI backbox, make sure surface will depress tamper switch. B) T OUNT... -
Page 7: Electronics
C) T INGLE LECTRICAL 19062 SCREW #6-32 x 1 1/2 in. (2) PROVIDED BASE PLATE SINGLE GANG ELECTRICAL BOX STEP 6 - E LECTRONICS INAL SSEMBLY Wiring: After mounting circuit board assembly, connect wires. Refer to terminal strip connections (step 4). Lens installation: Slide lip of lens behind circuit board mounting plate. - Page 8 Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only) E-mail: info@sti-europe.com • Web: www.sti-europe.com Printed in USA Inst. Sht. SA5000, FEB2012...
