IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„MAXIMUS"

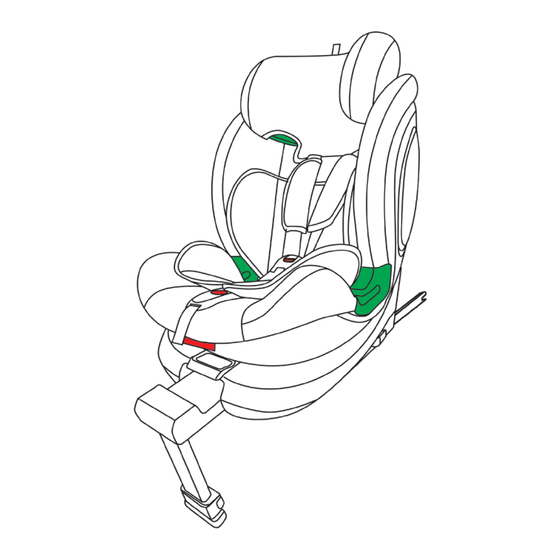

This child restraint system
is manufactured in compliance
with the requirements of Regulation No 129 of the Economic Commission
for Europe of the United Nations (UN/ECE) — Uniform provisions concerning
the approval of enhanced Child Restraint Systems used on board of motor
vehicles (ECRS), the provisions of the Product safety Directive 2001/95/
EU of the European Parliament and The Council as well as the Consumer
Protection Law of Bulgarian Legislation.
Advertisement
Related Manuals for Chipolino MAXIMUS
Summary of Contents for Chipolino MAXIMUS
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „MAXIMUS” This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning...
- Page 2 Child restrained system “MAXIMUS” is suitable for children with height 40-150 cm, approx. age 0-12 years: I-Size universal ISOFIX: 40-105 cm / ≤18 kg. I-Size booster seat: 100-150 cm Installation way Height of child Position of car seat Approved type...
- Page 3 CAUTION ! 1. NEVER INSTALL THE CAR SEAT IN “FORWARD FACING” POSITION BEFORE THE CHILD’S AGE EXCEEDS 15 MONTHS! 2. NEVER INSTALL AND USE THE RESTRAINT SYSTEM IN POSITION “REARWARD” FACING ON A VEHICLE SEAT EQUIPPED WITH ACTIVATED AIR BAG! THIS MAY RESULT IN DEATH OR SERIOUS INJURIES! Diagonal belt of vehicle seat Lap belt of vehicle seat...
- Page 4 CAUTION! WARNINGS! CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM. CAUTION! WHEN YOU INSTALL THE CAR SEAT IN POSITION „REARWARD FACING“, NEVER PLACE IT ON PASSENGER SEAT, EQUIPPED WITH AIRBAG! THIS MAY LEAD TO SERIOUS INJURY OR DEATH! ...
-
Page 5: Product Features
Do not expose the car seat to direct sunlight to prevent the child from burning, deforming the car seat and especially the plastic parts. The car seat does not replace the child's cot or bed. When a child needs a sleep, you have to place him/her in a suitable baby stroller, baby crib or bed. - Page 6 CAUTION! Use the additional soft pad only for children with height ≤ 75 cm Additional soft cushion INSTRUCTIONS FOR USE OF THE CHILD RESTRAINT SYSTEM IMPORTANT! • Follow exactly the instructions and sequence of installation steps and use of the product described in the text and figures of this manual.
- Page 7 CAUTION! Make sure that head rest is fixed by trying to push it slightly down. Before car seat installation in vehicle, adjust the height of the head support according to child’s height. CAUTION! Shoulder belts must go above child’s shoulders. They must not be higher than shoulders nor lower.
- Page 8 Folding of the support leg Rotate the support leg inwards up to 45° (3) and after that you can press and fold the entire module of support leg (4). At the end set the support leg at the bottom of seat (5). INSTALLATION OF CAR SEAT REARWARD FACING For child’s height: 40-105 cm ISOFIX + Support leg + 5-point car seat safety belt...
- Page 9 Support leg installation Press the button for support leg adjustment (1) and at the same time pull down the support leg (2) until it is pressed firmly against the vehicle floor. CAUTION! Support leg is fixed when the indicator shows green color (3). Note: In indicators show red color (4), install the car seat again by following the above-described order of actions.
- Page 10 1. Press the button for seat rotation and rotate the seat at 90° (sideways) to place the child in car seat. By fixing of position, you will hear a click sound. 2. Loosen the belts by pressing the button for adjustment and at the same pull the shoulder belts maximum out.
- Page 11 CAUTION! ISOFIX attachments are fixed only when both of them show green color (4). Note: In indicators show red color (5), install the car seat again by following the above-described order of actions. Shake the installed car seat. If it is unstable or some of the ISOFIX attachments is released, install the car seat again.
- Page 12 1. Press the button for seat rotation and rotate the seat at 90° (sideways) to place the child in car seat. By fixing of position, you will hear a click sound. 2. Loosen the belts by pressing the button for adjustment and at the same pull the shoulder belts maximum out.
- Page 13 (10) 1. Remove the additional soft cushion (1). Loosen the belts by pressing the button for adjustment and at the same pull the shoulder belts maximum out. Unlock the belts. 2. Place the shoulder belts behind the fabric cover of head support, open the cover of compartment for buckle storage.
- Page 14 INSTALLATION OF CAR SEAT FORWARD FACING For child’s height: 100-150 cm 3-point vehicle safety belt 1. Remove the additional soft cushion (1). Loosen the belts by pressing the button for adjustment and at the same pull the shoulder belts maximum out. Unlock the belts. 2.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap Fabric cover and soft pads may be hand washed at 30 С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 16 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse № 1 www.chipolino.com...
