IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„MY SIZE"
This child restraint system
is manufactured in compliance
with the requirements of Regulation No 129 of the Economic Commission
for Europe of the United Nations (UN/ECE) — Uniform provisions concerning
the approval of enhanced Child Restraint Systems used on board of motor
vehicles (ECRS), the provisions of the Product safety Directive 2001/95/EU of
the European Parliament and The Council as well as the Consumer Protection
Law of Bulgarian Legislation.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Chipolino MY SIZE
Summary of Contents for Chipolino MY SIZE

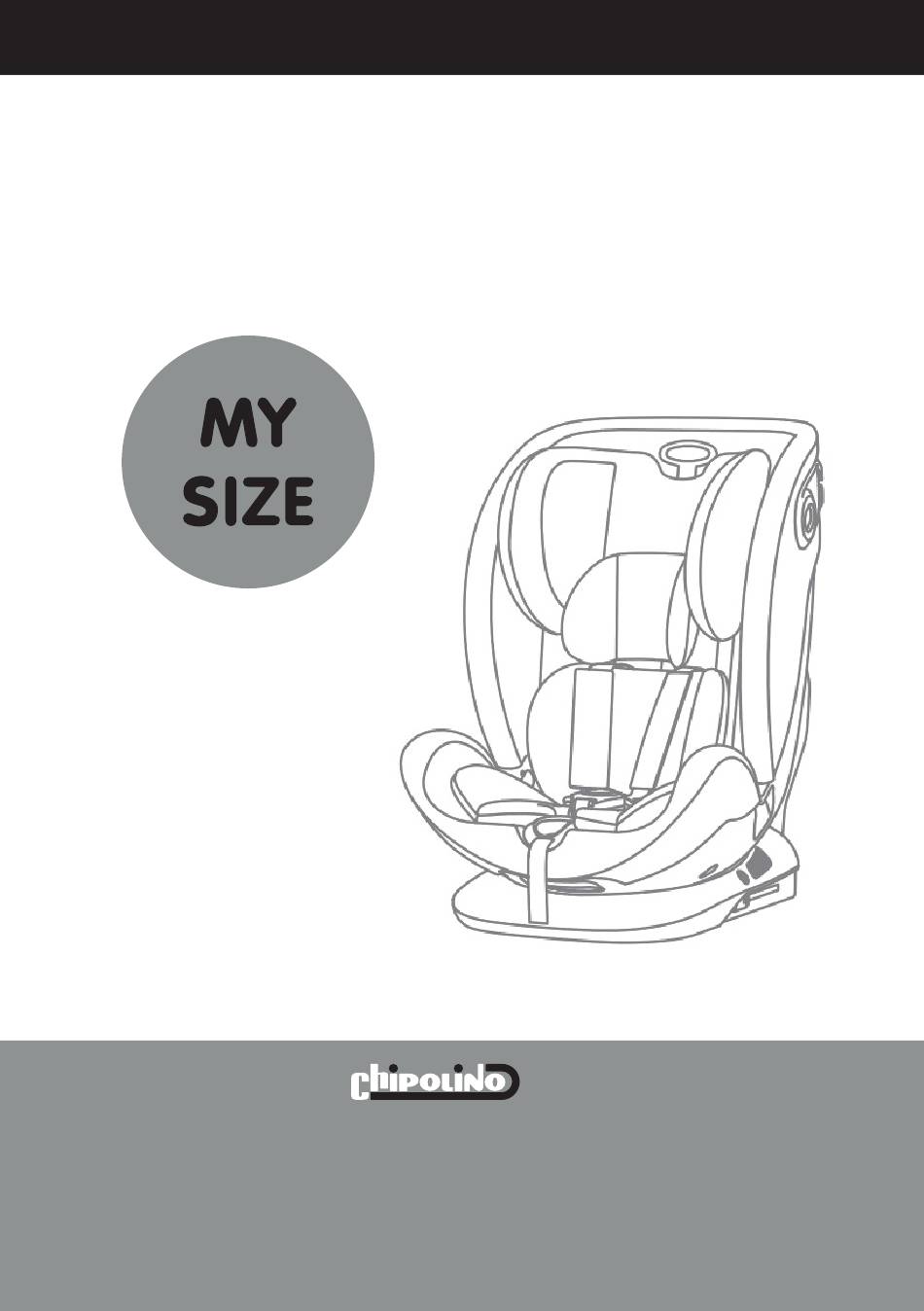

- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „MY SIZE” This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning...

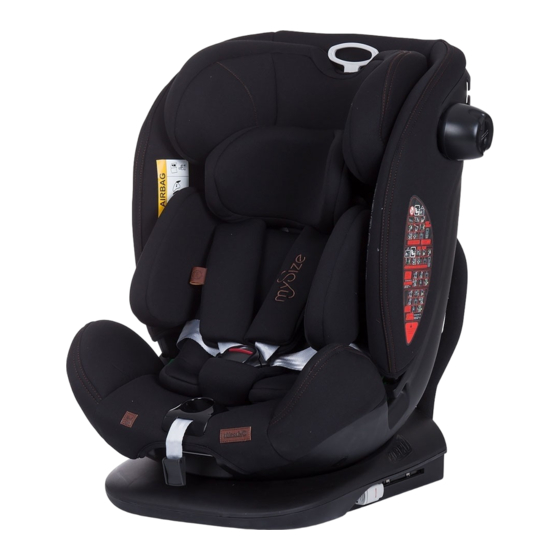

- Page 2 Car seat “MY SIZE” is suitable for children with height 40-150 cm, age 0-12 years. Position of car seat Child’s height Approx age of child Car seat installation ISOFIX Top tether REARWARD facing 40-105 cm 0-4 years Car seat safety belt...
- Page 3 DO NOT FORGET THAT NO RESTRAINT SYSTEM CAN PROVIDE ABSOLUTE PROTECTION IN CASE OF A CRASH OR ROAD ACCIDENT! DRIVE WITH CARE WHEN THERE IS A CHILD IN YOUR VEHICLE! IN ORDER TO ENSURE THE SAFETY OF YOUR CHILD, FOLLOW EXACTLY THE INSTRUCTIONS AND SAFETY RECOMMENDATIONS IN THIS MANUAL! MISUSE OF THE CAR SEAT WILL CONTRIBUTE TO REDUCING ITS SECURITY AND SAFETY FEATURES! FAILURE OF THE GUIDELINES OF THIS...
- Page 4 Do not install on seat, equipped with air bag. Place the car seat ONLY on a vehicle seat with a 3-point seat safety belt. CAUTION! WARNINGS! CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM.
-
Page 5: Product Features
Do not use this car seat without its seat cover and do not replace it with a new one, unless supplied by the manufacturer. The fabric parts are integral parts of the restraint system and its safety features! Any luggage or other objects that could cause injury in the event of a collision must be well secured. Remove or secure at a safe distance from the seat and child any luggage that may cause injury in the event of a sudden stop or accident while driving. -
Page 6: Main Parts
MAIN PARTS Handle to adjust the head support’s height Adjustable head support Fabric cover Soft pad Shoulder belts 5-point safety belt Strap for belt’s length adjustment Button to adjust Level to rotate the belt’s length the seat Top tether Side protection Buckle for top tether adjustment Cover’s lock... - Page 7 CHILD’S HEIGHT 40-105 cm INSTALLATION OF THE CAR SEAT IN “REARWARD FACING” POSITION ISOFIX + TOP TETHER + 5-POINT BELT OF CAR SEAT attachmnet point ISOFIX guide click...
- Page 8 “щрак”...
- Page 9 1. Pull the handle to adjust the recline. 2. Set in required position – 1, 2, 3, 4. 3. Pull the level and adjust the seat in REARWARD facing position (fig. 4). 4. Select the lying position correcponding with REARWARD facing (fig 4). ATTENTION! Make sure that your vehicle is equipped with ISOFIX attachment points! 5. Install the ISOFIX guide to the ISOFIX attachmnet point of vehicle. 6. Release the ISOFIX anchors and set them maximum out.
- Page 10 ATTENTION! Soft pad For child’s height: • 40 up to 75 cm use soft pad of the seat and 3D pillow of the waist. • 76 up to 80 cm use only the soft pad of the seat. 3D pillow for the waist CHILD’S HEIGHT 76-105 cm INSTALLATION OF THE CAR SEAT IN “FORWARD FACING”...
- Page 12 Soft pad 1. ATTENTION! Make sure that your vehicle is equipped with ISOFIX attachment points! Install the ISOFIX guide to the ISOFIX attachmnet point of vehicle. 2. Release the ISOFIX anchors by pressing the ISOFIX buttons . Set them maximum out. 3. Insert ISOFIX anchors of car seat to ISOFIX attachment point of vehicle. 4. You must hear click sound by fixing.
- Page 13 CHILD’S HEIGHT 100-150 cm INSTALLATION OF THE CAR SEAT IN “FORWARD FACING” POSITION 3-POINT BELT OF VEHICLE “click” lap belt click...
- Page 14 1. Press the button at central buckle to release the belt. 2. Lift the upper part fo the seat cover as figure shows. 3. Press the button for belts adjustment and at the same time pull the shoulder belts towards you. 4. Unfasten the down part of the seat cover and place it down as figure shows. 5. Fix the belts and cover them with both parts of the seat cover. 6. Place the central buckle in car seat’s slot. 7.
- Page 15 click ATTENTION! Make sure that your vehicle is equipped with ISOFIX attachment points! 1. Hide the car seat belts and remove the soft pad. 2. Set the recline is position 1. 3. Install the ISOFIX guide (option) to the ISOFIX attachmnet point of vehicle. 4. Release the ISOFIX anchors by pressing the ISOFIX buttons . Set them maximum out.
-
Page 16: Care And Maintenance
REMOVING AND PLACING THE SEAT COVER Soft pad 1. Hide the car seat belts and remove the soft pad. 2. Remove the fabric cover of head support. 3. Unfasten and remove the fabric cover under the head support. 4. Remove all the rest of seat fabric cover. To place the cover back, do the same actions in opposite order. - Page 17 List of vehicles that are suitable for installation of child restraint system “MY SIZE” as booster seat for specific vehicle. 3-point belt Vehicle Model ISOFIX of the vehicle...
- Page 18 3-point belt Vehicle Model ISOFIX of the vehicle...
- Page 19 3-point belt Vehicle Model ISOFIX of the vehicle...
- Page 20 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse № 1 www.chipolino.com...
