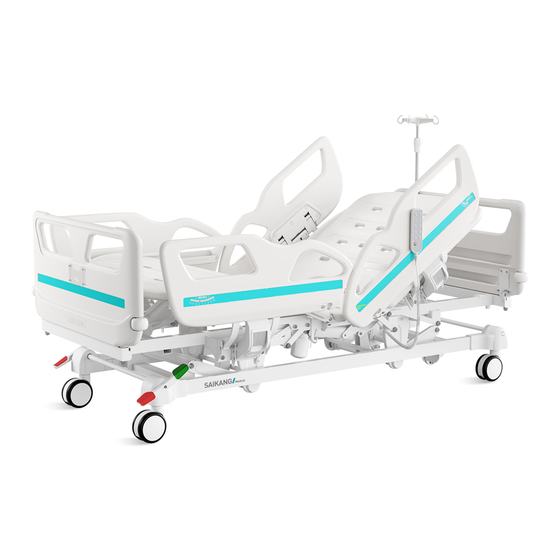

Electric hospital bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LETTO OSPEDALIERO ELETTRICO
ELECTRIC HOSPITAL BED
LIT MÉDICALISÉ ÉLECTRIQUE
CAMA ELÉCTRICA DE HOSPITAL
MANUALE D'USO – USER MANUAL – MODE D'EMPLOI – MANUAL DE USO
• È necessario segnalare qualsiasi incidente grave verificatosi in relazione al dispositivo medico da noi fornito al fabbricante e all'autorità
competente dello Stato membro in cui si ha sede.
• All serious accidents concerning the medical device supplied by us must be reported to the manufacturer and competent authority of the member
state where your registered office is located.
• Il est nécessaire de signaler tout accident grave survenu et lié au dispositif médical que nous avons livré au fabricant et à l'autorité compétente de
l'état membre où on a le siège social.
• Es necesario informar al fabricante y a la autoridad competente del Estado miembro en el que se encuentra la sede sobre cualquier incidente
grave que haya ocurrido en relación con el producto sanitario que le hemos suministrado.
V8V8C (Gima 44746)
Jiangsu Saikang Medical Equipment Co.,Ltd
No. 35 Lehong Road, Modern Agriculture Demonstration
Park, Zhangjiagang City, Jiangsu Province, China
Made in China
SUNGO Europe B.V.
Fascinatio Boulevard 522, Unit 1.7,
2909VA Capelleaan den IJssel, The Netherlands
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
1060hPa
95%
%
500hPa
0%
+40˚C
-10˚C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V8V8C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gima V8V8C

Summary of Contents for Gima V8V8C

  • Page 1 • Es necesario informar al fabricante y a la autoridad competente del Estado miembro en el que se encuentra la sede sobre cualquier incidente grave que haya ocurrido en relación con el producto sanitario que le hemos suministrado. V8V8C (Gima 44746) 1060hPa +40˚C...

  • Page 2: Table Of Contents

    3. SPARE PARTS REPLACEMENT AND MAINTENANCE ...... 5  This manual is applicable to V8V8C electric hospital bed. It contains theinstallation 3.2 Side rail gas spring disassembly and replacement ......6 method, operating instructions and maintenance check points.

  • Page 3: Product Installation Guide

    ENGLISH ► Back Rest 30 Degree Position Smart Stop ► Emergency Stop Button ► Manual CPR ► Weighing system as optional (extra price) Pole 1. PRODUCT INSTALLATION GUIDE 1.1 LIST OF STANDARD ACCESSORIES Shim φ12 After opening the packing case, please check whether the following parts are com- Jam nut M12 plete: Table a:...

  • Page 4: Bed Operation

    ENGLISH The figures below show two states of the wheels: Secondary hook part Primary hook part Locked state Unlocked state 2.2 SIDE RAIL USAGE (The picture is for reference only, the actual product shall prevail.) To raise side rail: hold the rail and pull it up, when you hear “click” sound means the rail is locked, see the pic: prevision 2.

  • Page 5: Hand Control Panel Usage (Optional)

    ENGLISH 1. Patient mobilization 2. Raise back rest 3. Lower back rest 4. Raise back+knee rest 5. Lower back+knee rest 6. Raise knee rest 7. Lower knee rest 8. Raise bed 9. Lower bed 10. Power on/off 1. Raise back rest 14.

  • Page 6: Side Rail Gas Spring Disassembly And Replacement

    ENGLISH Use 10”inch wrench unscrew the bolt,pull out the screw, flat spring wa- shers, brake pedal,plastic retaining ring, hexagonal rod, etc, replace with spare ca- ster, place the bolt back into the socket, tighten the nut. Perno di bloccaggio di tipo R Perno di bloccaggio di tipo R 3.2 SIDE RAIL GAS SPRING DISASSEMBLY AND REPLACEMENT (the picture is for reference only)

  • Page 7: Test Method For Unresponsive Foot Board Control Panel

    ENGLISH the open state, and there is no need to rotate it; D. Conclusion: after the above three steps are finished, test the guardrail, if there is still no response, go back to step 2. Open Pressed state Pic. 1-4 C.

  • Page 8: Bed Maintenance

    ENGLISH rioration. Pic. 2-2 Step 3: Check if the controller plug is loose Note: 1. Unplug power cable before cleaning and maintenance A. Check the content: controller plug is loose; 1. During the cleaning, DO NOT splash water to prevent short circuit and electric shock.

  • Page 9: Packaging, Transportation And Storage Conditions

    Relative humidity: ≤ 95％ V21 foot board LGPFU101TS4 17 750*35*0.4 guardrail sticker c) Atmospheric pressure: 500hPa ～ 1060hPa Guardrail LGPQT101TS0 24 18-58-168-35N ELECTRIC VARIABLE HEIGHT BED – V8v8c damper(white) Supply voltage 100-230V a.c. 30-50 BYKBGKM0280 6 30-50(plastic) drainage hook Network frequency...

  • Page 10: Symbol Explanation

    V8v8c is used exceeds the above supply, it is recommended that the RF compliance level, make sure to monitor if the V8v8c operates appropriately. If...
  • Page 11 Disposal: The product must not be disposed of along with other domestic waste. The users must dispose of this equipment by bringing it to a specific recycling point for electric and electronic equipment. GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies.
