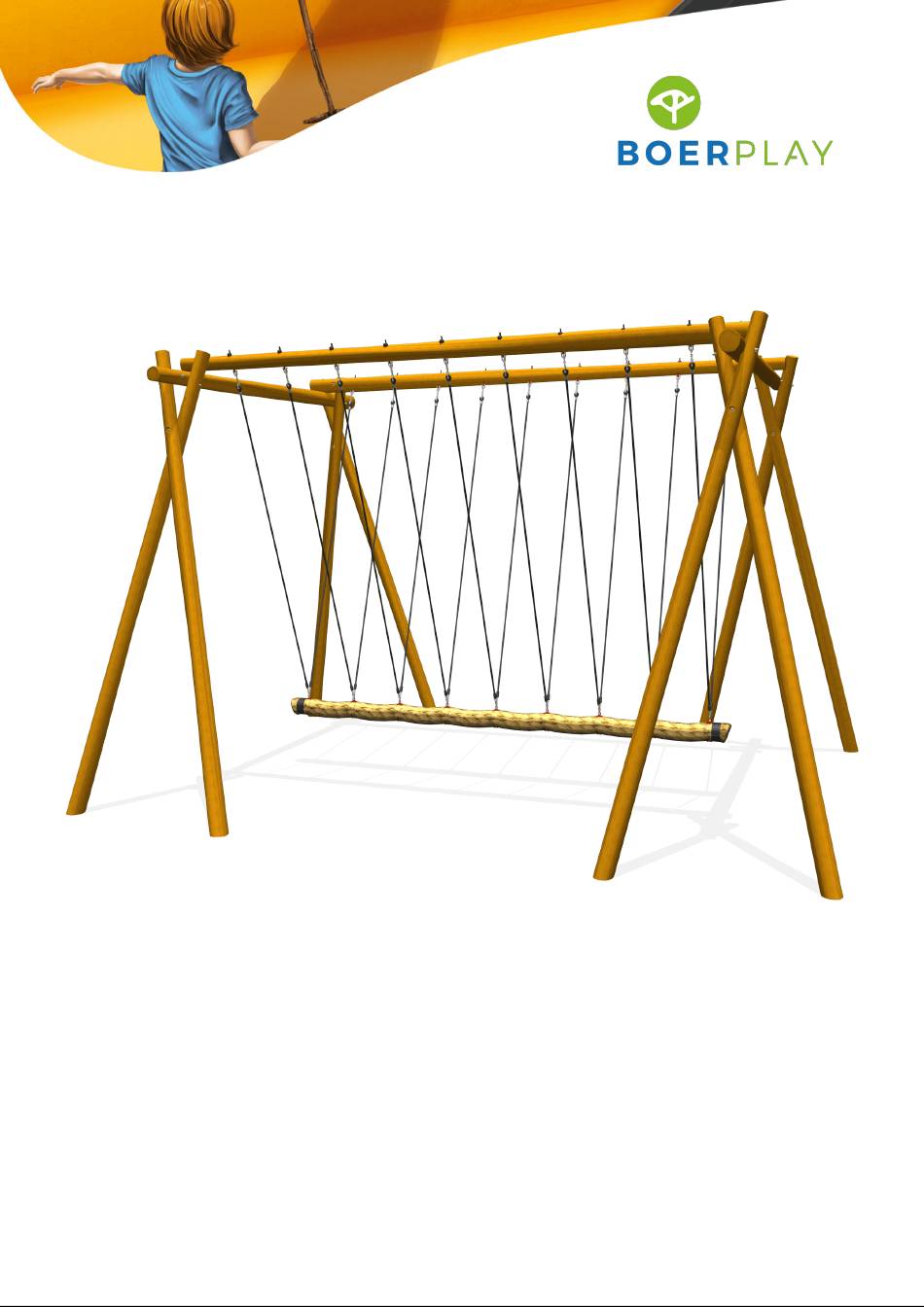

- Page 1 Family Swing PSTE000.019...
- Page 2 4,68 m Altijd > 0,40 m Always > 0,40 m Benaming TOE PST 000 019 C Familie schommel Title Tekening Opmerking Robinia Drawing Comment Datum Hoofdafmetingen Main dimensions 16-5-2014 Date...
- Page 3 2,75 m 2,75 m 1,75 m 5,50 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE PST 000 019 C Familie schommel Title Tekening Opmerking Robinia Drawing Comment Datum Obstakelvrije zone Obstacle free zone 16-5-2014 Date...
- Page 4 2,02 m 4,15 m 1,53 m 3,20 m 1,54 m 4,12 m Grondmarkering Ground level marker 0,82 m Benaming TOE PST 000 019 C Familie schommel Title Tekening Opmerking Robinia Drawing Comment Datum Bodemplan Groundplan 16-5-2014 Date...
- Page 5 Geleverde delen: Supplied Parts: A - A-Frame (4x) A - A-frame (4x) B - Grondbalken (8x) B - Groundbeams (8x) C - Crossbeam (2x) C - Dwarsligger (2x) D - Langsligger (2x) D - Stringer (2x) E - Schommeltouw met kabels E - Swing Rope with cables Mountings kits: Bevestiging sets:...
- Page 6 LOGBOOK Type indication Adventure Play Article number PSTE000.019 Product Name Family Swing Maximum fall height 2,3 m Construction year 2023 Certificate 025859 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 A ( 1:5 ) D-sluiting dwars op de schommelrichting Shackle square to the direction of swinging Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 200, RVS A2-70 Draadeind+borgm.+ringen+dop M12, L= 240, RVS A2-70 Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 Borgmoer M12 - VZ 8.8 Sluitring...
