F
M
IELD
AG
Standard Model
For use in non-hazardous locations
HL Model
For use in hazardous locations:
• Class I, Division 2, Groups A-D, T5
• Class I, Zone 2 IIC T5
WARNING!
!
Incorrect installation or removal of
meters can result in serious injury
WARNING
or death . Read the instructions in
this guide on the proper procedures
carefully.
Any person installing, inspecting, or maintaining
a McCrometer flowmeter should have a working
understanding of piping configurations and
systems under pressure.
Before adjusting or removing any meter,
be certain the system has depressurized
completely.
Be careful when lifting meters. Meters can cause
serious injury if lifted incorrectly or dropped.
®

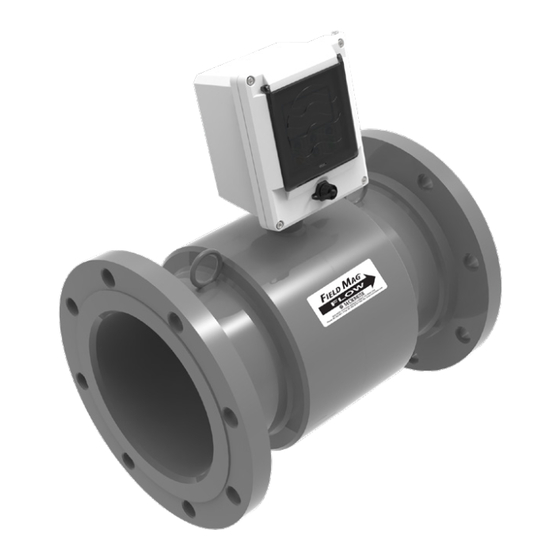

Electromagnetic Flow Meter
Field Mag 5000
Quick Start Installation Guide
About This Quick Start Guide
This Quick Start Guide is a supplement to the
Installation, Operation and Maintenance manual
supplied with this meter. It is intended to be
a quick reference for the basic installation and
reading of the Field Mag.
It is designed to provide installation instructions
when the location of the sensor installation has
been predetermined.
Refer to the meter manual (30126-46 Field Mag
5000 IOM manual) for information on these topis:
•
Preparation and planning for installation
•
Site location
•
Software configuration
•
Detailed information on external connections,
external power, outputs
About This Quick Start Guide . . . . . . . . . . . 1
1 .
Check Shipping Crate Contents . . . . . . 2
2 .
Check Serial Numbers . . . . . . . . . . . . 2
3 .
Pipe Run Requirements . . . . . . . . . . . 2
4 .
Sensor Position and Location . . . . . . . 2
5 .
Flow Meter Installation . . . . . . . . . . . 3
6 .
Remote Mount Installation . . . . . . . . . 4
7 .
and Conduit . . . . . . . . . . . . . . . . . . 4
8 .
Grounding . . . . . . . . . . . . . . . . . . . 5
9 .
Operation . . . . . . . . . . . . . . . . . . . . 6
Page 1
30126-63 Rev. 1.0 | 02JAN2024
Advertisement
Table of Contents
Related Manuals for McCrometer Field Mag 5000
Summary of Contents for McCrometer Field Mag 5000
- Page 1 Sensor Position and Location . . . . . . . 2 a McCrometer flowmeter should have a working Flow Meter Installation . . . . . . . . . . . 3 understanding of piping configurations and systems under pressure.
- Page 2 When uncrating the Field Mag, any damage due to rough or improper handling should be reported The meter needs to be located a minimum to the transportation firm and McCrometer. If for distance before and after flow disturbances, any reason it is determined that the unit or parts...
- Page 3 IELD ® Sensor Orientation The following installation recommendations should be followed: Horizontal installation In horizontal pipe runs, the meter should be installed so Flow direction that the junction box is vertical insuring the electrodes are positioned to prevent coating by sediments or loss of electrode contact due to air bubbles.
- Page 4 IELD ® 6 . Remote Mount Installation You will need to prepare the location where you will so will alter the calibration accuracy between the install the remote converter. The location cannot meter and the converter and void the warranty. be further from the flow meter than the length Install the flow meter as required.
- Page 5 IELD ® ProComm Converter Wiring Connection All connections are made on the terminal board. To access the terminal board, loosen the four screws on the front of the converter and lift the converter open. All electrical cables enter the converter through compression fittings located on the side of the converter.
- Page 6 See the ProComm 5000 IOM manual, 30126-48. Copyright © 2024 McCrometer, Inc. All printed material should not be changed or altered without permission of McCrometer. Any published pricing, technical data, and instructions are subject to change without notice. Contact your McCrometer representative for current pricing, technical data, and instructions.
