14
TERMINAL BOARD (M-SERIES CONVERTER)
All electrical cables enter the converter through compression fittings located on the side
of the converter. Ensure that all compression glands are properly tightened and all unused
fittings are plugged so the case remains sealed.
All connections are made on the terminal board. To access the terminal board, loosen the
four screws on the back of the converter to remove the rear cover.
CAUTION! Always disconnect the power cord before attempting any
!
electrical connections.
ELECTRODE
INPUT
RS485
4-20mA
OUT 3
E1
E2
C
SC
+
-
B
A
+
-
E
1 2 3 4 5 6 7 8 9 10
21 22 23 24 25 26
11 12 13 14 15 16 17 18 19 20
-
SC
B1
B2
SC
+
CE
E
C
E
-
COILS
24V
OUT1
OUT2
24V
INP2
DIP switch for block
LEGEND:
levels enabling
SC: Cable shield, electrically connected to ground and to the housing.
CTS: Input terminal of the signal "CLEAR TO SEND" of the RS232 port.
RD: Input terminal of the signal "RECEIVE DATA" of the RS232 port.
TD: Output terminal of the signal "TRASMIT DATA" of the RS 232 port.
SG: Terminal "SIGNAL GROUND" common to all signals of the RS232 port.
C: Terminal connected to the collector of the transistor of the on/off output.
IF2
socket
Signaling
LED
16
www.mccrometer.com
15
282L WIRING DIAGRAM
Terminal Block Assignments
Terminal
Wire Color
#1
Blue
#2
White
#3
Black
#11
Black
RS 232
#12
Red
CTS RD TD SG
C
#13
Yellow
27 28 29 30 31 32
1
2
3
4
SC
+
E
C
OUT 4
-
+
4..20mA
Cable Diameter:
Single Cable (36002): 0.250"
Power
supply
Note: M-Series wiring diagram is used in this
example. Additional wiring diagrams can
be found in the converter IOM or inside the
converter cover.
CONTACT INFORMATION
3255 WEST STETSON AVENUE • HEMET, CALIFORNIA 92545 USA
TEL: 951-652-6811 • 800-220-2279 • FAX: 951-652-3078 Printed In The U.S.A. Lit. 30120-66, Rev. 1.2 / 8-18-17
Copyright © 1997-2013 McCrometer, Inc. All printed material should not be changed or altered without permission of
McCrometer. Any published technical data and instructions are subject to change without notice. Contact your McCrometer
representative for current technical data and instructions.
FPI-Mag™ is a trademark of McCrometer, Inc.
Connected To
Sensing electrode
Sensing electrode
Reference ground
Magnet shield /
overall cable shield
Coil
Coil
19
20
21
1 - SPI Mag Sensor
2 - Long threaded retaining rods
1 - Converter (M Series, L Series or ABB)
1 - Calibration Certificate
1 - SPI Mag Installation, Operation
and Maintenance Manual
1 - Converter Installation, Operation
and Maintenance Manual
2
Verify the system serial numbers on both the sensor and converter
match to ensure a properly calibrated system.
The Meter Serial Number is etched onto the sensor and can also be
located on a tag near the end of the sensor cable
Meter Serial Number
The tag on the side of the converter has the Converter Model Number,
the Converter Serial Number and the Meter Serial Number.
Converter Model: 880003xxx
Converter SN: E12-34567
Meter Model: FPI 395L
Meter SN: MI12-0448
http://www.mccrometer.com
Quick Start Guide
1
CONTENTS
2 - 3/4" reversible ratchet
!
wrenches
1 - Pipe thread sealant
1 - Compression Seal Assembly
4 - Hex nuts (3/8")
2 - Locking cotter pins
!
1 - Power cord (8' , 115 VAC)
!
SERIAL NUMBERS
!
!
McCrometer recommends using a sensor insertion tool (P/N 75031) to
Meter Serial Number
help with inserting the sensor and to avoid any damage to the sensor.
Place the profiling
insertion tool over
the captive nuts and
lock it into place with
spring locks located
C o n v e r t e r
Model Number
on the bottom of
the tool.
®
provided
C
US
rotate the high gear
shaft clockwise until
C o n v e r t e r
the bottom of the
Serial Number
Meter Serial Number
sensor reaches the far
wall of the pipe.

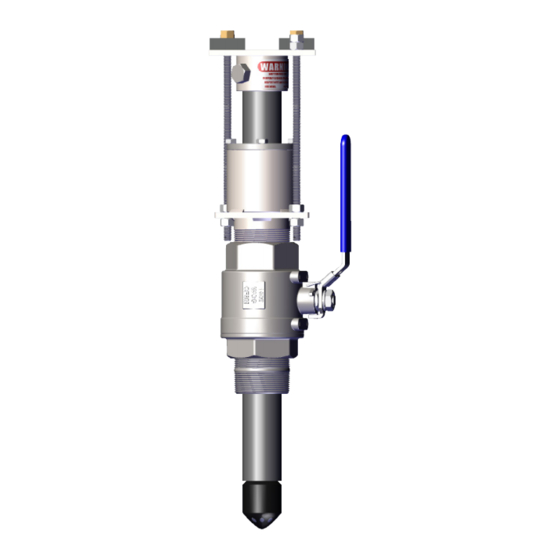

Model 282L
Single Profile Insertion
Electromagnetic Flow Meter
30120-66 Rev. 1.2
August 18, 2017
3
SAFETY WARNINGS
WARNING! Incorrect installation or removal of SPI
Mag meters can result in serious injury or death. Read
the instructions in this manual on the proper procedures
carefully.
WARNING! Never enter a confined space without
testing the air at the top, middle and bottom of the
space. The air may be toxic, oxygen deficient or explosive.
Do not trust your senses to determine if the air is safe. You
cannot see or smell many toxic gases.
WARNING! Never enter a confined space without the
proper safety equipment. You may need a respirator, gas
detector, tripod lifeline and other safety equipment.
WARNING! Never enter a confined space without
standby/rescue personnel within earshot. Standby/
rescue personnel must know what action to take in case
of emergency.
WARNING! Carefully read all safety warning tags
attached to the meter.
4
SENSOR INSERTION TOOL
3/8" Insertion Tool (Part Number 75031) for
TSL < 72" and pressure < 200 psi
High Gear Shaft
Using the
wrench
Low Gear Shaft
